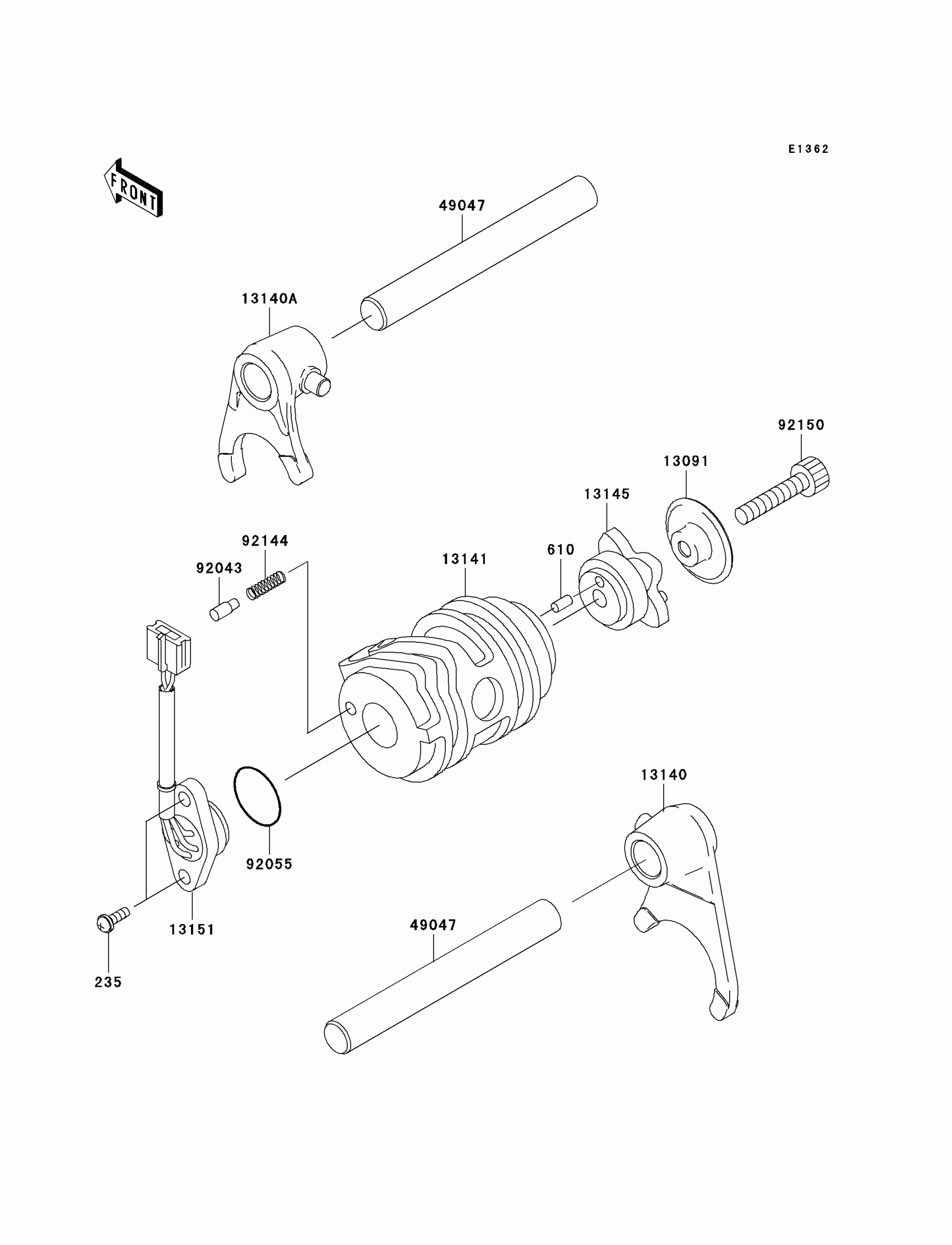

Kawasaki KLX110 Gear Change Drum/Shift Fork(s)(A1) Diagram

Description

Price

235

SCREW-PAN-WP-CROS

235B0514

$3.51

610

ROLLER,4X8

610A0408

$4.31

13091

HOLDER

13091-1086

Unavailable

13140

FORK-SHIFT

13140-1263

Unavailable

13140A

FORK-SHIFT

13140-1289

Unavailable

13141

DRUM-CHANGE

13141-1226

Unavailable

13145

CAM-CHANGE DRUM

13145-1081

$57.12

13151

SWITCH-COMP

13151-1082

Unavailable

49047

ROD-SHIFT

49047-1058

$10.97

92043

92043-1385

$5.69

92055

RING-O,27.7X2.4

92055-091

$6.22

92144

SPRING

92144-1245

$4.26

92150

BOLT,SOCKET,6X30

92150-1433

$4.87

Kawasaki KLX110 Gear Change Drum/Shift Fork(s)(A1) Diagram

SCREW-PAN-WP-CROS

ROLLER,4X8

HOLDER

FORK-SHIFT

FORK-SHIFT

DRUM-CHANGE

CAM-CHANGE DRUM

SWITCH-COMP

ROD-SHIFT

PIN

RING-O,27.7X2.4

SPRING

BOLT,SOCKET,6X30
