2005 Kawasaki KLX110 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2005 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

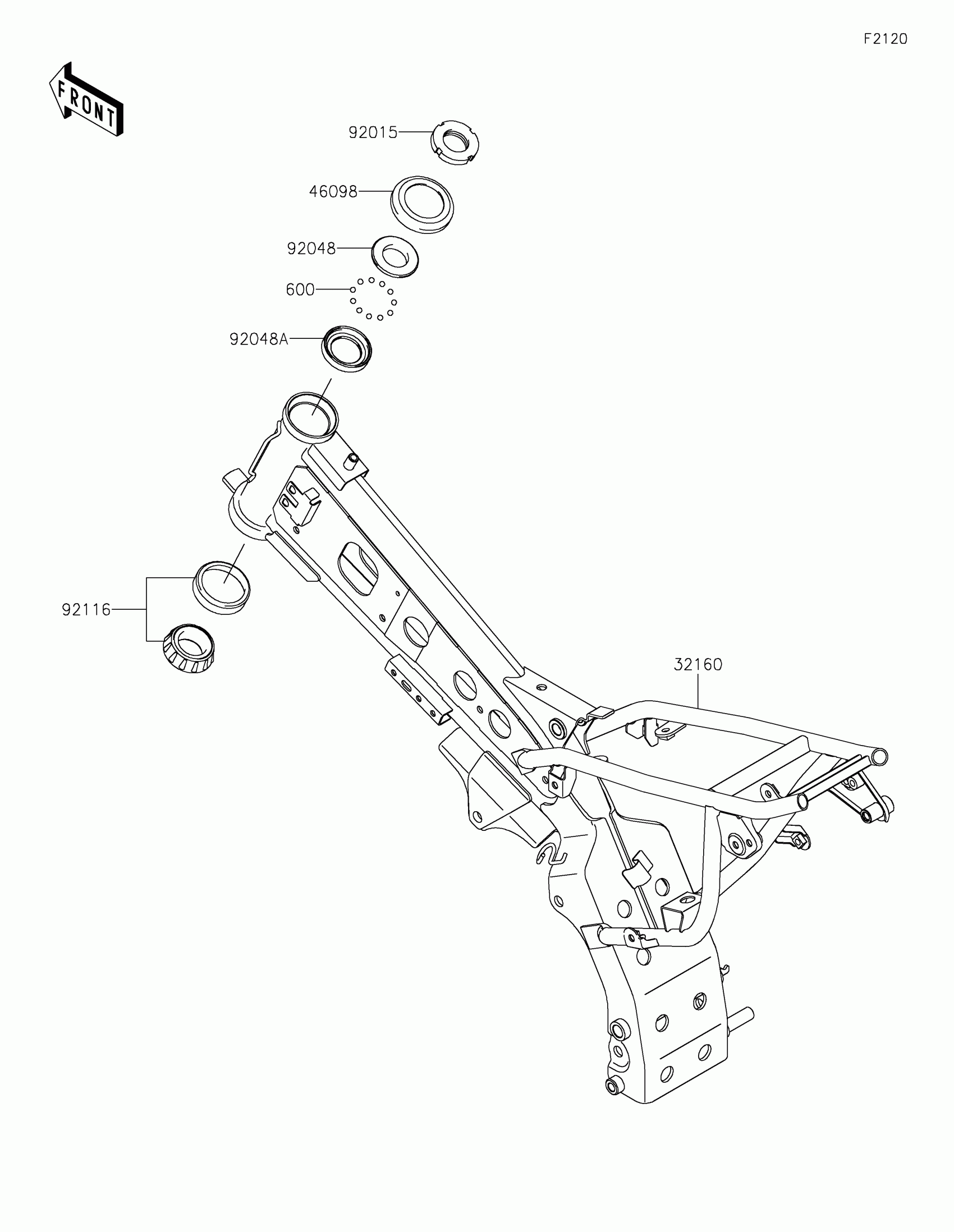

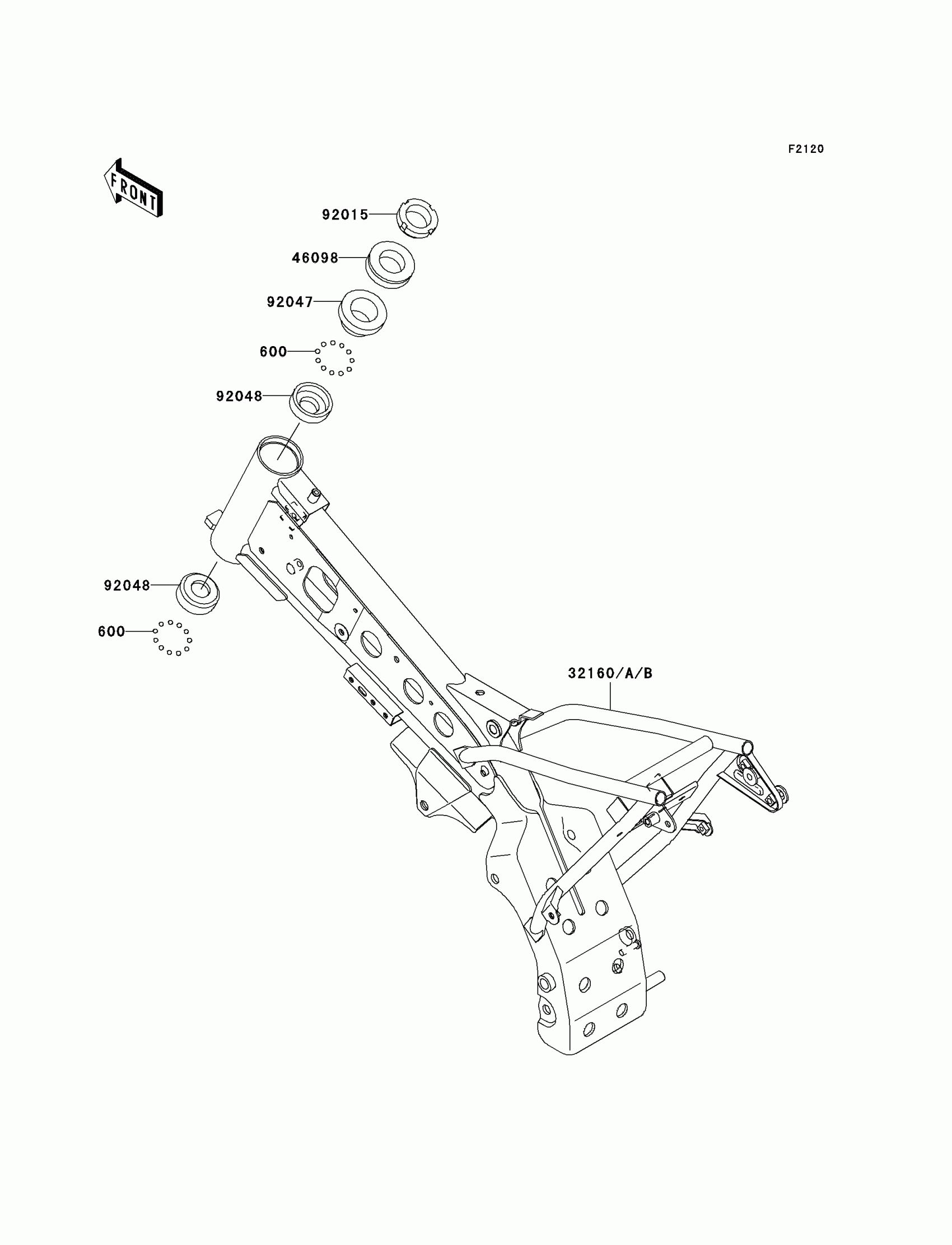

2005 Kawasaki KLX110 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

600

BALL-STEEL,3/16

600A0600

1

$1.02

In stock

32160B

FRAME-COMP,P.SILVER

32160-1773-458

1

$842.70

In stock

46098

CAP,STEERING STEM

46098-018

1

$5.15

In stock

92015

NUT,STEERING LOCK,25MM

92015-1222

1
Out of stock

92047

RACE,STEERING STEM BEARING

92047-014

1
Out of stock

92048

RACE,STEERING STEM BEARING

92048-009

1
Out of stock
