2005 Kawasaki KLX110 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2005 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

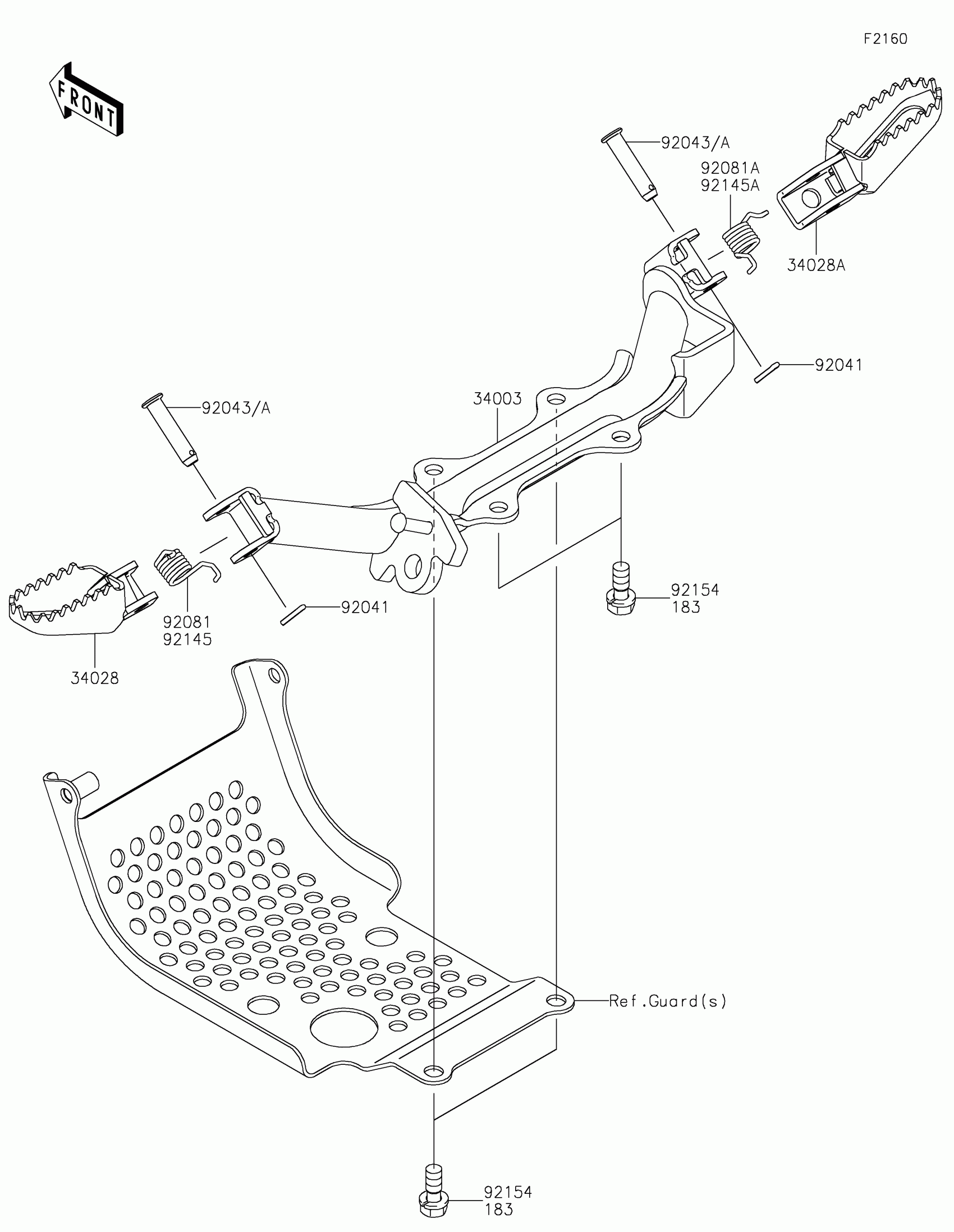

2005 Kawasaki KLX110 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

183

BOLT-UPSET-WS-SMALL

183H0816

1
Out of stock

34003B

HOLDER-STEP,P.SILVER

34003-1513-458

1

$138.99

In stock

34028

STEP,LH

34028-1237

1

$33.78

In stock

34028A

STEP,RH

34028-1238

1

$36.58

In stock

92041

COTTER,2.5X15

92041-1051

1

$4.42

In stock

92043

PIN,8X32

92043-1143

1

$9.29

In stock

92081

SPRING,FOOTREST,LH

92081-1491

1

$5.15

In stock

92081A

SPRING,FOOTREST,RH

92081-1543

1

$5.15

In stock
