Description

Price

132

BOLT-FLANGED-SMALL,6X30

132Y0630

$3.41

11004

GASKET-HEAD

11004-1338

$11.99

11008A

HEAD-COMP-CYLINDER

11008-1431

$406.94

11012

CAP,VALVE ADJUSTING

11012-1303

Unavailable

11060

GASKET,INTAKE PIPE

11060-1753

$2.94

14091

COVER,CAMSHAFT

14091-1447

$7.51

16060

PIPE-INTAKE

16060-1079

$24.11

16073

INSULATOR,CARBURETOR

16073-1102

$7.33

16073A

INSULATOR,HEAD

16073-1108

$3.13

49002

GUIDE-VALVE

49002-1130

Unavailable

92004

STUD,8X28.5

92004-1234

$6.02

92015

NUT,CAP,8MM

92015-1151

$5.00

92033

RING-SNAP

92033-1247

$3.91

92043

PIN,8.2X10X14

92043-1264

$0.64

92055

RING-O,ADJUST CAP

92055-1231

$10.65

92055A

RING-O,91X2.5

92055-1527

$12.21

92055B

RING-O,25.5X2.0

92055-1528

$8.05

92068

PLUG,12X25

92068-006

$4.26

92150

BOLT,6X106

92150-1761

$8.26

92153

BOLT,6X20

92153-1184

$4.12

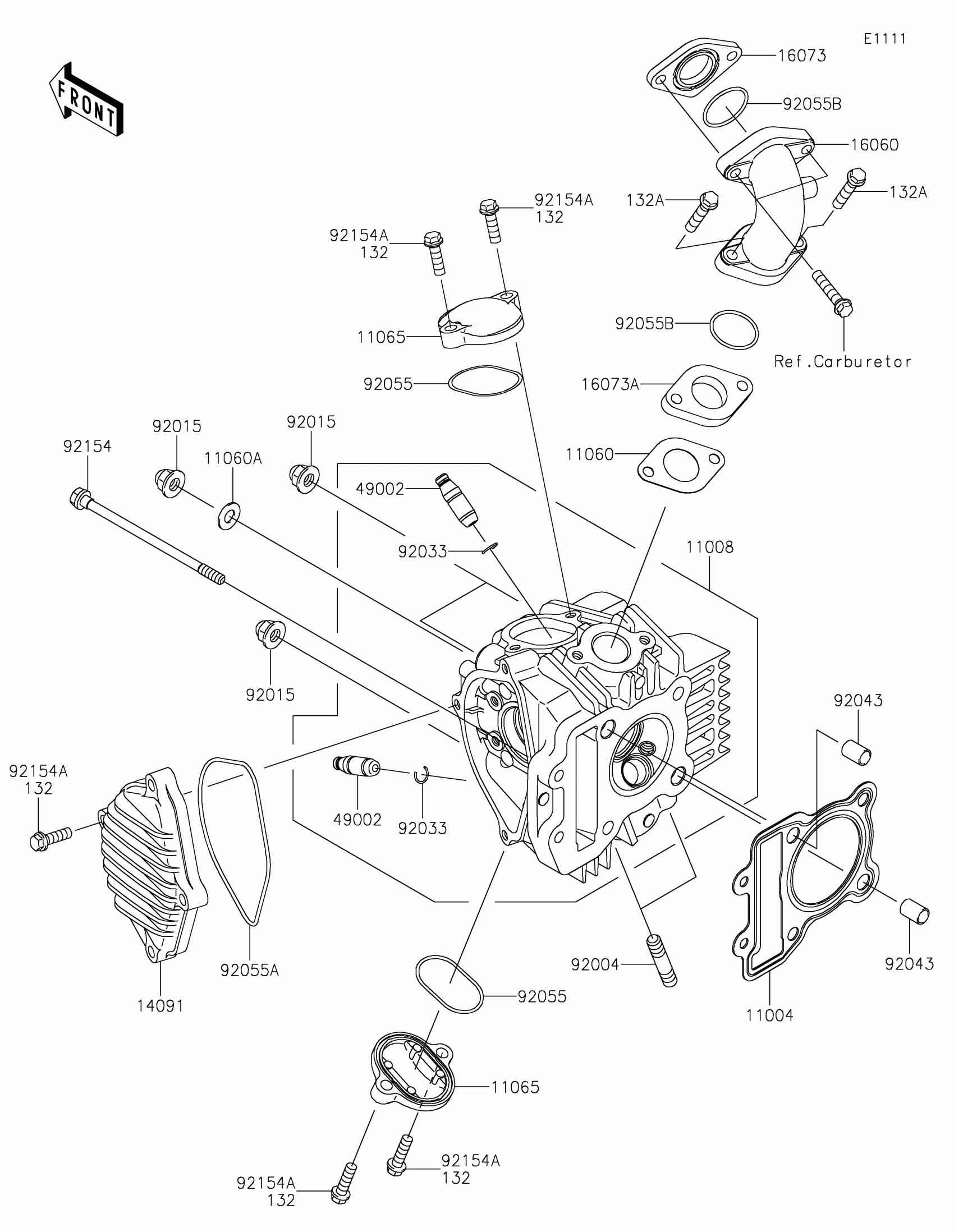

Kawasaki KLX110 Cylinder Head Diagram
