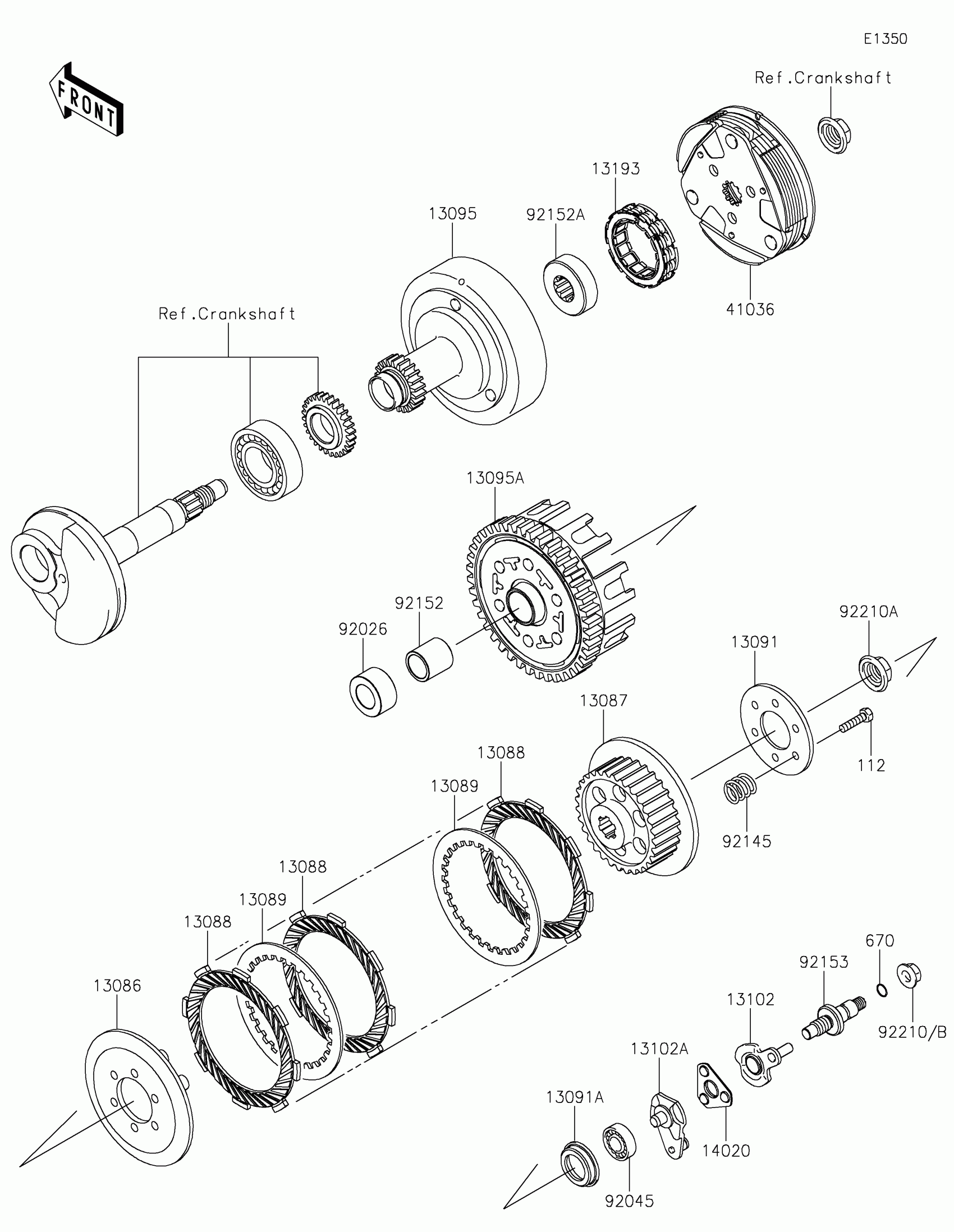

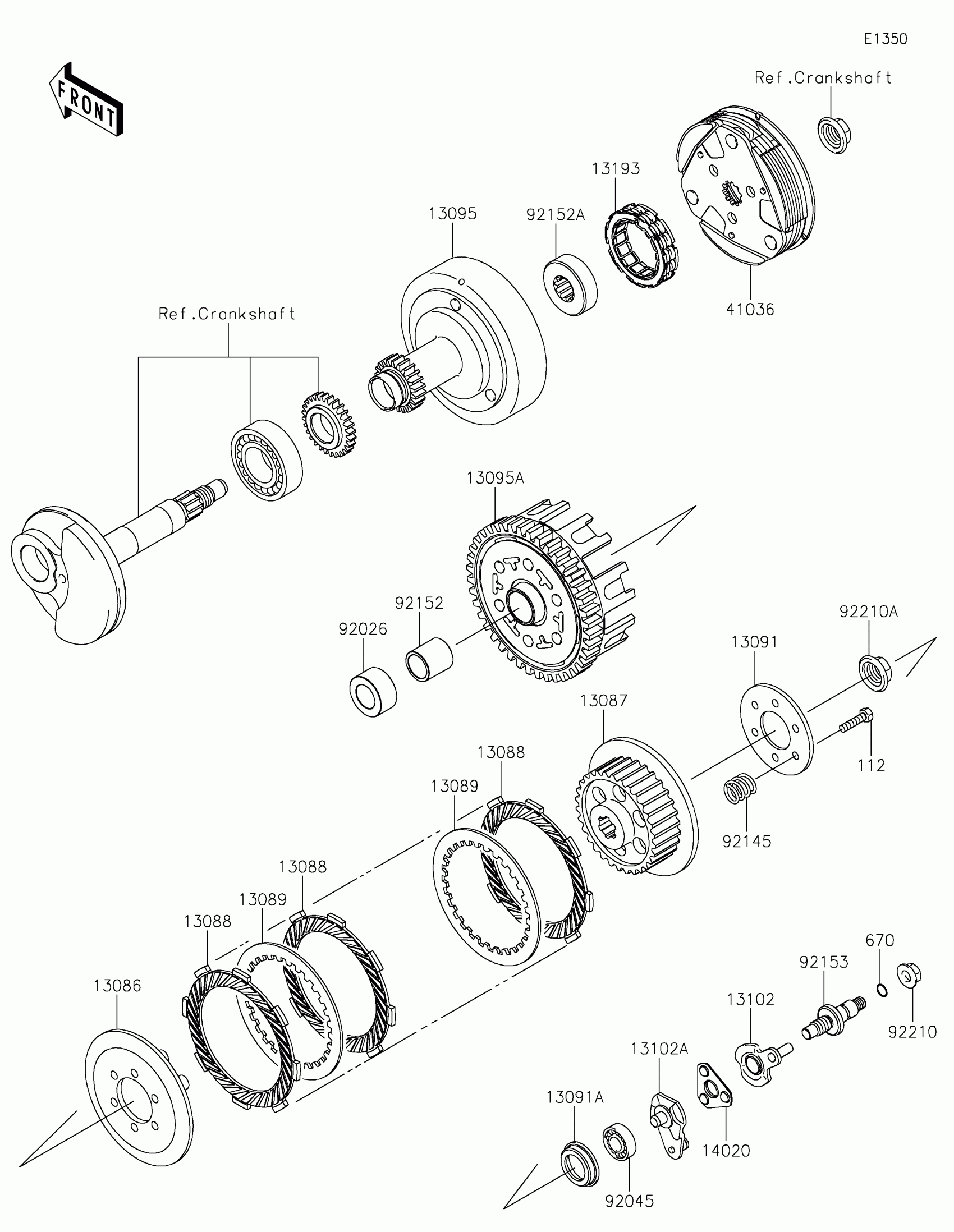

Kawasaki KLX110 Clutch Diagram

#

Description
Price

13086

WHEEL-CLUTCH

13086-1065

$26.05

13087

HUB-CLUTCH

13087-1151

$41.45

13088

PLATE-FRICTION

13088-1142

$9.53

13089

PLATE-CLUTCH

13089-1087

$9.73

13091

HOLDER,CLUTCH

13091-1782

$7.76

13091A

HOLDER

13091-1787

$9.82

13095

HOUSING-COMP-CLUTCH

13095-0128

$101.28

13095A

HOUSING-COMP-CLUTCH

13095-1403

$97.35

13102

RELEASE-COMP-CLUTCH

13102-1135

$56.07

13102A

RELEASE-COMP-CLUTCH

13102-1136

$48.51

13193

CLUTCH-ASSY-ONEWAY

13193-0008

$91.54

14020

RETAINER

14020-0576

$13.29

41036

HUB-ASSY,CLUTCH

41036-0261

$119.77

92026

SPACER

92026-1605

$3.76

92045

BEARING-BALL,#628

92045-1123

$18.83

92145

SPRING

92145-0744

$3.22

92152

COLLAR,17X22X22.7

92152-0393

$15.93

92152A

COLLAR

92152-0833

$8.70

92153

BOLT,CLUTCH RELEASE

92153-0525

$7.84

92210

NUT,FLANGED,8MM

92210-0004

$4.07

92210A

NUT,14MM

92210-1374

$7.39

112

BOLT-UPSET,5X20

112BA0520

$4.18

670

O RING,8MM

670B1508

$1.00
