Description

Price

13127

SHAFT-TRANSMISSION INPUT,12T

13127-0050

$224.20

13128

SHAFT-TRANSMISSION OUTPUT

13128-0036

$165.68

13144

SPROCKET-OUTPUT,13T

13144-0041

$45.92

13262

GEAR,INPUT 2ND,15T

13262-0438

$70.99

13262A

GEAR,INPUT 4TH,20T

13262-0440

$126.07

13262B

GEAR,OUTPUT LOW,26T

13262-0442

$147.40

13262C

GEAR,OUTPUT 2ND,23T

13262-0443

$147.40

13262D

GEAR,OUTPUT 3RD,19T

13262-0444

$126.07

13262E

GEAR,OUTPUT 4TH,19T

13262-0445

$126.07

13262F

GEAR,INPUT 3RD,16T

13262-0567

Unavailable

13262G

GEAR,INPUT 5TH,21T

13262-0569

$130.70

13262H

GEAR,OUTPUT 5TH,17T

13262-0570

Unavailable

92015

NUT,20MM

92015-1963

$14.90

92028

BUSHING,INPUT TOP GEAR

92028-1857

$17.88

92033

RING-SNAP,25MM

92033-1172

$5.08

92055

RING-O,21.5X1.5

92055-1293

$5.00

92152

COLLAR,25X30X13.2

92152-0150

$25.83

92152A

COLLAR

92152-0540

$27.22

92200

WASHER

92200-0390

$7.37

92200A

WASHER

92200-1389

$2.34

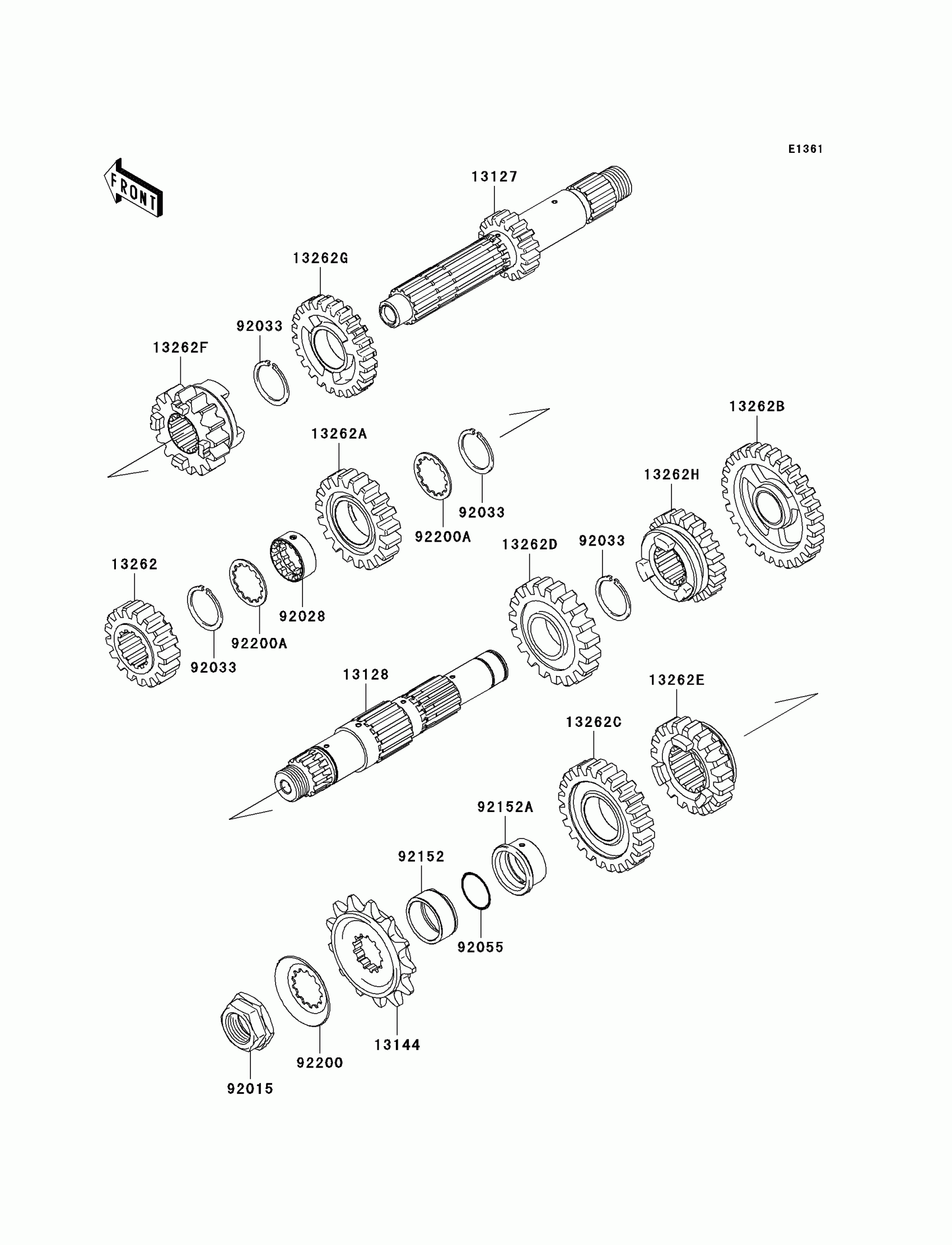

Kawasaki KLX®450R Transmission Diagram

SHAFT-TRANSMISSION INPUT,12T

SHAFT-TRANSMISSION OUTPUT

SPROCKET-OUTPUT,13T

GEAR,INPUT 2ND,15T

GEAR,INPUT 4TH,20T

GEAR,OUTPUT LOW,26T

GEAR,OUTPUT 2ND,23T

GEAR,OUTPUT 3RD,19T

GEAR,OUTPUT 4TH,19T

GEAR,INPUT 3RD,16T

GEAR,INPUT 5TH,21T

GEAR,OUTPUT 5TH,17T

NUT,20MM

BUSHING,INPUT TOP GEAR

RING-SNAP,25MM

RING-O,21.5X1.5

COLLAR,25X30X13.2

COLLAR

WASHER

WASHER
