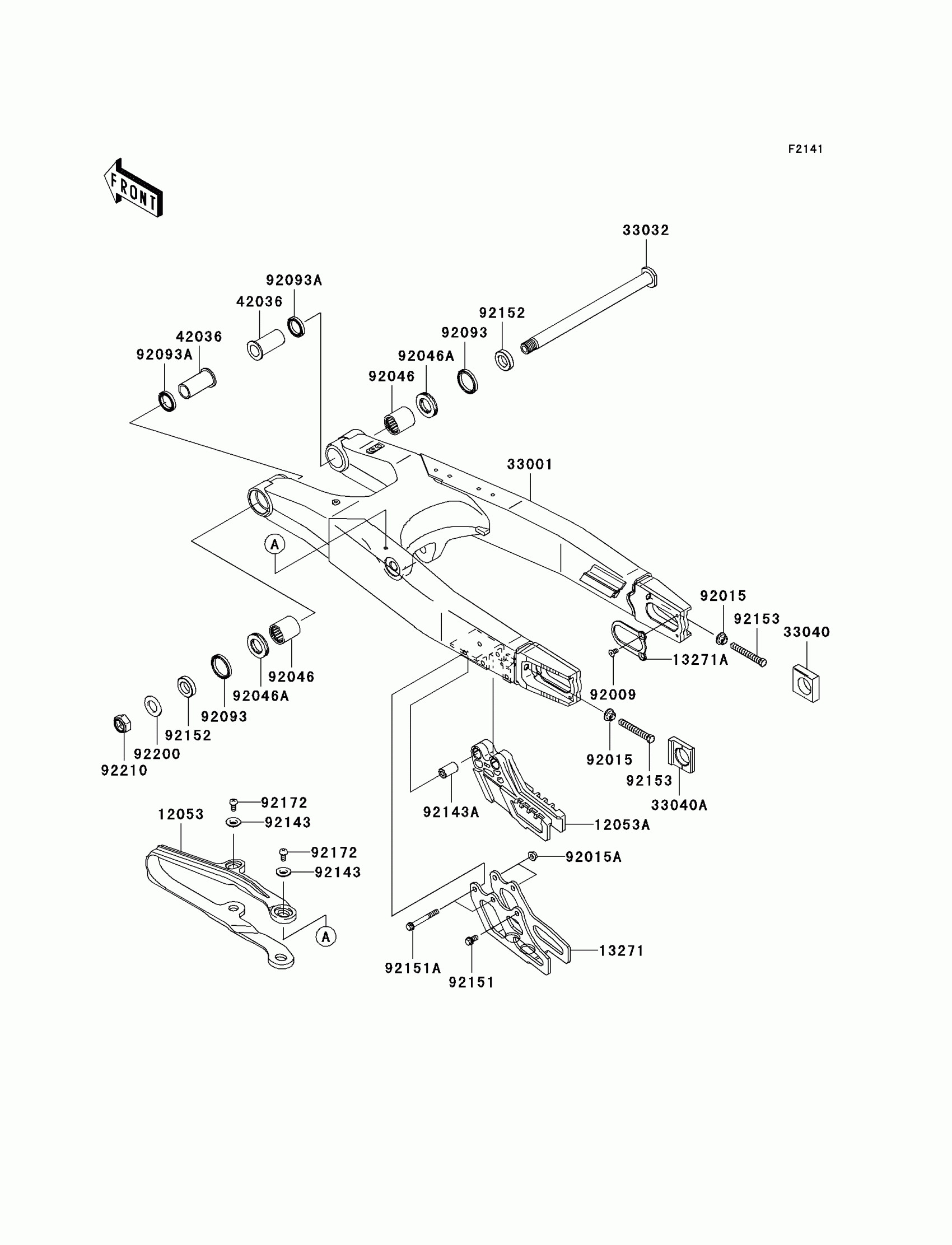

Kawasaki KLX®450R Swingarm Diagram
#
Description
Price
12053
GUIDE-CHAIN,DRIVE,FR
12053-0053
$69.86
12053A
GUIDE-CHAIN
12053-0061
$69.86
13271
PLATE,CHAIN GUIDE
13271-0593
$51.84
13271A
PLATE,AXLE
13271-1833
$17.27
33001
ARM-COMP-SWING
33001-0108
$1,058.84
33032
SHAFT-SWING ARM
33032-0012
$47.83
33040
ADJUSTER-CHAIN,RH
33040-0020
$14.62
33040A
ADJUSTER-CHAIN,LH
33040-1189
Unavailable
42036
SLEEVE,SWING ARM,L=47.5
42036-0019
$28.42
92009
SCREW,5X10
92009-1828
$2.46
92015
NUT,FLANGED,8MM
92015-1014
$0.65
92015A
NUT,FLANGED,6MM
92015-1078
Unavailable
92046
BEARING-NEEDLE,TA2230Z
92046-1174
$36.90
92046A
BEARING-NEEDLE,NTBR22356E01
92046-1240
$19.12
92093
SEAL,SDO29X35X4.5
92093-1434
$9.11
92093A
SEAL,SDO22X29X5
92093-1435
$8.79
92143
COLLAR
92143-1676
$6.22
92143A
COLLAR,6.5X14X24
92143-1867
$6.61
92151
BOLT,6X12
92151-1133
Unavailable
92151A
BOLT,6X50
92151-1234
$2.46
92152
COLLAR,17.1X29X6
92152-0292
$10.30
92153
BOLT,8X56
92153-0620
$3.73
92172
SCREW,5X8
92172-0119
$2.12
92200
WASHER,17.2X30X2.3
92200-0285
$3.90
92210
NUT,LOCK,16MM
92210-0285
$20.37
