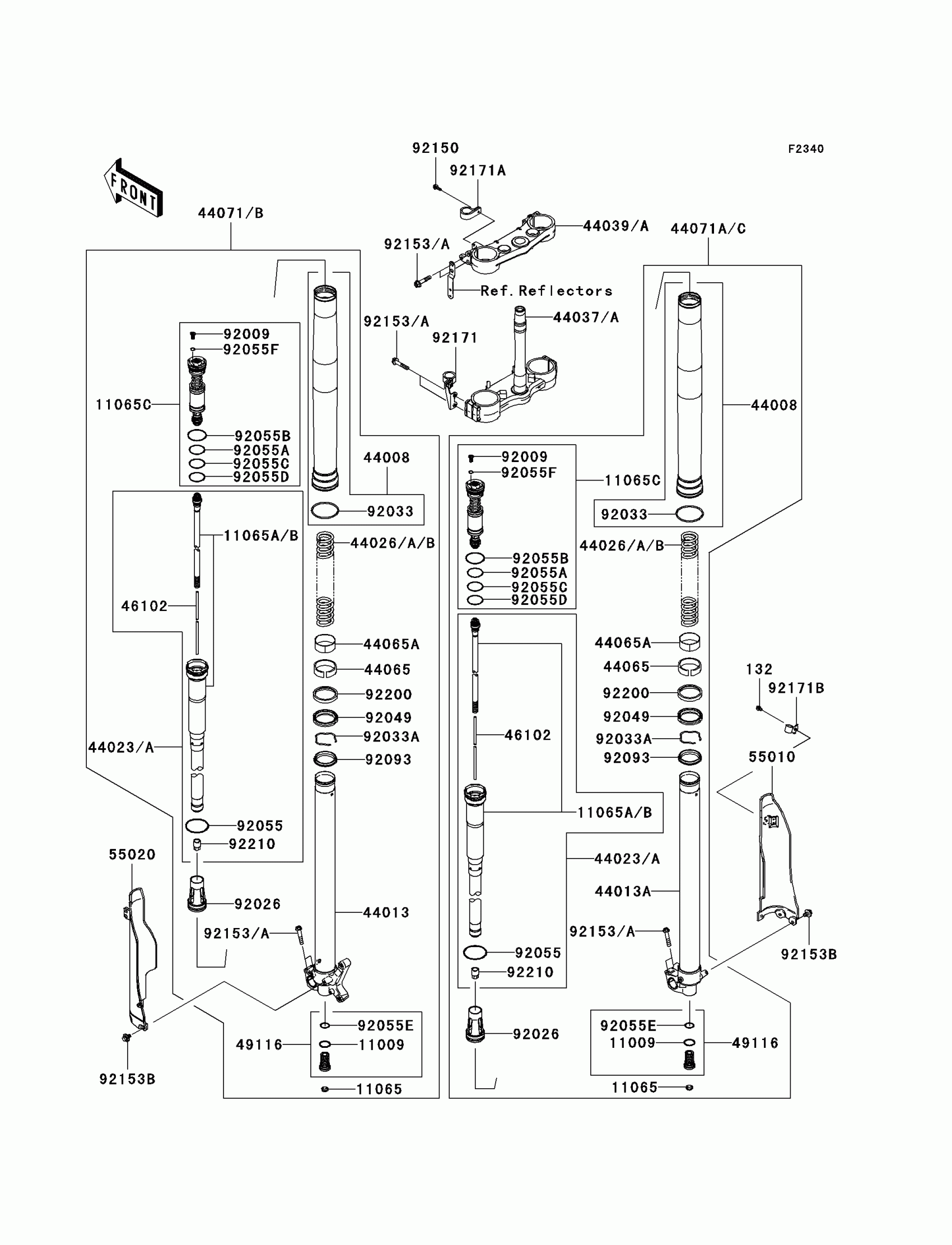

Kawasaki KLX®450R Front Fork Diagram
#
11009
GASKET,FORK CYLINDER BOLT
11009-1592
$6.16
11065
CAP
11065-0097
$5.60
11065A
CAP,FORK,TOP,SILVER
11065-0163-KX
$237.72
11065C
CAP,BASE VALVE
11065-0235
$266.52
44008
PIPE-FORK OUTER,GOLD
44008-0031-828
$621.76
44013
PIPE-FORK INNER,LH
44013-0075
$593.73
44013A
PIPE-FORK INNER,RH
44013-0076
$593.73
44023
CYLINDER-SET-FORK,SILVER
44023-0055-KX
$562.43
44026
SPRING-FRONT FORK,K=4.3N/MM
44026-0104
$88.39
44026A
SPRING-FRONT FORK,K=4.4N/MM
44026-0113
$88.39
44026B
SPRING-FRONT FORK,K=4.5N/MM
44026-0114
$88.39
44037A
HOLDER-FORK UNDER,P.SILVER
44037-0080-458
$563.11
44039A
HOLDER-FORK UPPER,P.SILVER
44039-0054-458
$246.87
44065
BUSHING-FRONT FORK
44065-0006
$19.09
44065A
BUSHING-FRONT FORK
44065-1140
$21.13
44071B
DAMPER-ASSY,FORK,LH
44071-5080
Unavailable
44071C
DAMPER-ASSY,FORK,RH
44071-5081
Unavailable
46102
ROD,PISTON
46102-0096
$401.92
49116
VALVE-ASSY
49116-0015
$197.51
55010
GUARD-ASSY,FORK,RH,WHITE
55010-0001-RZ
$64.54
55020
GUARD,FORK,LH,WHITE
55020-0172-RZ
$64.54
92009
SCREW
92009-1884
$7.71
92026
SPACER
92026-0097
$29.10
92033
RING-SNAP
92033-0049
$4.61
92033A
RING-SNAP
92033-1329
$6.89
92049
SEAL-OIL
92049-0056
$22.01
92055
RING-O
92055-0104
$5.65
92055A
RING-O
92055-0105
$5.65
92055B
RING-O
92055-0106
$5.65
92055C
RING-O
92055-0116
$5.65
92055D
RING-O
92055-0117
$5.65
92055E
RING-O
92055-1156
$1.42
132
BOLT-FLANGED-SMALL,6X8
132BB0608
$3.67
92055F
RING-O,2.8X6.6X1.9
92055-1441
$4.33
92093
SEAL,FORK OUTER TUBE
92093-1566
$20.74
92150
BOLT,5X16
92150-1802
$5.00
92153
BOLT,8X40
92153-0020
$5.59
92153B
BOLT,FLANGED,6X14
92153-0936
$2.97
92171
CLAMP
92171-0819
$16.97
92171A
CLAMP
92171-0820
$7.75
92171B
CLAMP
92171-1615
$11.93
92200
WASHER
92200-0067
$12.83
92210
NUT
92210-0337
$23.02
