Description

Price

130

BOLT-FLANGED,5X10

130BA0510

$1.71

130A

BOLT-FLANGED,8X18

130CA0818

$2.55

14079

HOLDER-ASSY,BATTERY

14079-0026

$37.51

32190

BRACKET-ENGINE,FR

32190-0330

$48.51

32190A

BRACKET-ENGINE,FR

32190-0331

$48.51

32190D

BRACKET-ENGINE,UPP,LH

32190-0351

$29.59

32190E

BRACKET-ENGINE,UPP,RH

32190-0352

$29.59

39184

BRACKET-ASSY,SWITCH&RELAY

39184-0008

$16.97

55020

GUARD,ENGINE,RH,WHITE

55020-0179-RZ

$36.74

55020A

GUARD,ENGINE,LH,WHITE

55020-0313-RZ

$36.74

55020B

GUARD,SKID

55020-0369

$39.85

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92015A

NUT,8MM

92015-1432

$6.57

92045

BEARING-BALL,608LLU/2A

92045-0060

$32.61

92122

ROLLER,CHAIN GUIDE

92122-0016

$18.57

92143

COLLAR

92143-1196

$4.69

92143A

COLLAR

92143-1307

$3.94

92152

COLLAR

92152-0459

$26.30

92152A

COLLAR,10.2X20X10

92152-0595

$3.90

92153

BOLT,6X20

92153-0502

$2.80

92153A

BOLT,6X12

92153-0503

$2.80

92153B

BOLT,FLANGED,10X137

92153-0704

$11.53

92153C

BOLT,FLANGED,10X35

92153-0802

$5.57

92153D

BOLT,FLANGED,8X35

92153-1652

$4.65

92153E

BOLT,FLANGED,10X128

92153-1869

$19.01

92153F

BOLT,FLANGED,8X126

92153-1870

$11.93

92161

DAMPER

92161-0456

$5.65

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

92210A

NUT,LOCK,10MM

92210-1184

$6.11

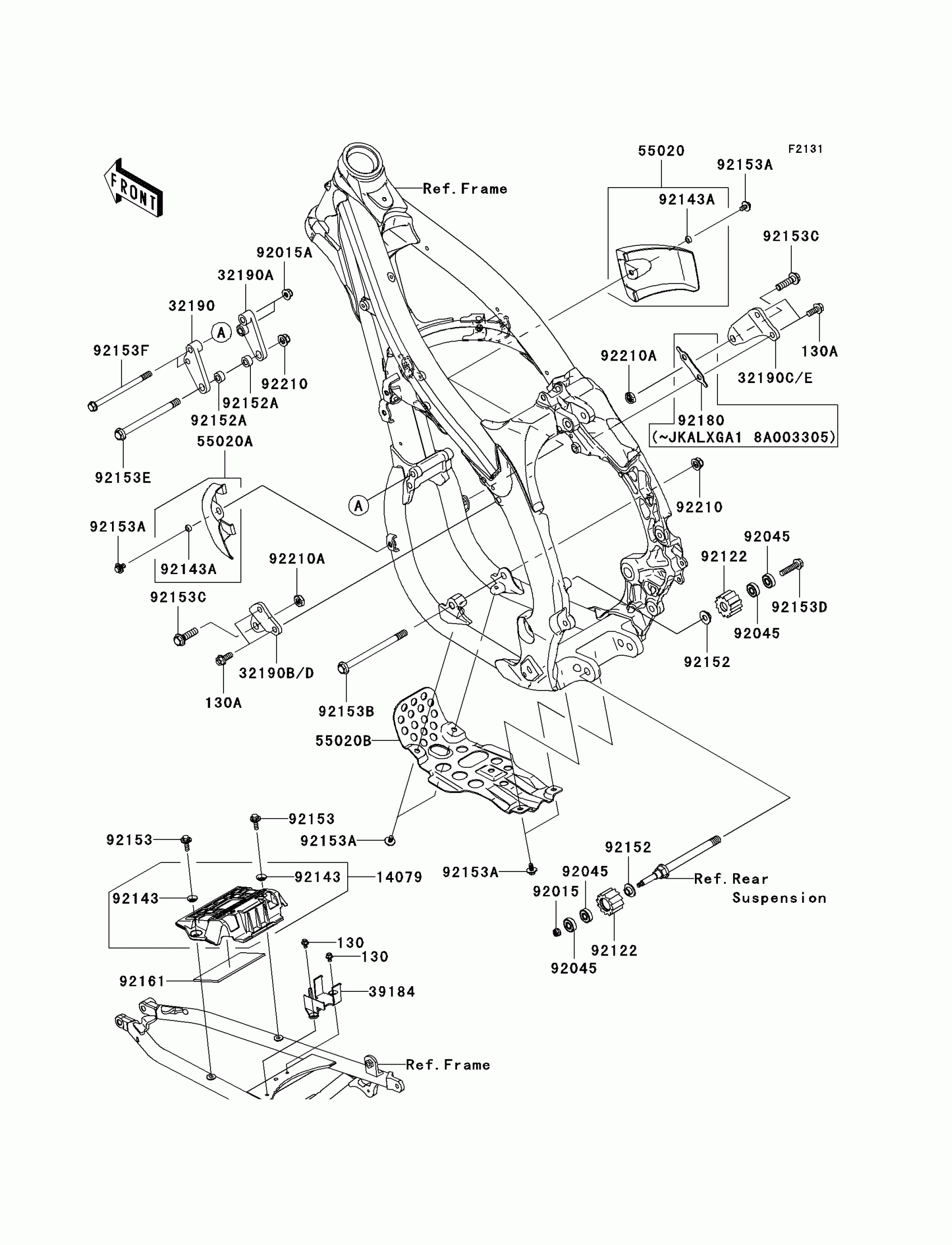

Kawasaki KLX®450R Frame Fittings Diagram

BOLT-FLANGED,5X10

BOLT-FLANGED,8X18

HOLDER-ASSY,BATTERY

BRACKET-ENGINE,FR

BRACKET-ENGINE,FR

BRACKET-ENGINE,UPP,LH

BRACKET-ENGINE,UPP,RH

BRACKET-ASSY,SWITCH&RELAY

GUARD,ENGINE,RH,WHITE

GUARD,ENGINE,LH,WHITE

GUARD,SKID

NUT,LOCK,FLANGED,6MM

NUT,8MM

BEARING-BALL,608LLU/2A

ROLLER,CHAIN GUIDE

COLLAR

COLLAR

COLLAR

COLLAR,10.2X20X10

BOLT,6X20

BOLT,6X12

BOLT,FLANGED,10X137

BOLT,FLANGED,10X35

BOLT,FLANGED,8X35

BOLT,FLANGED,10X128

BOLT,FLANGED,8X126

DAMPER

NUT,LOCK,FLANGED,10MM

NUT,LOCK,10MM
