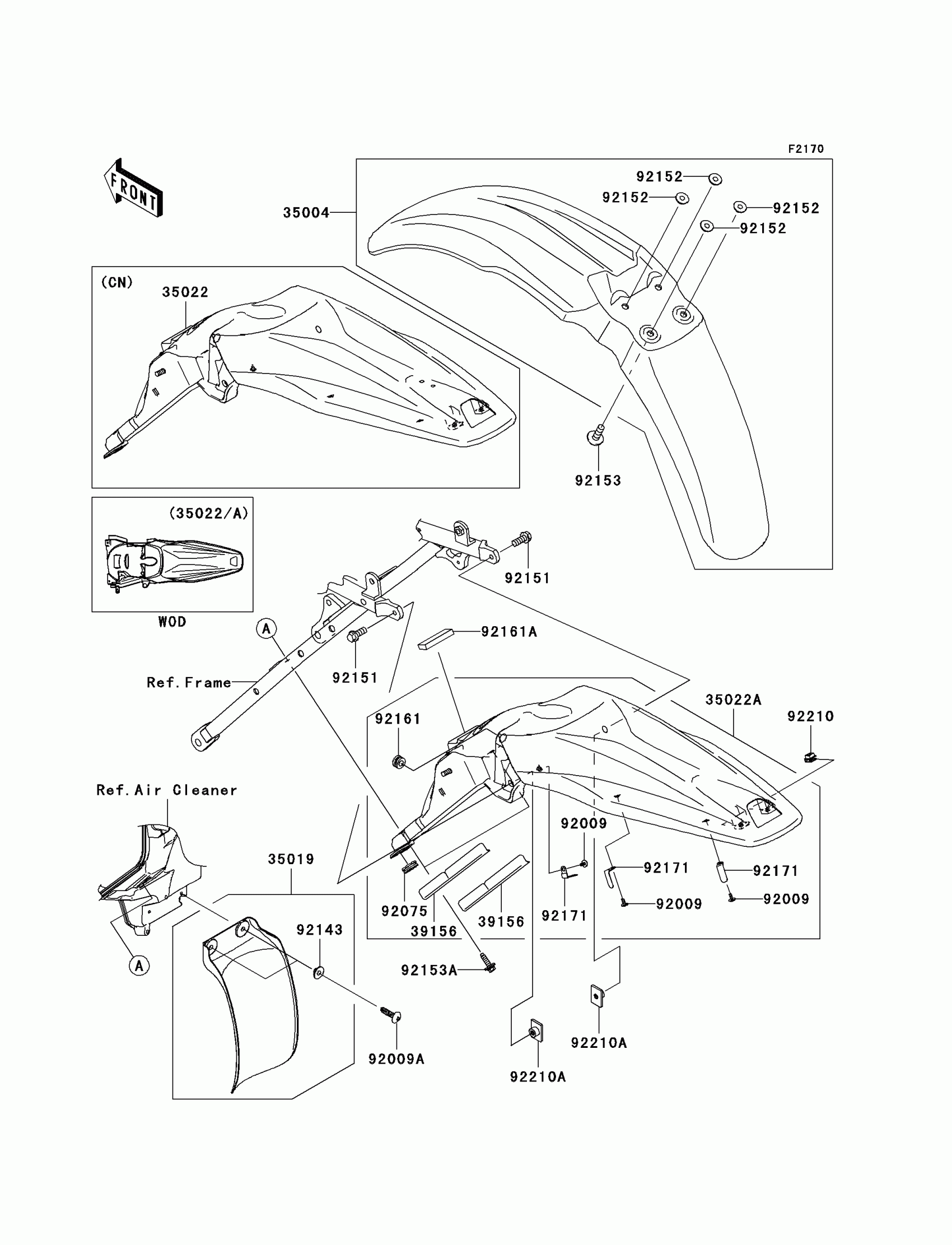

Kawasaki KLX®450R Fenders Diagram

Description

Price

35004

FENDER-FRONT,L.GREEN

35004-0078-290

$74.35

35019

FLAP,AIR FILTER

35019-0050

$39.33

39156

PAD

39156-0335

$8.60

92009

SCREW,TAPPING,4X8

92009-1155

$2.97

92009A

SCREW,TAPPING,5X20

92009-1993

$1.03

92075

DAMPER

92075-1912

$5.77

92143

COLLAR

92143-1087

$4.31

92151

BOLT,6X14

92151-1423

$0.90

92152

COLLAR

92152-1422

$7.24

92153

BOLT,6X20

92153-0502

$2.80

92153A

BOLT,FLANGED,6X23

92153-1852

Unavailable

92161

DAMPER

92161-0279

$3.90

92161A

DAMPER

92161-0457

$2.15

92171

CLAMP

92171-0181

$7.95

92210

NUT,5MM

92210-0351

$5.65

92210A

NUT,PLATE,6MM

92210-1352

$2.41

35022

FENDER-COMP-REAR,L.GREEN

35022-0045-290

Unavailable

35022A

FENDER-COMP-REAR,L.GREEN

35022-0046-290

$76.68
