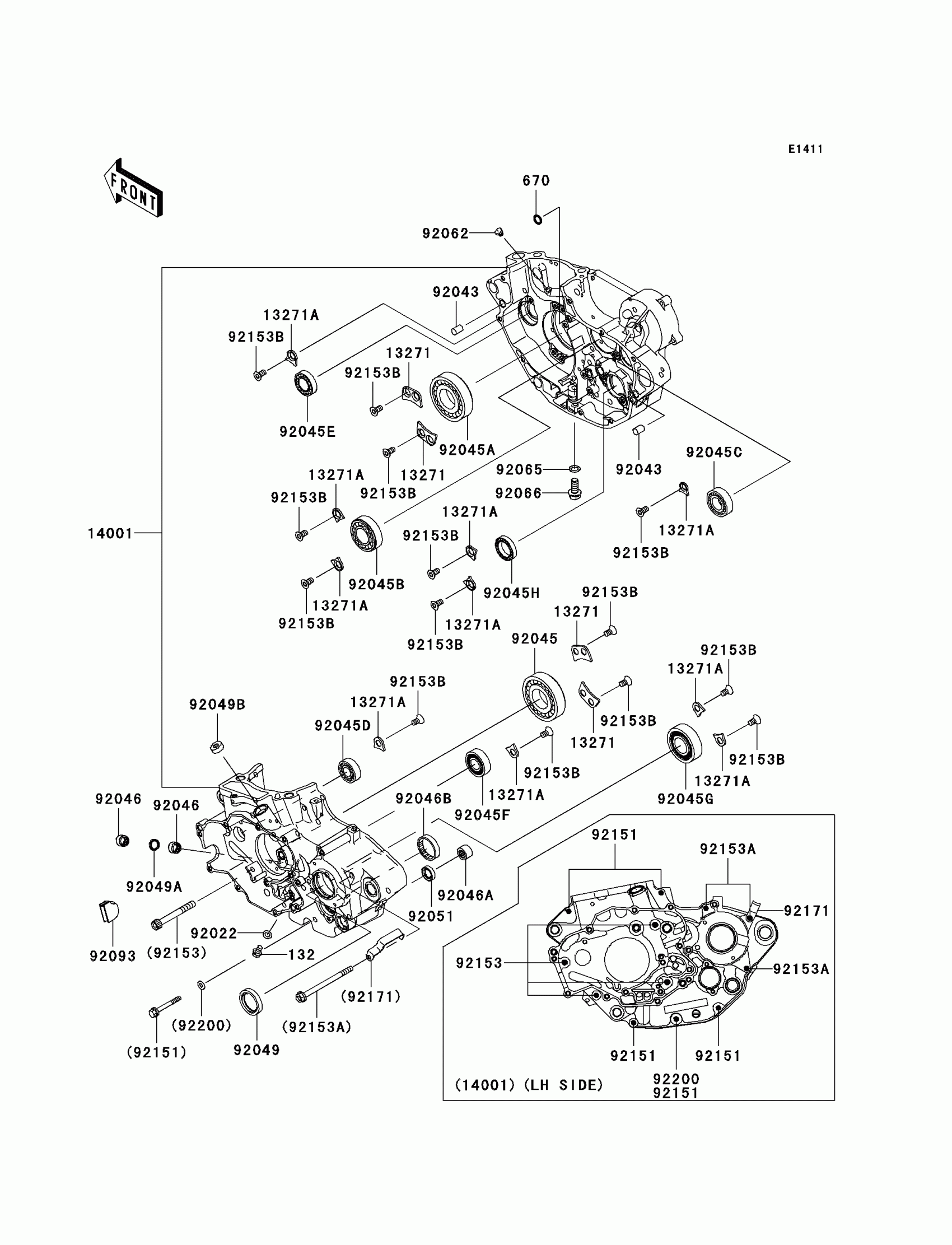

Kawasaki KLX®450R Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X8

132BA0608

$2.49

670

O RING,7MM

670D1507

$1.70

13271

PLATE

13271-0334

$7.75

13271A

PLATE

13271-0345

$5.33

14001

SET-CRANKCASE

14001-0093

$699.14

92022

WASHER,6.2X11X1

92022-304

$3.65

92043

PIN,10X14

92043-1506

$3.32

92045

BEARING-BALL,B32-32U-A-EC4 UR5

92045-0024

$47.29

92045A

BEARING-BALL,B32-32-A-DUX8EC4

92045-0031

$55.89

92045B

BEARING-BALL,25X52X15

92045-0035

$28.88

92045C

BEARING-BALL,20X42X12

92045-0036

$21.08

92045D

BEARING-BALL,6202SH2C3

92045-0037

$14.01

92045E

BEARING-BALL,6904C3UR5

92045-0038

$23.92

92045F

BEARING-BALL,3TM-5X0391LUC3

92045-0057

$21.62

92045G

BEARING-BALL

92045-0062

$39.48

92045H

BEARING-BALL,6805JRZ

92045-1432

$32.41

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92046A

BEARING-NEEDLE,HK1312

92046-1148

$18.74

92046B

BEARING-NEEDLE,7E-HKS33X38X8

92046-1221

$32.47

92049

SEAL-OIL,TC 30 40 7

92049-0030

$19.94

92049A

SEAL-OIL,12X16X3

92049-0087

$13.60

92049B

SEAL-OIL,TC4 8 18 7

92049-0088

$16.97

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92062

NOZZLE,6X7

92062-0013

$16.97

92065

GASKET,10.5X16X1

92065-058

$3.96

92066

PLUG,DRAIN,10X22

92066-0038

$7.31

92093

SEAL,BLIND,LH CRANKCASE

92093-0071

$30.76

92151

BOLT,6X50

92151-1545

$2.75

92153

BOLT,7X60

92153-0846

Unavailable

92153A

BOLT,FLANGED,6X85

92153-0934

Unavailable

92153B

BOLT,TORX,6X8.7

92153-1669

$3.90

92171

CLAMP

92171-0579

$7.68

92200

WASHER,6.3X13.5X1.0

92200-0171

$3.39
