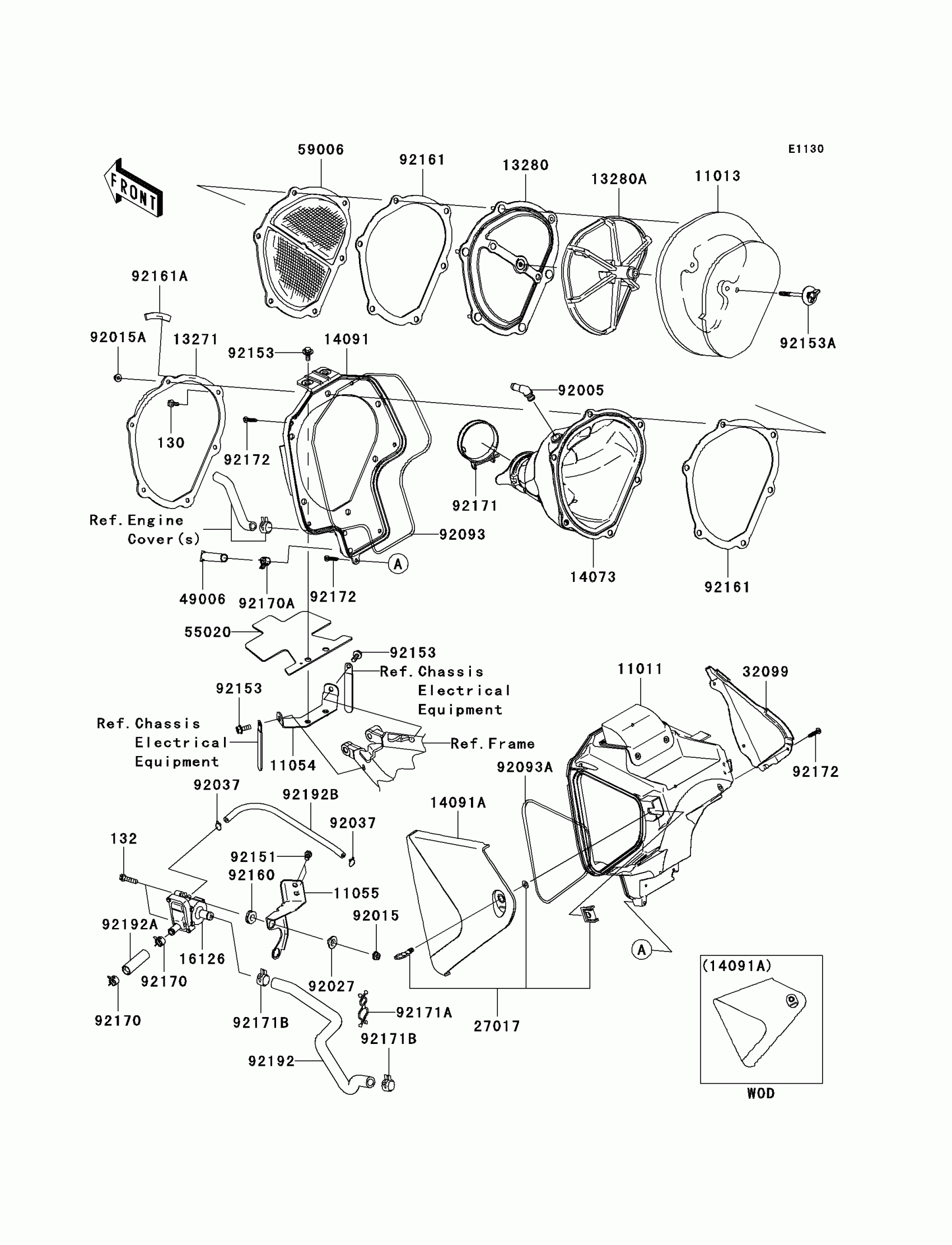

Kawasaki KLX®450R Air Cleaner Diagram
#
130
BOLT-FLANGED,5X12
130BA0512
$2.22
132
BOLT-FLANGED-SMALL,6X25
132BA0625
$2.80
11011
CASE-AIR FILTER,F.BLACK
11011-0106-6Z
$121.74
11013
ELEMENT-AIR FILTER
11013-0019
$73.56
11054
BRACKET,A/C BOX
11054-1100
$31.86
11055
BRACKET,ASV
11055-0030
$31.80
13271
PLATE,DUCT FITTING
13271-0730
$25.22
13280
HOLDER,DUCT
13280-0217
$60.24
13280A
HOLDER,ELEMENT
13280-0218
$47.22
14073
DUCT,FUNNEL
14073-0175
$69.19
14091
COVER,F.BLACK
14091-0710-6Z
$30.46
14091A
COVER,LH,BLACK/WHITE
14091-0862-17Y
$34.51
16126
VALVE,AIR SWITCHING
16126-0030
$112.59
27017
LOCK
27017-0007
Unavailable
32099
CASE,F.BLACK
32099-0028-6Z
$16.97
49006
BOOT
49006-0061
$17.13
55020
GUARD
55020-0391
$26.24
59006
ARRESTER-FLAME
59006-0011
$61.13
92005
FITTING
92005-0069
$10.39
92015
NUT,FLANGED,6MM
92015-1193
Unavailable
92015A
NUT,FLANGED,5MM
92015-1259
$3.92
92027
COLLAR,L=7.4
92027-1848
$4.69
92037
CLAMP
92037-1610
$2.00
92093
SEAL,FR COVER
92093-0074
$13.48
92093A
SEAL,LH COVER
92093-0075
$20.04
92151
BOLT,FLANGED,6X10
92151-1233
$1.97
92153
BOLT,6X16
92153-0863
$2.15
92153A
BOLT,6X65
92153-1756
$8.68
92160
DAMPER
92160-1278
$4.39
92161
DAMPER
92161-0213
$30.75
92161A
DAMPER
92161-0350
$6.75
92170
CLAMP
92170-1491
$7.45
92170A
CLAMP
92170-1938
$3.74
92171
CLAMP,DUCT,62MM
92171-0651
$13.60
92171A
CLAMP,PURSE LOCK
92171-0965
$8.12
92171B
CLAMP
92171-1441
$4.56
92172
SCREW,TAPPING,5X20
92172-0009
$2.80
92192
TUBE,ASV-A/C
92192-0410
$26.45
92192A
TUBE,ASV-PIPE
92192-0411
$5.86
92192B
TUBE,ASV-INMANI
92192-0412
$10.69
