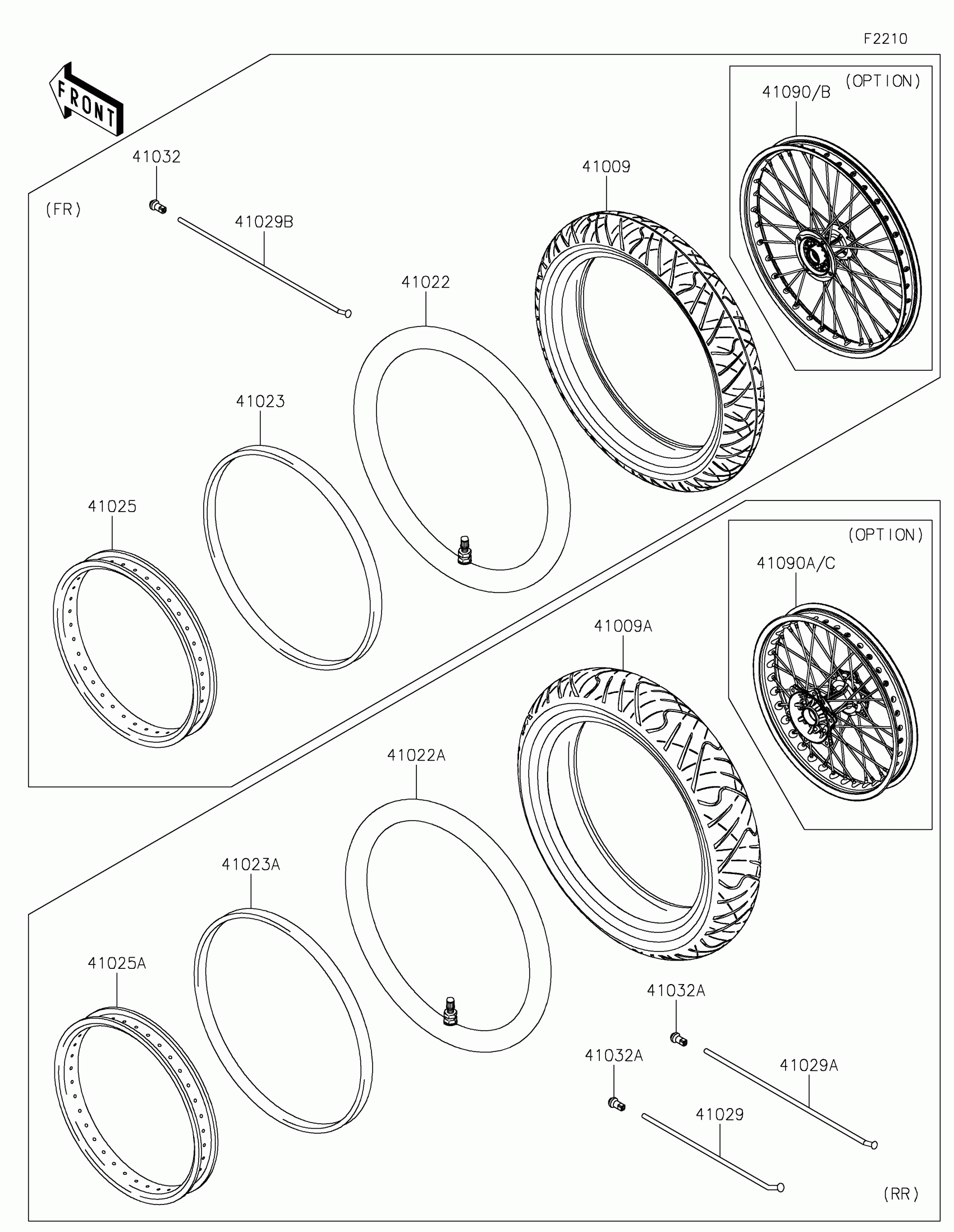

Kawasaki KLX®300SM Wheels/Tires Diagram

TIRE,FR,110/70-17 54S,RX-01F

41009-0245

$156.48

TIRE,RR,130/70-17 62S,RX-01R

41009-0246

$190.56

TUBE-TIRE,110/70-17

41022-0105

$51.56

TUBE-TIRE,130/70-17

41022-0106

$51.56

BAND-RIM,FR,110/70-17

41023-0015

$15.48

BAND-RIM,RR,130/70-17

41023-0016

$15.48

RIM,FR,3.00X17,BLACK

41025-0322-WC

$533.33

RIM,RR,4.00X17,BLACK

41025-0323-WC

$562.54

SPOKE-INNER,RR,LH,173.1MMX163D

41029-0049

$5.46

SPOKE-INNER,RR,RH,168.1MMX153D

41029-0050

$5.46

SPOKE-INNER,FR,172MMX167D

41029-1292

$2.92

NIPPLE-SPOKE

41032-0005

$2.94

NIPPLE-SPOKE

41032-0007

$3.26

WHEEL-SUB ASSY,FR,BLACK

41090-5214

$856.35

WHEEL-SUB ASSY,RR,BLACK

41090-5215

$961.82

WHEEL-SUB ASSY,FR,BLUE

41090-5216

$856.35

WHEEL-SUB ASSY,RR,BLUE

41090-5217

$961.82
