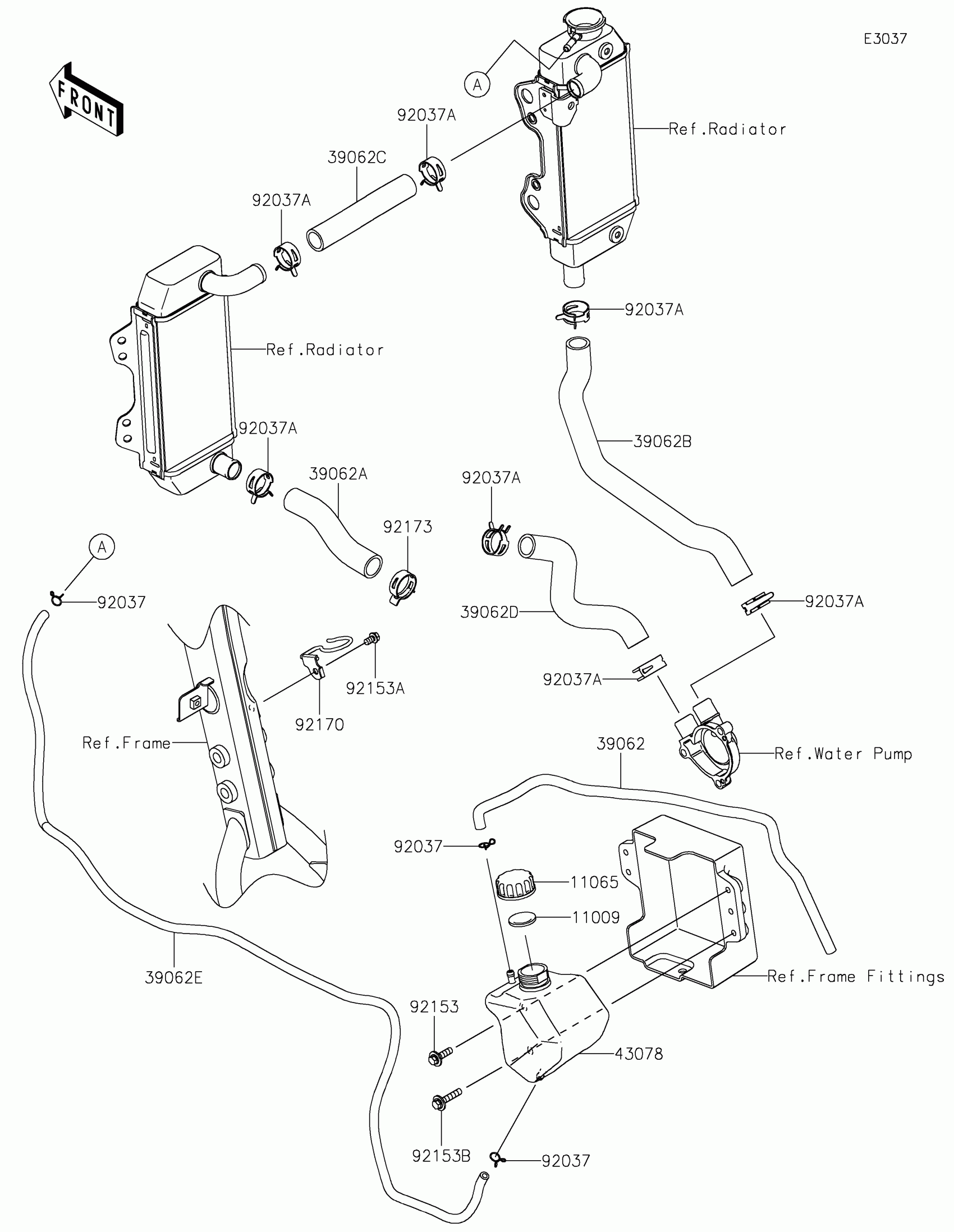

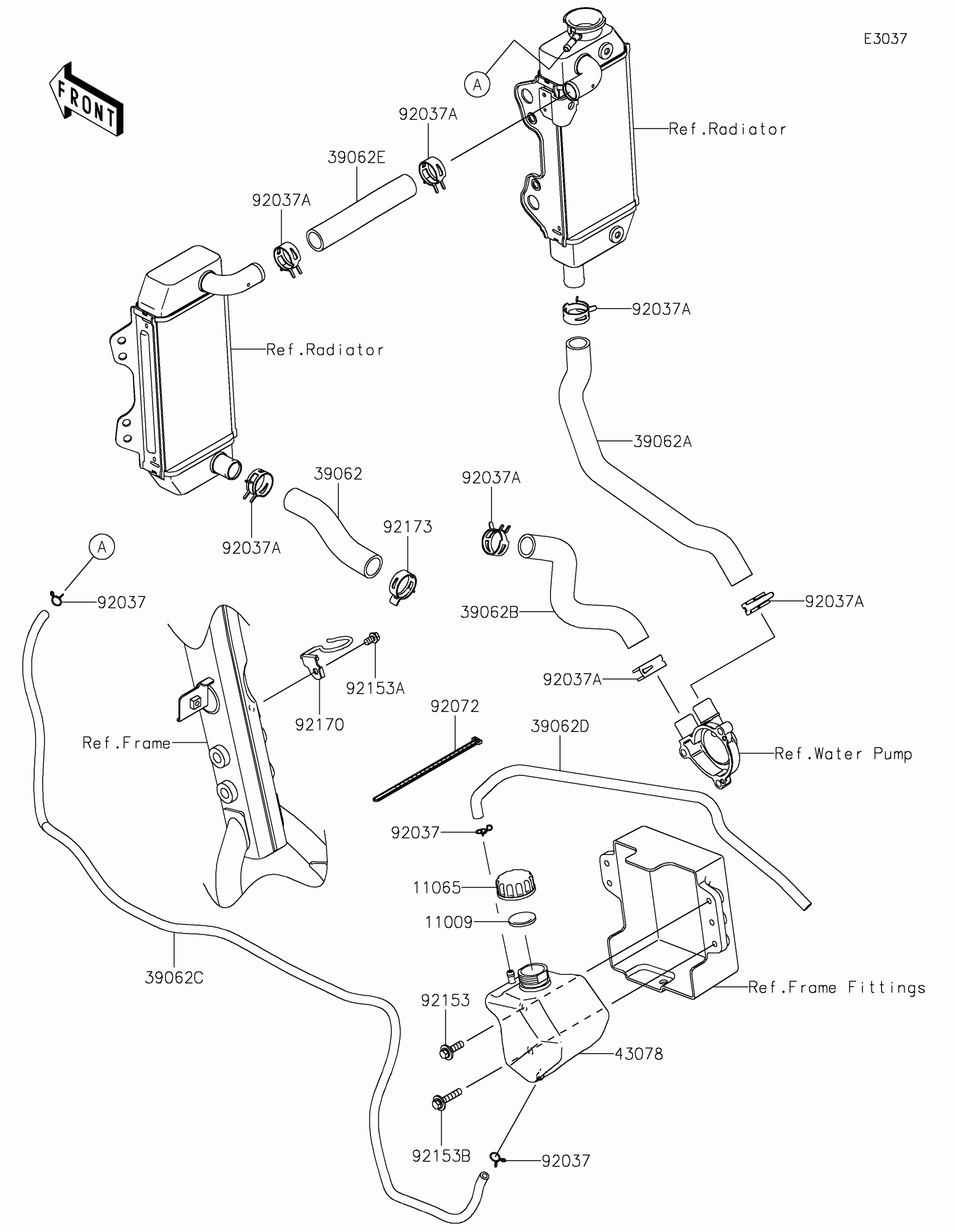

Kawasaki KLX®300SM Water Pipe Diagram

Description

Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11065

CAP

11065-0969

$2.02

39062

HOSE-COOLING,FITTING-RAD.LH

39062-0911

$11.30

39062A

HOSE-COOLING,RAD.RH-W/PUMP

39062-0912

$22.35

39062B

HOSE-COOLING,W/PUMP-CYLINDER

39062-0919

$13.71

39062C

HOSE-COOLING,RESERVOIR

39062-1786

$14.66

39062D

HOSE-COOLING,OVERFLOW

39062-1941

$13.55

39062E

HOSE-COOLING,RAD.LH-RAD.RH

39062-1956

$12.36

43078

RESERVOIR

43078-0044

$47.52

92037

CLAMP

92037-1712

$5.00

92037A

CLAMP

92037-2109

$1.57

92072

BAND,L=250

92072-0937

$2.23

92153

BOLT,FLANGED,6X22

92153-0950

$3.90

92153A

BOLT,FLANGED,6X10

92153-1354

$2.61

92153B

BOLT,FLANGED,6X30

92153-1457

$3.39

92170

CLAMP

92170-1357

$15.08

92173

CLAMP

92173-2465

$6.30
