Description

Price

13193

CLUTCH-ASSY-ONEWAY

13193-0007

$119.24

132

BOLT-FLANGED-SMALL,6X30

132BC0630

$2.15

13216

GEAR-COMP,ONEWAY CLUTCH

13216-1148

$195.45

13280

HOLDER

13280-0816

$7.60

16073

INSULATOR

16073-0053

$11.93

21039

BRUSH,CARBON

21039-0004

$117.72

21040

SPRING-BRUSH

21040-0003

$9.79

21163

STARTER-ELECTRIC

21163-0046

$494.71

26006

FUSE,BLADE,20A,YELLOW

26006-1051

$4.96

26011

WIRE-LEAD,STARTER

26011-0782

$22.38

27010

SWITCH

27010-0774

$115.74

39076

LIMITER,STARTER IDLE GEAR

39076-0020

$183.19

42034

COUPLING

42034-0048

$117.33

59051

GEAR-SPUR,IDLE

59051-0785

$89.00

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,10.2X20X0.5

92022-1649

$4.31

92026

SPACER

92026-0762

$20.92

92055

RING-O

92055-0136

$7.75

92055A

RING-O

92055-1276

$9.91

92055B

RING-O,4.5X2.0

92055-1370

$4.69

92071

GROMMET

92071-0705

$6.89

92153

BOLT

92153-1850

$11.93

92153A

BOLT

92153-1866

$4.65

92154

BOLT,SOCKET,6X16

92154-0235

$2.95

92172

SCREW-PAN-WS-CROS,5X10

92172-0234

$2.15

92172A

SCREW

92172-0334

$4.65

92200

WASHER

92200-0386

$4.65

92200A

WASHER,27.2X44X1

92200-0908

$6.24

92210

NUT,6MM

92210-0188

$2.15

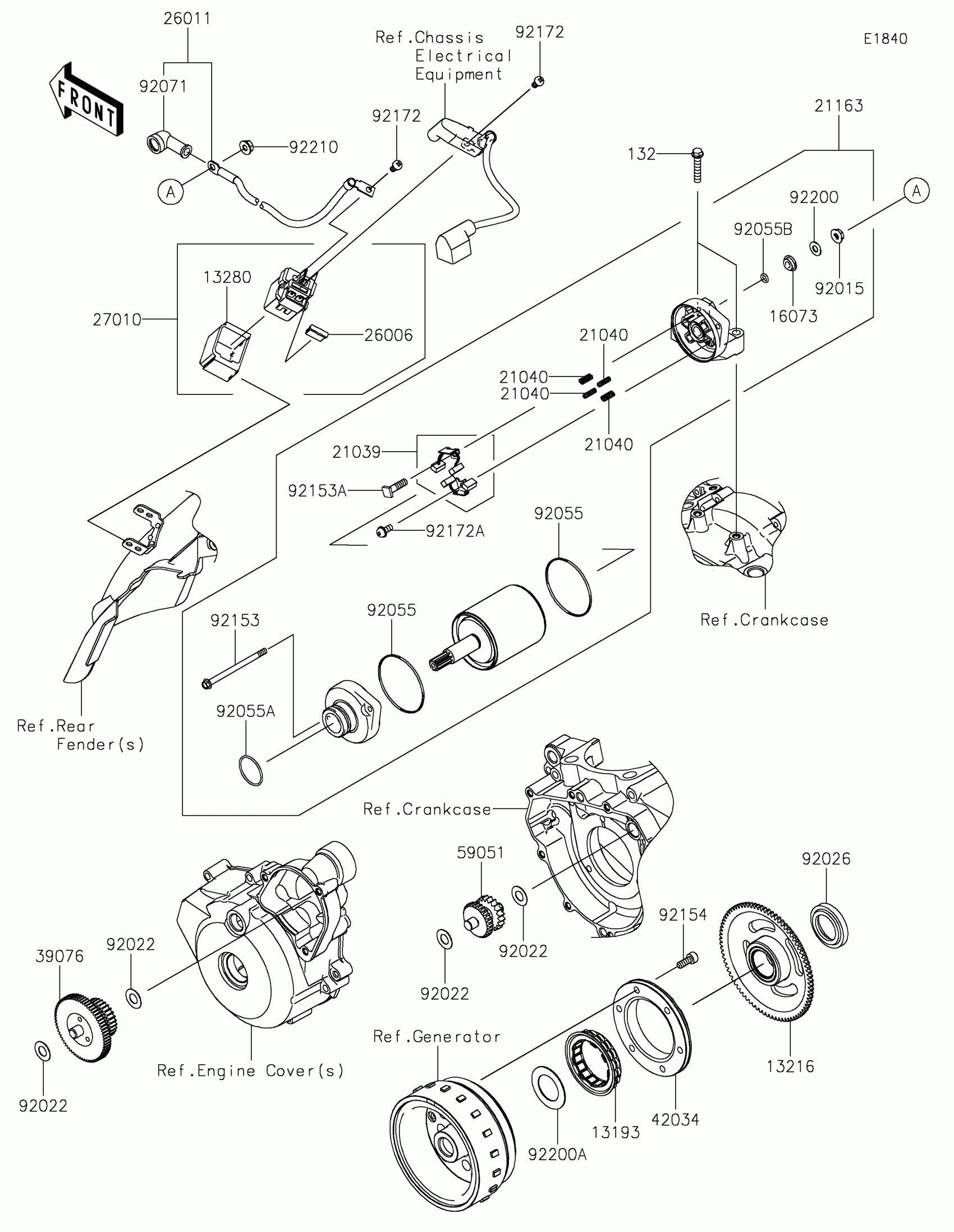

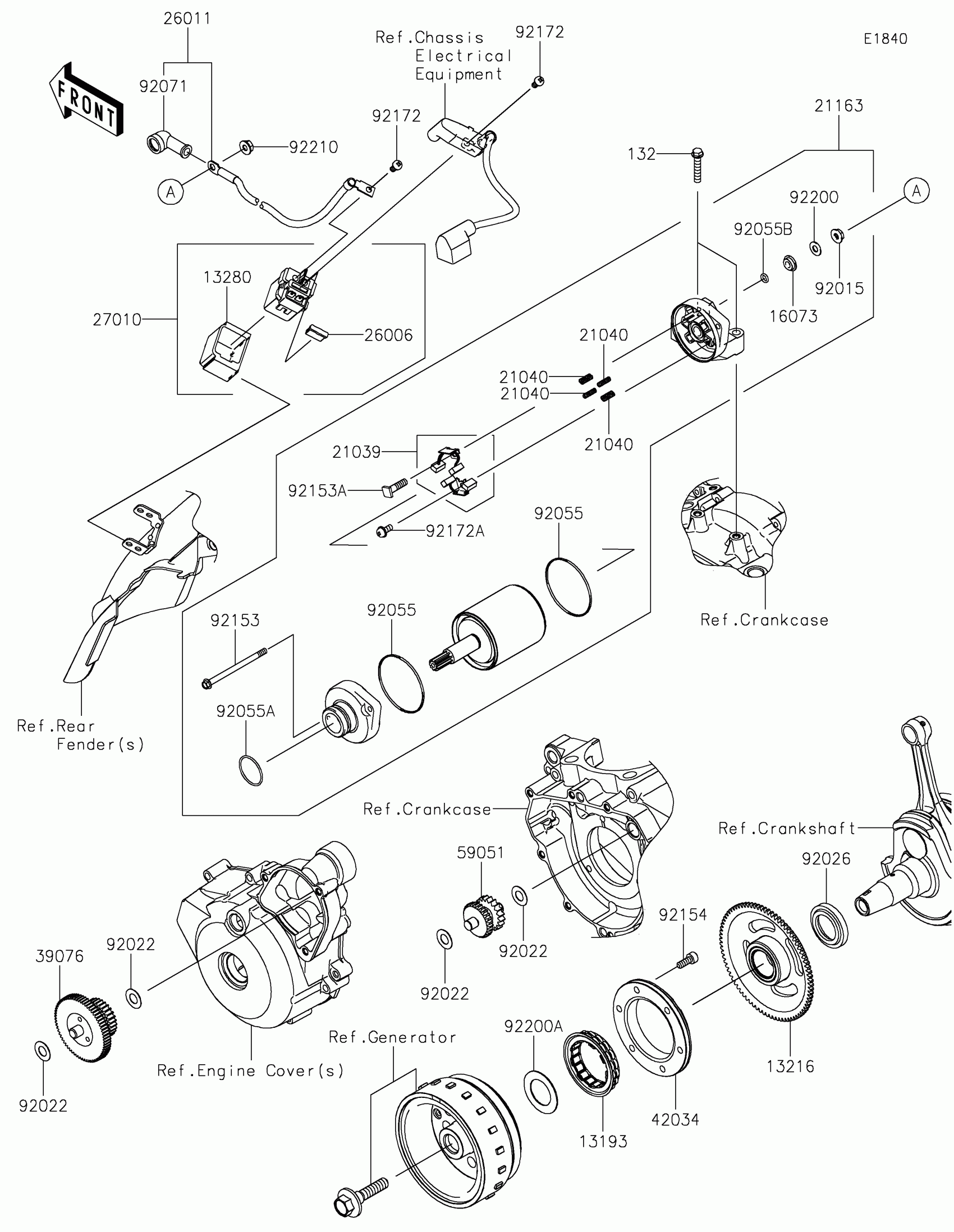

Kawasaki KLX®300SM Starter Motor Diagram

CLUTCH-ASSY-ONEWAY

BOLT-FLANGED-SMALL,6X30

GEAR-COMP,ONEWAY CLUTCH

HOLDER

INSULATOR

BRUSH,CARBON

SPRING-BRUSH

STARTER-ELECTRIC

FUSE,BLADE,20A,YELLOW

WIRE-LEAD,STARTER

SWITCH

LIMITER,STARTER IDLE GEAR

COUPLING

GEAR-SPUR,IDLE

NUT,STARTER MOTOR

WASHER,10.2X20X0.5

SPACER

RING-O

RING-O

RING-O,4.5X2.0

GROMMET

BOLT

BOLT

BOLT,SOCKET,6X16

SCREW-PAN-WS-CROS,5X10

SCREW

WASHER

WASHER,27.2X44X1

NUT,6MM
