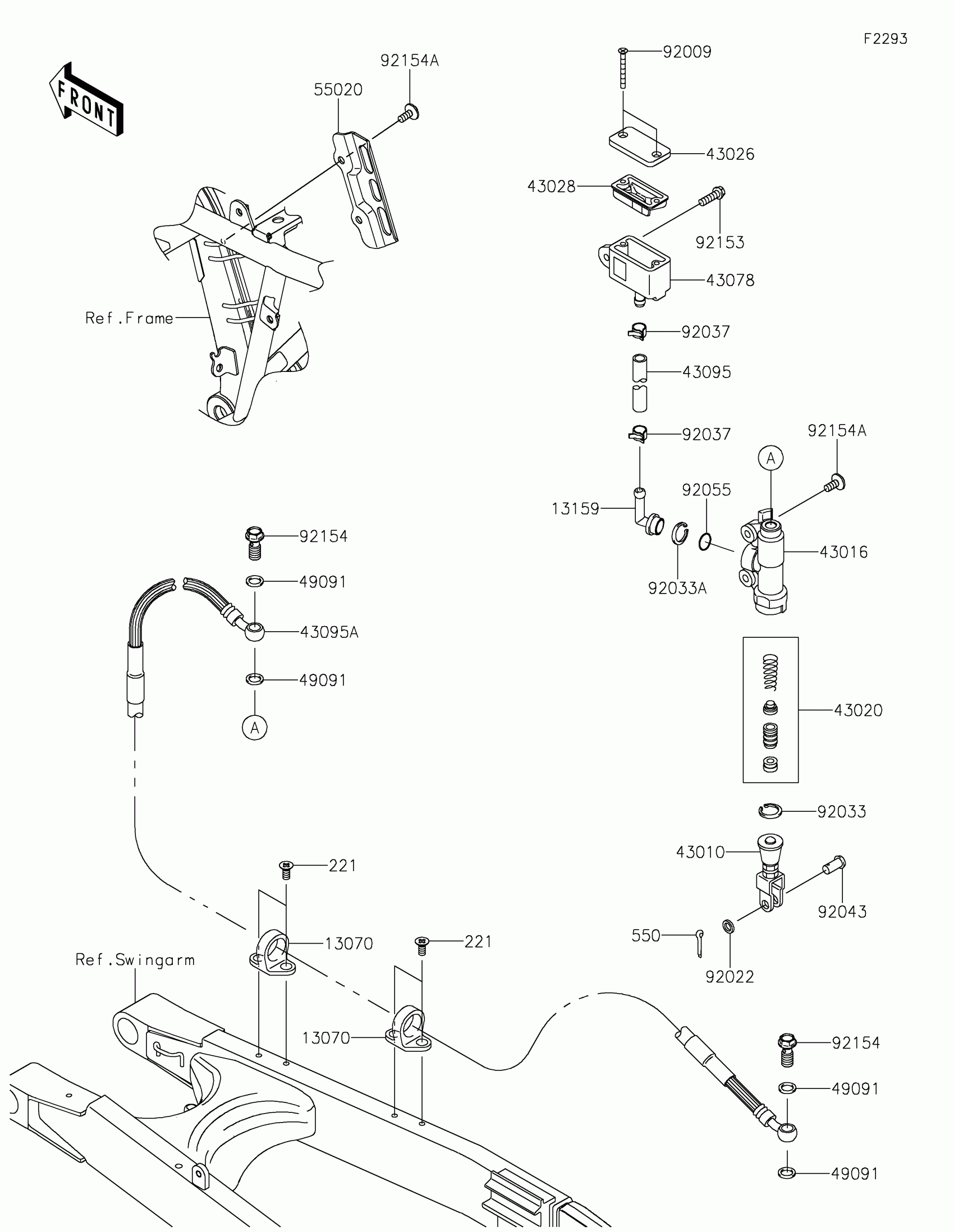

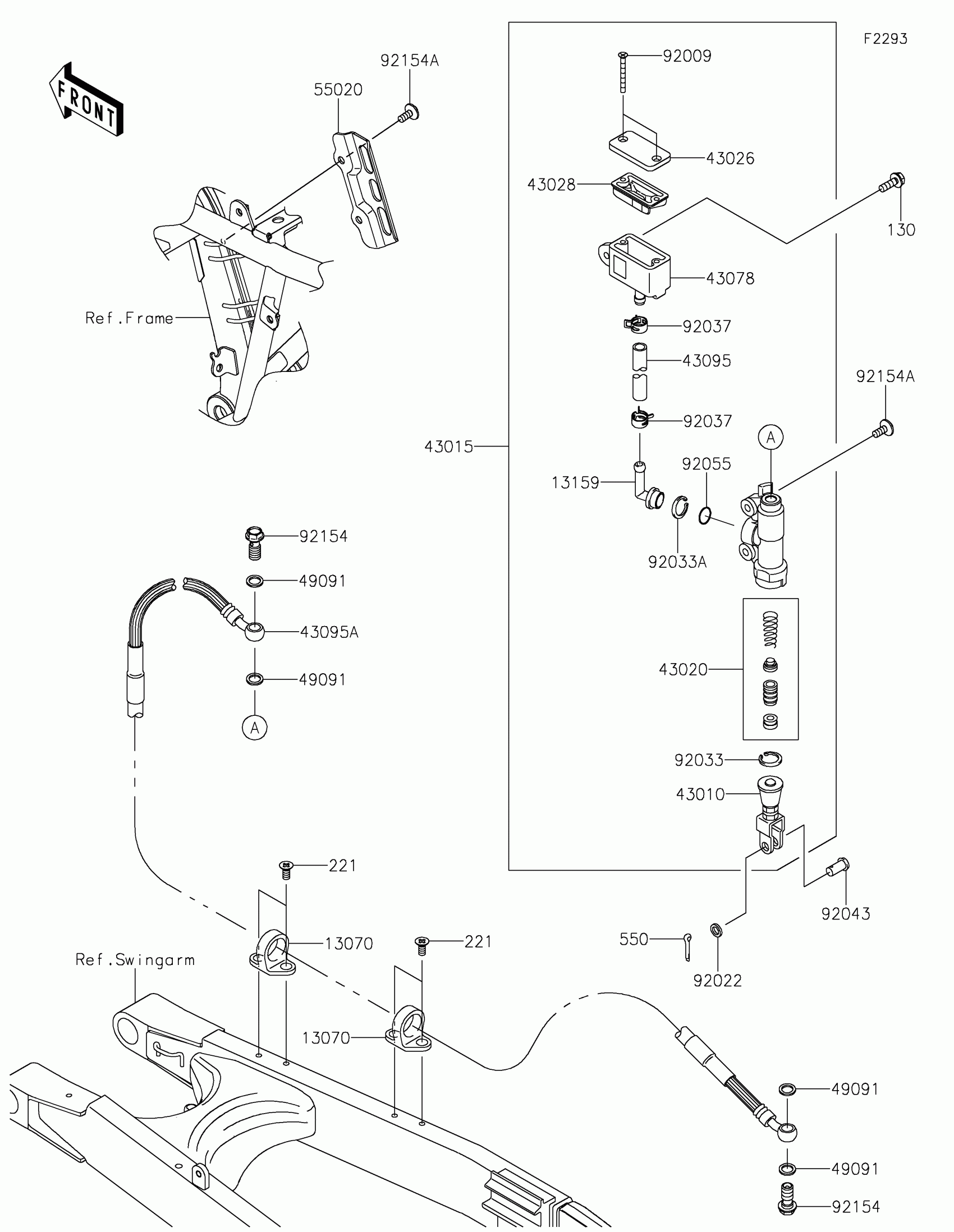

Kawasaki KLX®300SM Rear Master Cylinder Diagram
#
Description
Price
13070
GUIDE,HOSE
13070-1144
$8.03
13159
CONNECTOR
13159-1056
$14.10
43010
ROD-ASSY-BRAKE
43010-1068
$51.24
43015
CYLINDER-ASSY-MASTER,RR
43015-0128
$444.37
43020
PISTON-COMP-BRAKE
43020-1094
$65.22
43026
CAP-BRAKE
43026-1075
$13.61
43028
DIAPHRAGM
43028-1067
$18.72
43078
RESERVOIR
43078-1189
$30.34
43095
HOSE-BRAKE,RR MASTER CYLINDER
43095-0451
$17.12
43095A
HOSE-BRAKE,RR
43095-0691
$94.22
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
55020
GUARD,RR BRAKE RESERVOIR HOSE
55020-1489
$15.87
92009
SCREW,4X40
92009-1596
$3.94
92022
WASHER,8.5X13X1
92022-1028
$3.92
92033
RING-SNAP,20.9X24.6X1.2
92033-0079
$7.78
92033A
RING-SNAP,20.5MM
92033-1186
$4.96
92037
CLAMP
92037-1710
$9.91
92043
PIN
92043-0004
$11.16
92055
RING-O,14.8X2.4
92055-0741
$3.71
92154
BOLT,FLANGED,10X23
92154-0732
$5.05
92154A
BOLT,SOCKET,6X14
92154-2735
$1.69
130
BOLT-FLANGED,6X18
130BA0618
$1.54
221
SCREW-CSK-CROS,6X10
221AA0610
$3.67
550
PIN-COTTER,2.0X15
550AA2015
$1.12
