Description

Price

11012

CAP,AXLE

11012-1581

$4.88

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.81

41034

DRUM-ASSY,REAR BRAKE,BLACK

41034-0053-18R

$483.13

41068

AXLE,RR,20X250

41068-0602

$82.45

42041

SPROCKET-HUB,37T

42041-0184

$60.59

550

PIN-COTTER,3.0X25

550AA3025

$0.59

92015

NUT,LOCK,20MM

92015-1770

$28.80

92033

RING-SNAP,42MM

92033-1041

$4.64

92045

BEARING-BALL,6004X8JRLLX2/3A

92045-1239

$33.49

92049

SEAL-OIL,BJNC2 25425

92049-1203

$16.78

92057

CHAIN,DRIVE,EK520SRO2X104L

92057-0770

$172.89

92058

JOINT-CHAIN,DRIVE

92058-1102

$11.43

92152

COLLAR,REAR BRAKE DRUM,L=105

92152-0529

$15.76

92152A

COLLAR,RR AXLE,LH,L=22

92152-0734

$38.33

92152B

COLLAR,RR AXLE,RH,L=20

92152-0735

$38.33

92154

BOLT,SOCKET,8X28

92154-4183

$1.20

92200

WASHER,20.2X36X2

92200-1146

$4.42

92210

NUT,FLANGED,LOCK,8MM

92210-0493

$5.80

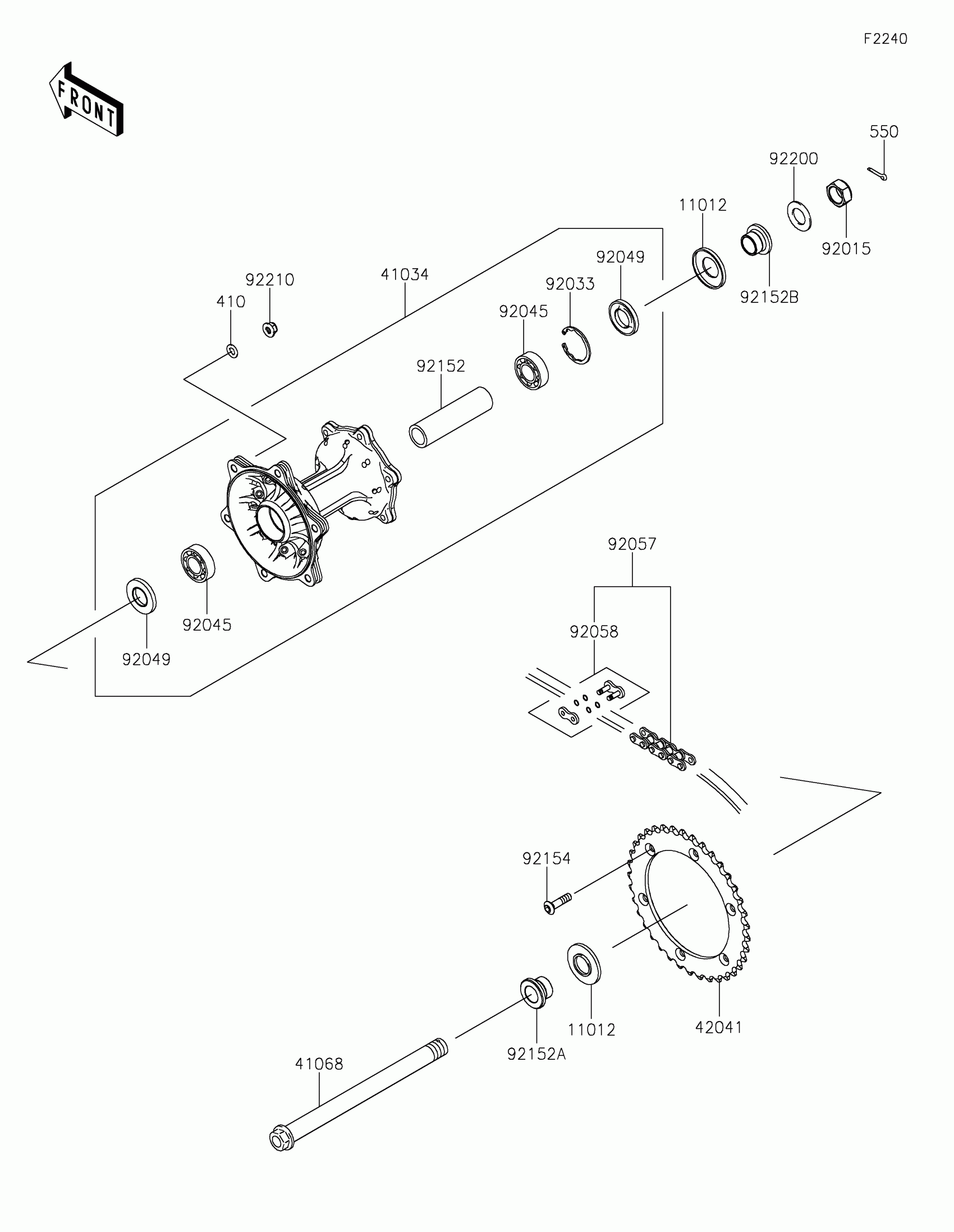

Kawasaki KLX®300SM Rear Hub Diagram
