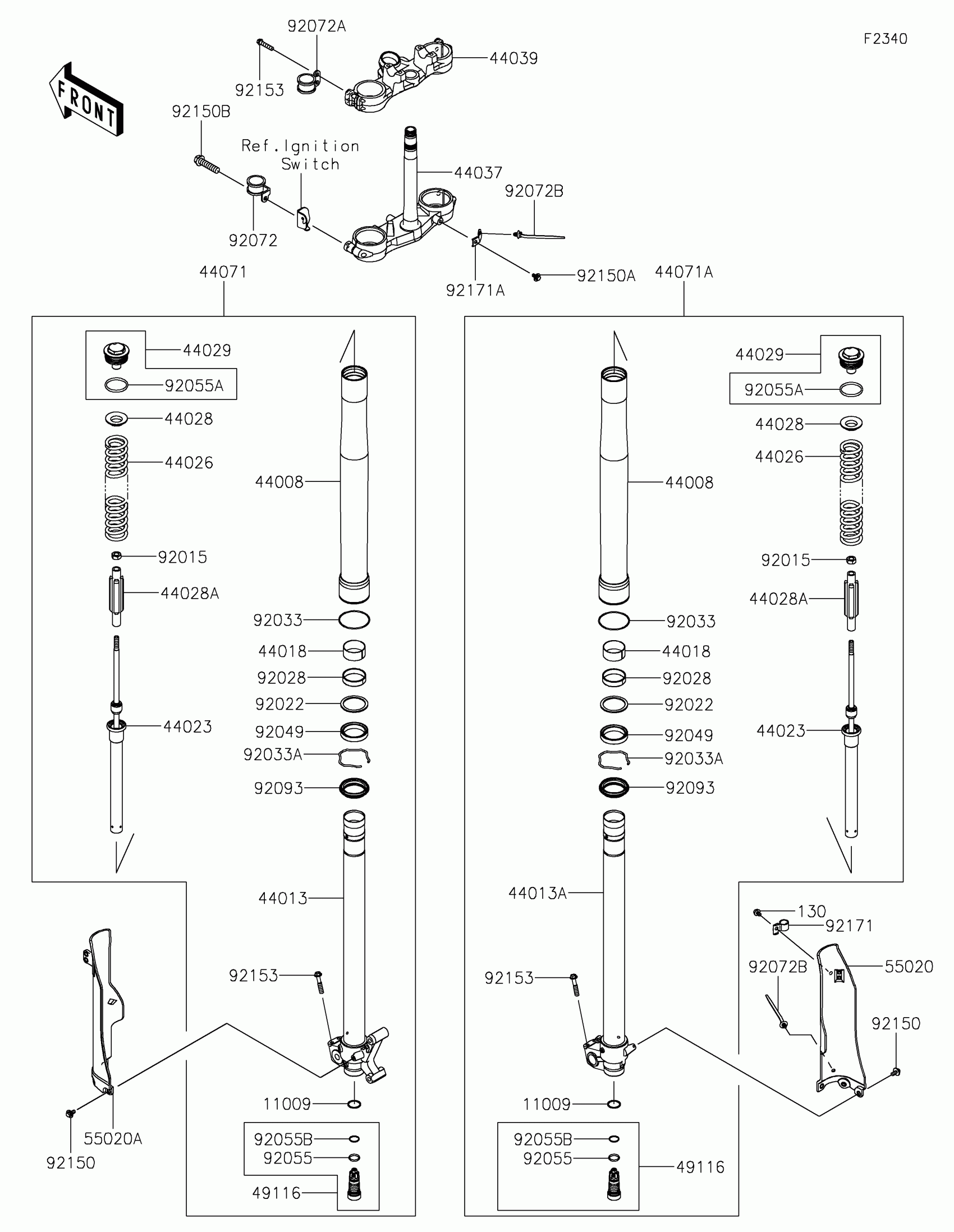

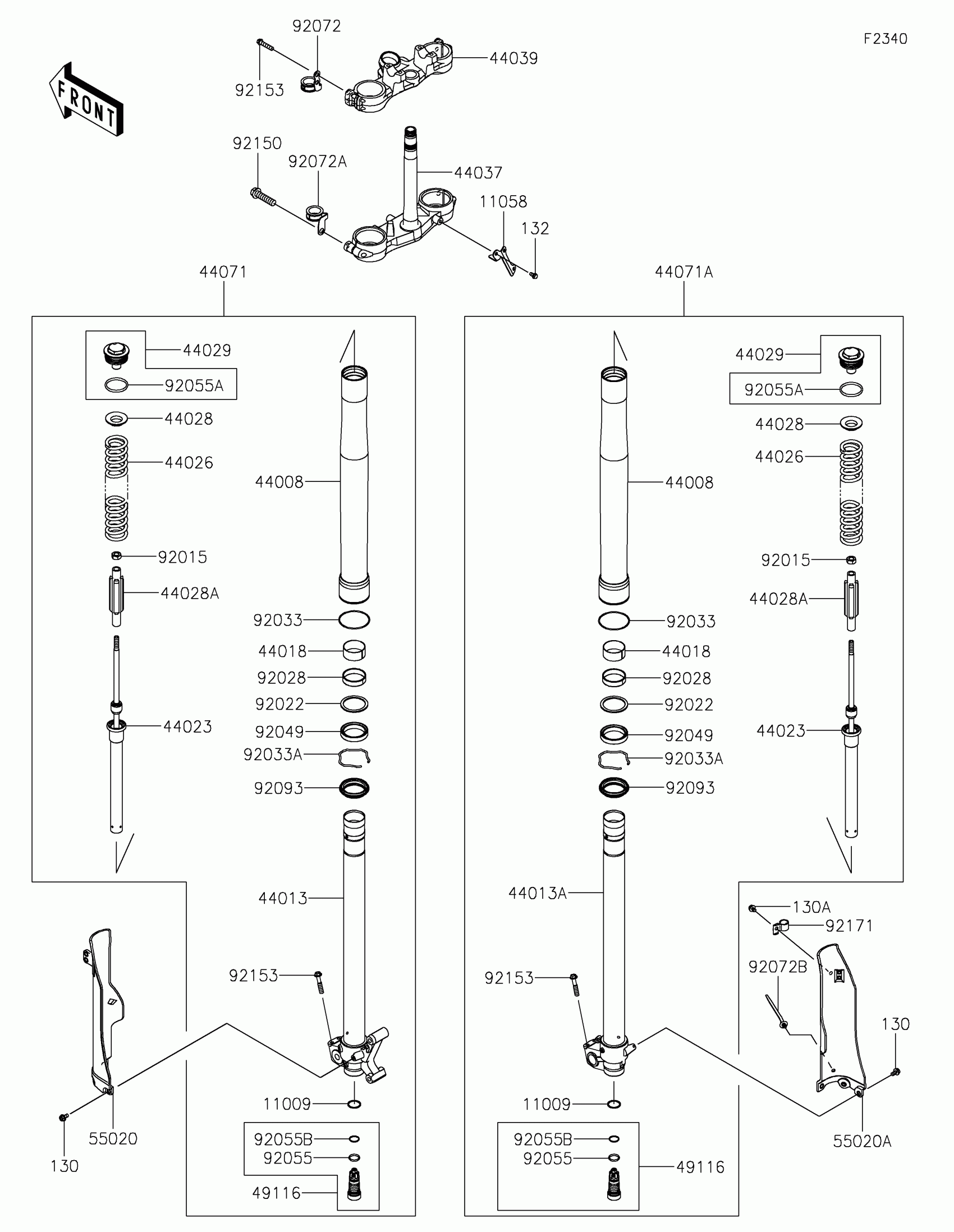

Kawasaki KLX®300SM Front Fork Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1592

$4.64

130

BOLT-FLANGED,6X8

130BB0608

$5.31

44008

PIPE-FORK OUTER

44008-0103

$471.03

44013

PIPE-FORK INNER,LH

44013-0377

$349.76

44013A

PIPE-FORK INNER,RH

44013-0378

$349.76

44018

PISTON-FORK,INNER PIPE

44018-1056

$25.19

44023

CYLINDER-SET-FORK

44023-0063

$389.06

44026

SPRING-FRONT FORK

44026-0109

$101.17

44028

GUIDE-FORK SPRING

44028-1081

$11.59

44028A

GUIDE-FORK SPRING

44028-1084

$12.25

44029

SEAT-FORK SPRING

44029-0028

$119.52

44037

HOLDER-FORK UNDER,F.S.BLACK

44037-0078-18R

$611.07

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0059-18R

$252.10

44071

DAMPER-ASSY,FORK,LH

44071-1475

$1,060.18

44071A

DAMPER-ASSY,FORK,RH

44071-1476

$1,060.18

49116

VALVE-ASSY,FORK

49116-1168

$128.66

55020

GUARD,FORK,RH,EBONY

55020-0320-6C

$50.33

55020A

GUARD,FORK,LH,EBONY

55020-0484-6C

$50.33

92015

NUT

92015-1839

$18.34

92022

WASHER

92022-1299

$6.55

92028

BUSHING

92028-1581

$17.61

92033

RING-SNAP

92033-0080

$4.47

92033A

RING-SNAP

92033-1077

$3.78

92049

SEAL-OIL

92049-0007

$20.86

92055

RING-O

92055-1156

$1.08

92055A

RING-O,FORK,AIR TUBE

92055-1333

$4.53

92055B

RING-O,FORK VALVE

92055-1502

$7.36

92072

BAND

92072-1267

$19.64

92072A

BAND

92072-1283

$24.81

92072B

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92093

SEAL,FORK OUTER TUBE

92093-1342

$14.12

92150

BOLT,6X14

92150-1340

$3.86

92150A

BOLT,6X12

92150-1435

$3.29

92150B

BOLT,FLANGED,8X40

92150-1446

$12.12

92153

BOLT,8X40

92153-0020

$4.24

92171

CLAMP

92171-1833

$8.25

92171A

CLAMP,SPEED SENSOR HARNESS

92171-1906

$11.17
