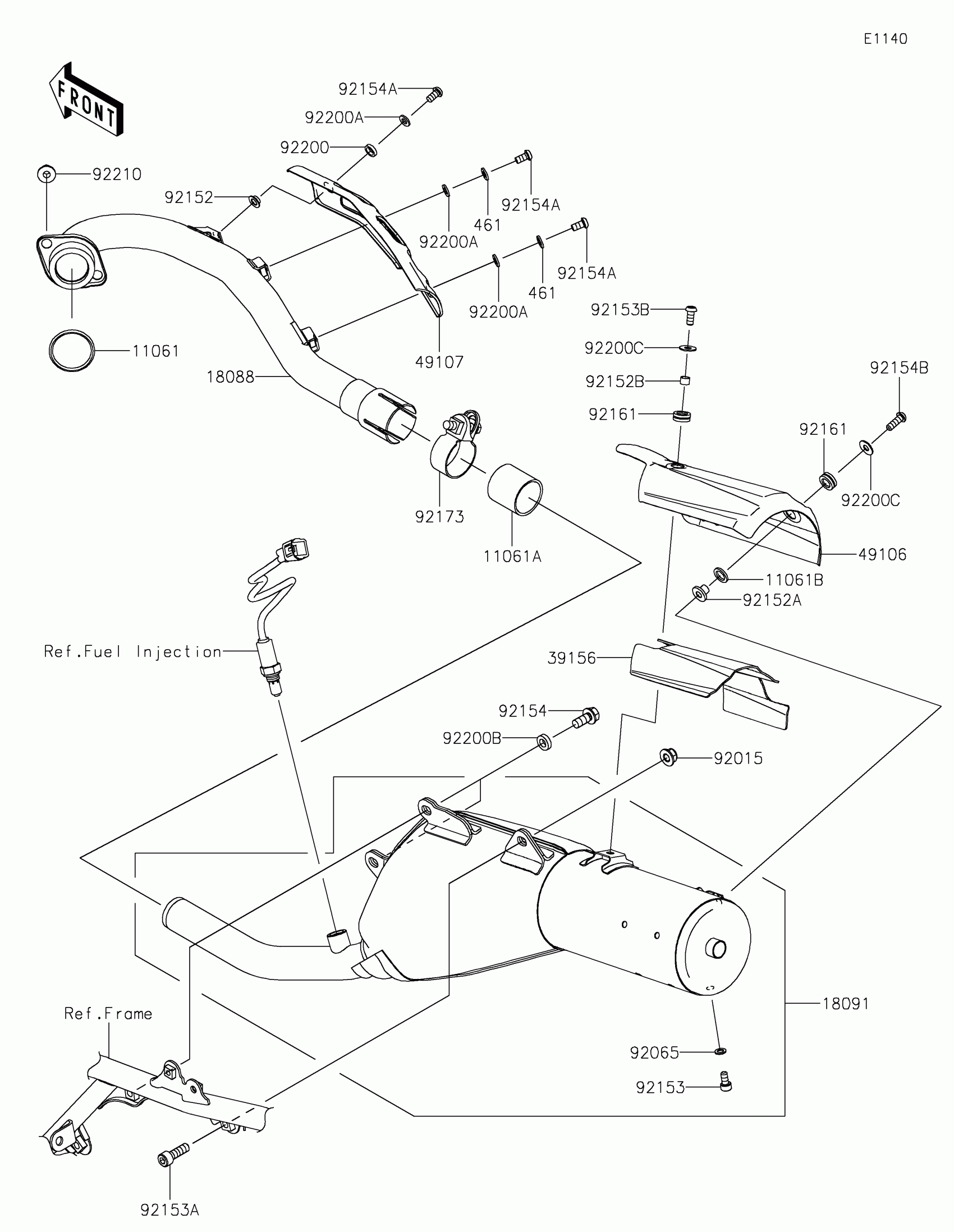

Kawasaki KLX®300SM Muffler(s) Diagram

#

Description
Price

11061

GASKET,EX PIPE

11061-0027

$7.60

11061A

GASKET,EXHAUST PIPE CONNECTING

11061-1055

$16.50

11061B

GASKET

11061-1398

$2.00

18088

PIPE-EXHAUST

18088-1475

$157.70

18091

BODY-COMP-MUFFLER

18091-1196

$835.44

39156

PAD,MUFFLER COVER

39156-2613

$24.19

461

WASHER-SPRING,6MM

461S0600

$1.07

49106

COVER-MUFFLER

49106-0856

$216.13

49107

COVER-EXHAUST PIPE

49107-0826

$54.07

92015

NUT,8MM

92015-1432

$6.57

92065

GASKET

92065-096

$4.65

92152

COLLAR,6.2X8.5X13

92152-2662

$5.07

92152A

COLLAR

92152-2814

$3.04

92152B

COLLAR,6.5X8.5X6

92152-2817

$4.36

92153

BOLT,SOCKET,6X12

92153-1347

$2.97

92153A

BOLT,SOCKET,8X25

92153-1350

$3.39

92153B

BOLT,SOCKET,6X14

92153-1886

$2.97

92154

BOLT-FLANGED,8X14

92154-3782

$1.94

92154A

BOLT,SOCKET,6X11.5

92154-4087

$1.11

92154B

BOLT,SOCKET,6X18

92154-4279

$1.59

92161

DAMPER

92161-1475

$5.33

92173

CLAMP,38MM

92173-0997

$24.01

92200

WASHER,8.8X12.5X3

92200-2306

$6.26

92200A

WASHER,6.2X12X1.6

92200-2320

$0.64

92200B

WASHER,8.1X15X4.0

92200-2482

$3.86

92200C

WASHER,6.5X16X1.0

92200-3712

$3.73

92210

NUT,8MM

92210-0076

$5.48
