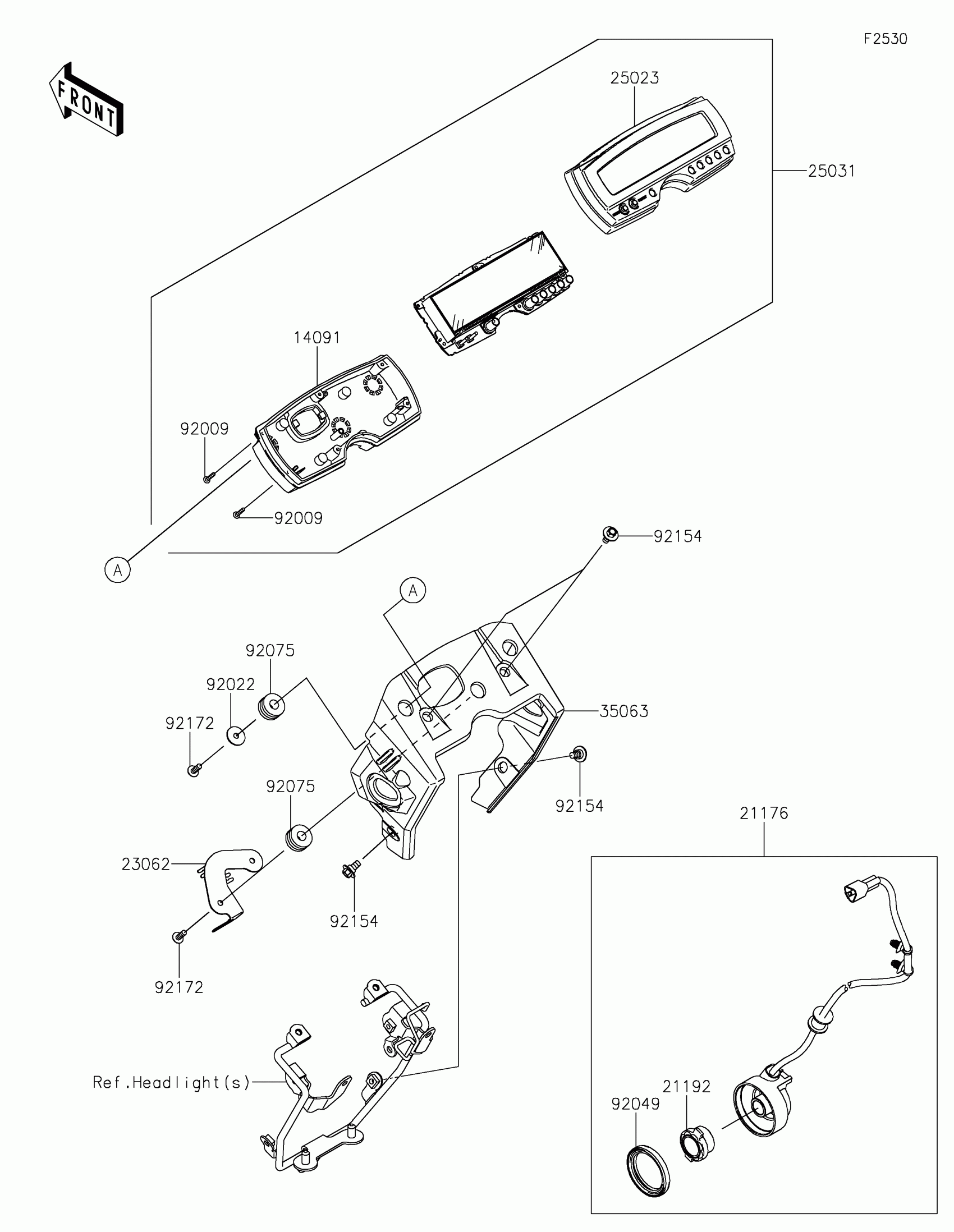

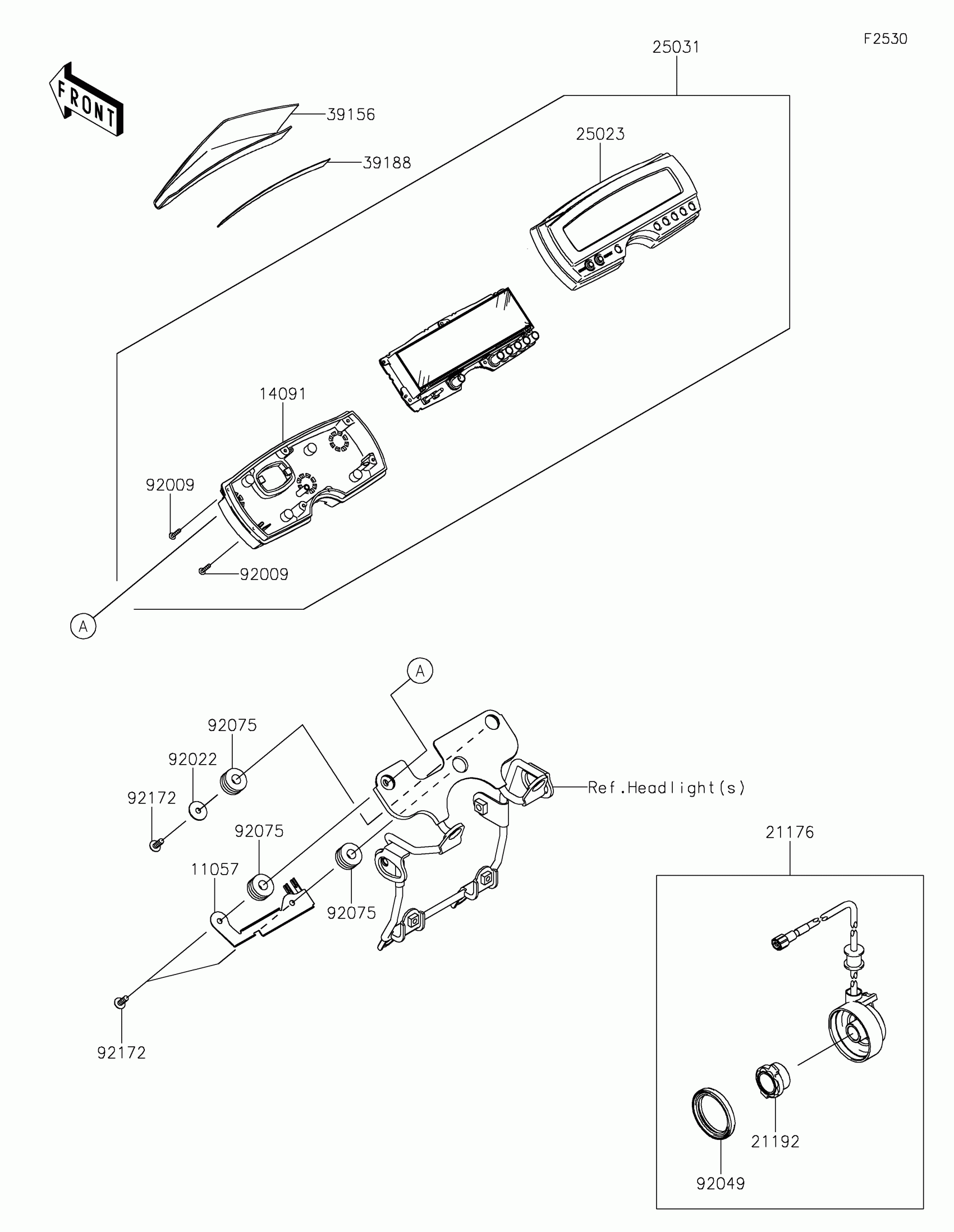

Kawasaki KLX®300SM Meter(s) Diagram

Description

Price

11057

BRACKET

11057-7351

$5.06

14091

COVER,METER,LWR

14091-0874

$231.01

21176

SENSOR,SPEED

21176-0757

$413.17

21192

MAGNET,SPEED SENSOR

21192-0004

$36.12

25023

COVER-METER CASE,UPP

25023-0147

$147.30

25031

METER-ASSY,LCD

25031-0943

$685.66

39156

PAD,HEAD LAMP

39156-0478

$11.54

39188

TAPE

39188-0012

$8.37

92009

SCREW,TAPPING,3X16

92009-1391

$3.65

92022

WASHER,5.5X20X1.2

92022-104

$4.31

92049

SEAL-OIL,METER GEAR CASE

92049-1172

$17.95

92075

DAMPER,10X24X12

92075-1690

$5.00

92172

SCREW,TAPPING,5X14

92172-0265

$1.34
