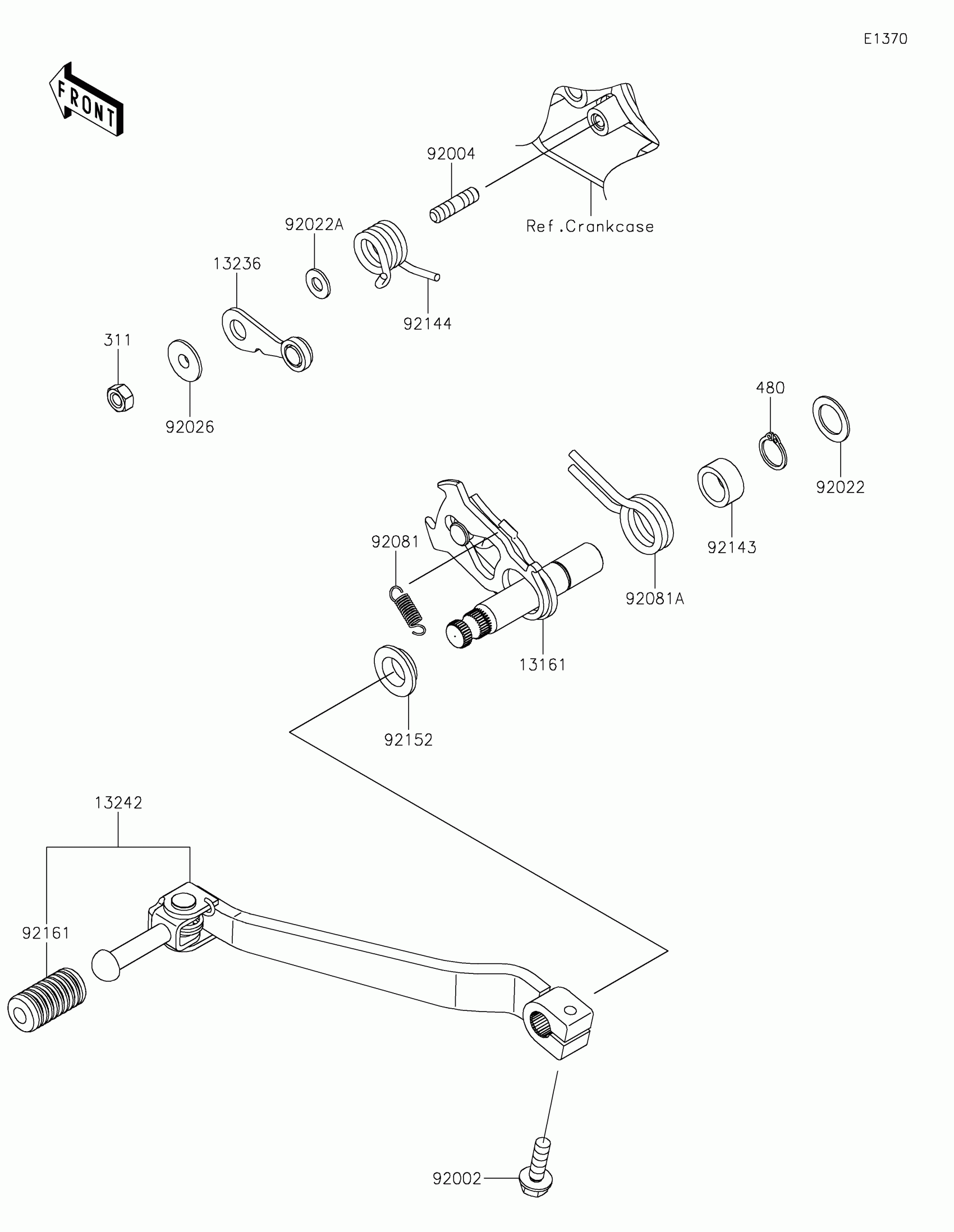

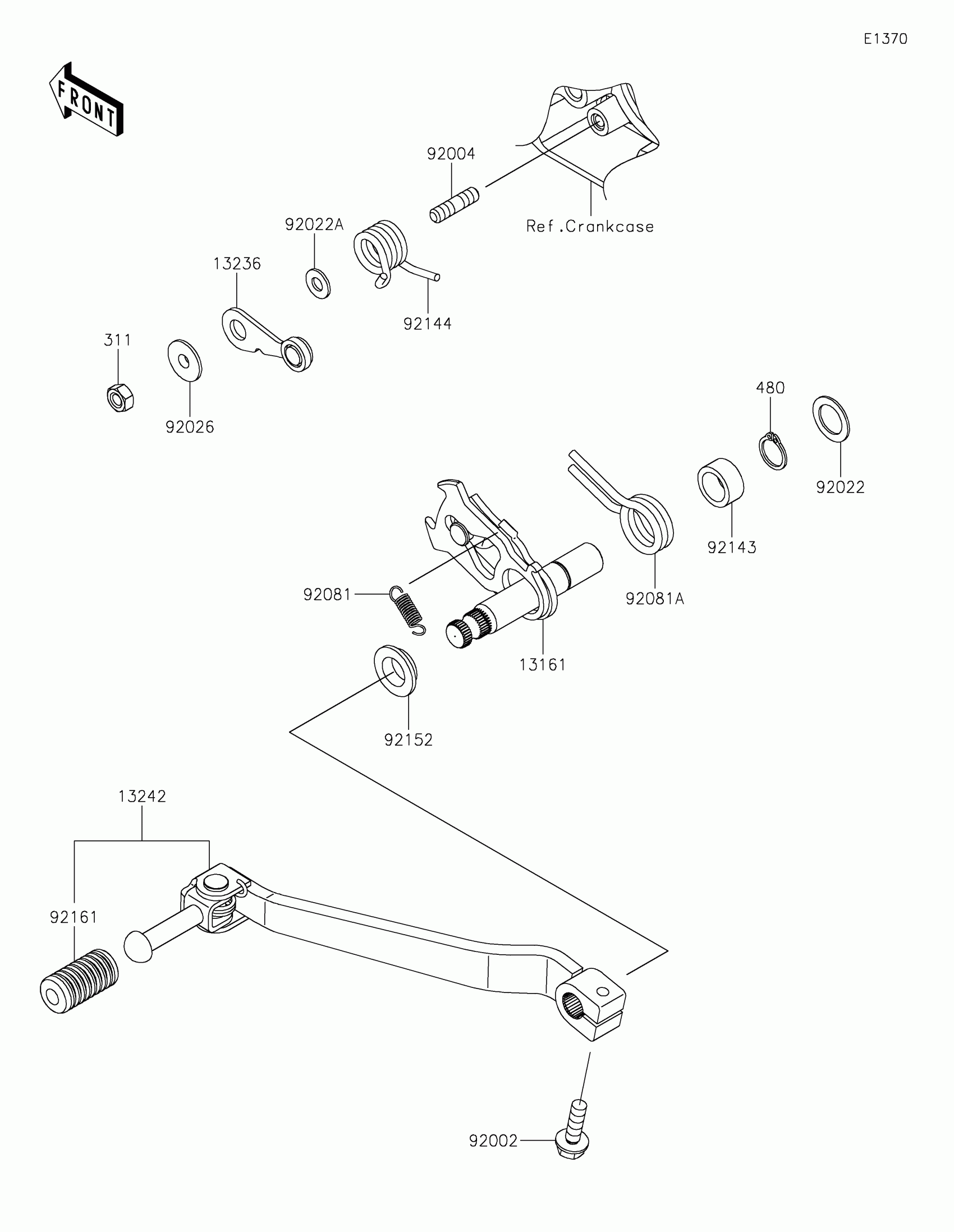

Kawasaki KLX®300SM Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-1214

$66.06

13236

LEVER-COMP,NEUTRAL POSITION

13236-1209

$18.36

13242

LEVER-ASSY-CHANGE,PEDAL

13242-0178

$57.72

311

NUT-HEX,6MM

311BA0600

$1.58

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

92002

BOLT,6X20

92002-1237

$3.29

92004

STUD,6X12

92004-0032

$1.54

92022

WASHER,13.3X20X1

92022-1496

$2.99

92022A

WASHER,6X12.8X1.2

92022-1827

$3.57

92026

SPACER

92026-1217

$4.18

92081

SPRING,CHANGE LEVER

92081-076

$4.14

92081A

SPRING,TENSION

92081-1129

$7.18

92143

COLLAR

92143-1148

$3.57

92144

SPRING

92144-1695

$7.47

92152

COLLAR

92152-1075

$3.19

92161

DAMPER,CHANGE PEDAL

92161-2381

$6.18
