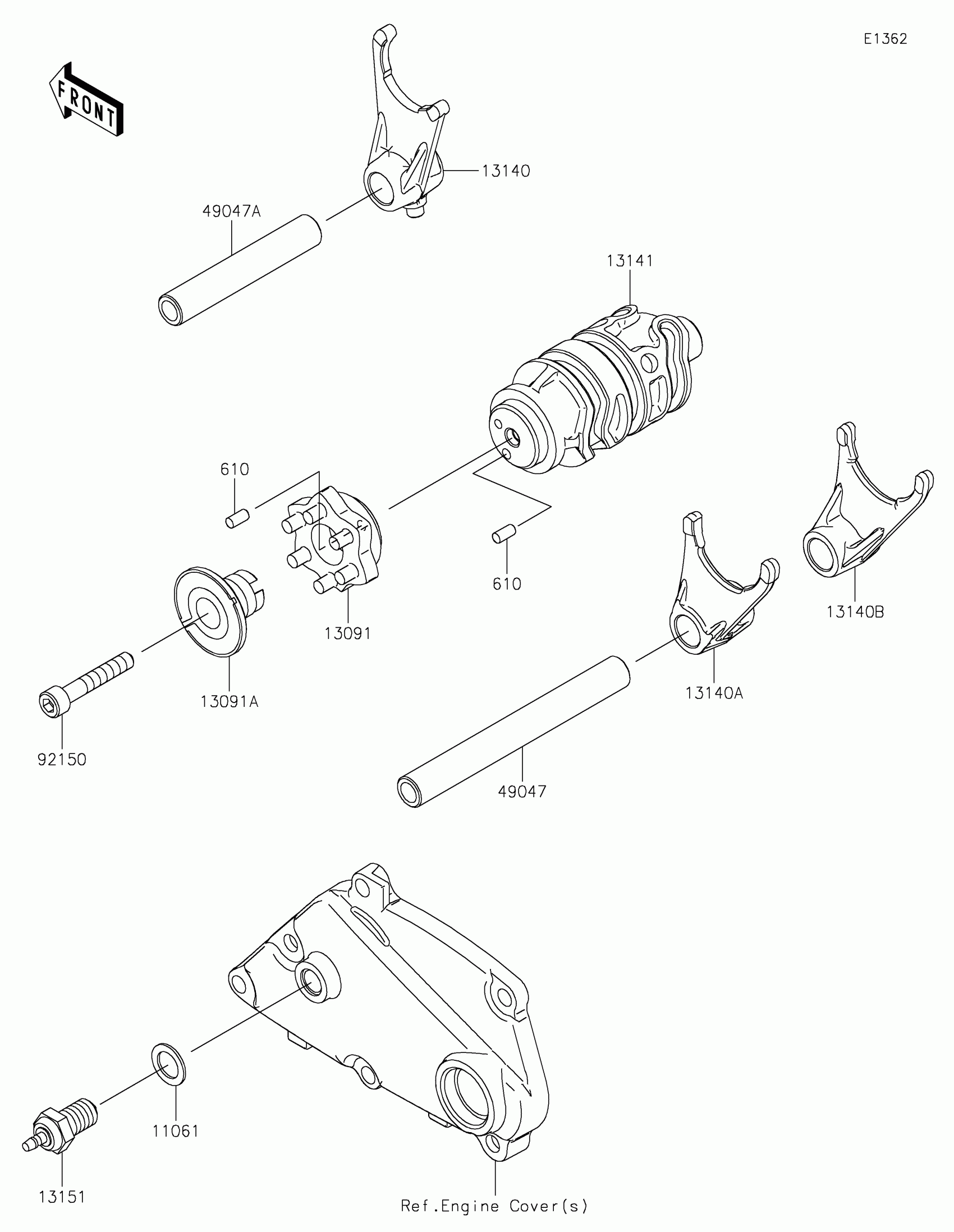

Kawasaki KLX®300SM Gear Change Drum/Shift Fork(s) Diagram

Description

Price

11061

GASKET,10.5X16X1

11061-0373

$2.79

13091

HOLDER,CHANGE DRUM

13091-1856

$42.03

13091A

HOLDER,CHANGE DRUM

13091-1862

$31.47

13140

FORK-SHIFT,5TH&TOP

13140-1216

$86.34

13140A

FORK-SHIFT,2ND&3RD

13140-1217

$86.34

13140B

FORK-SHIFT,LOW&4TH

13140-1218

$86.34

13141

DRUM-CHANGE

13141-0039

$119.11

13151

SWITCH-COMP,NEUTRAL

13151-1102

Unavailable

49047

ROD-SHIFT,L=106.7

49047-1056

$21.76

49047A

ROD-SHIFT,L=71.7

49047-1057

$16.34

610

ROLLER,4X8

610A0408

$3.29

92150

BOLT,SOCKET,6X35

92150-1484

$4.67
