Description

Price

13086

WHEEL-CLUTCH

13086-0004

$47.08

13087

HUB-CLUTCH

13087-0045

$134.60

13088

PLATE-FRICTION

13088-0042

$18.81

13089

PLATE-CLUTCH

13089-1085

$13.74

13089A

PLATE-CLUTCH,T=1.6

13089-1094

$12.80

13089B

PLATE-CLUTCH,T=2.0

13089-1116

Unavailable

13089C

PLATE-CLUTCH,T=1.2

13089-1117

Unavailable

13091

HOLDER,CLUTCH SPRING

13091-1683

$22.09

13095

HOUSING-COMP-CLUTCH

13095-0576

$432.51

13114

PUSHER-CLUTCH

13114-1068

$25.93

13236

LEVER-COMP

13236-0158

Unavailable

13280

HOLDER,CLUTCH PUSHER

13280-0812

$14.10

92015

NUT,16MM

92015-1581

$19.64

92022

WASHER,16.3X29X1.75

92022-1356

$7.34

92022A

WASHER,JUDDER SPRING

92022-1974

$15.16

92022B

WASHER,JUDDER SPRING SEAT

92022-1993

$15.16

92026

SPACER,20.3X36.6X2

92026-0725

$13.49

92045

BEARING-BALL,627

92045-1236

$19.97

92143

COLLAR

92143-1959

$29.87

92145

SPRING

92145-0637

$14.08

92154

BOLT,UPSET,5X35

92154-0065

$3.29

92200

WASHER,7X12.5X0.8

92200-0909

$3.86

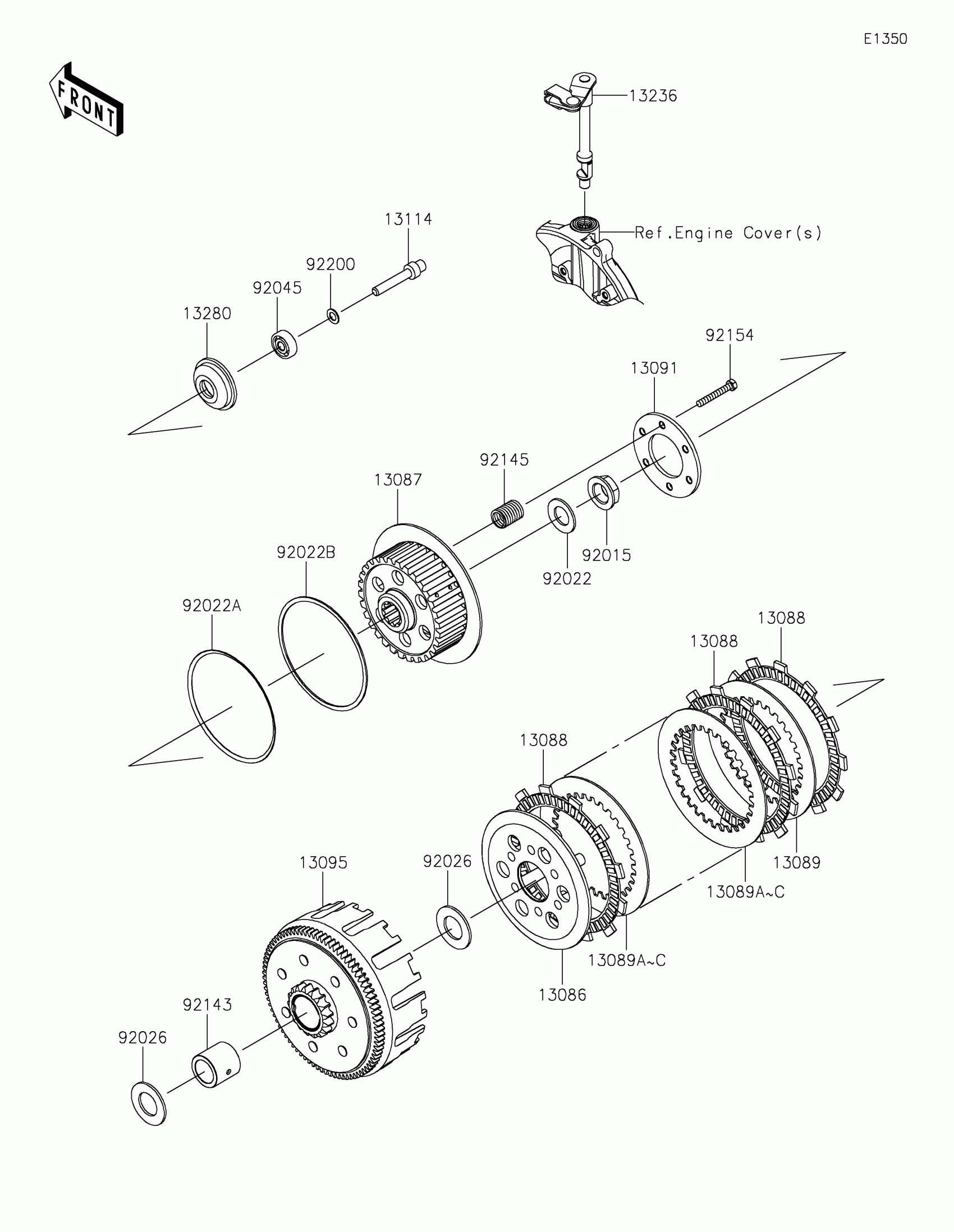

Kawasaki KLX®300SM Clutch Diagram

WHEEL-CLUTCH

HUB-CLUTCH

PLATE-FRICTION

PLATE-CLUTCH

PLATE-CLUTCH,T=1.6

PLATE-CLUTCH,T=2.0

PLATE-CLUTCH,T=1.2

HOLDER,CLUTCH SPRING

HOUSING-COMP-CLUTCH

PUSHER-CLUTCH

LEVER-COMP

HOLDER,CLUTCH PUSHER

NUT,16MM

WASHER,16.3X29X1.75

WASHER,JUDDER SPRING

WASHER,JUDDER SPRING SEAT

SPACER,20.3X36.6X2

BEARING-BALL,627

COLLAR

SPRING

BOLT,UPSET,5X35

WASHER,7X12.5X0.8
