Description

Price

11013

ELEMENT-AIR FILTER

11013-0030

$50.06

11056

BRACKET,ECU

11056-1515

$11.20

11065

CAP,AIR FILTER

11065-0232

$30.20

13280

HOLDER

13280-0252

$52.52

13280A

HOLDER

13280-0263

$54.80

14069

BREATHER

14069-1051

$10.19

14073

DUCT,A/C-THROBO

14073-0158

$41.13

14073A

DUCT,INTAKE

14073-0185

$53.06

16126

VALVE,AIR SWITCHING

16126-0033

$84.63

39156

PAD,A/F CASE

39156-2429

$36.70

39156A

PAD,A/F CASE

39156-2723

$5.50

702

TUBE-RUBBER,7X10X70

702A0770

$6.16

92005

FITTING

92005-1379

$5.29

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP

92037-1860

Unavailable

92066

PLUG,DRAIN

92066-1211

$8.51

92093

SEAL,3X520

92093-0101

$28.46

92093A

SEAL,4X535

92093-0102

$13.06

92153

BOLT,6X12

92153-0503

$2.80

92153A

BOLT,FLANGED,6X14

92153-0936

$2.97

92153B

BOLT,WING,6X45

92153-1921

$7.91

92153C

BOLT,FLANGED,6X12

92153-1922

$2.55

92161

DAMPER,ASWV

92161-0499

$7.24

92171

CLAMP

92171-0643

$12.29

92171A

CLAMP,62MM

92171-1687

$8.44

92171B

CLAMP

92171-1888

$3.19

92171C

CLAMP

92171-1890

$9.39

92172

SCREW,6X10

92172-0005

$2.41

92172A

SCREW,5X14

92172-0324

$3.71

92191

TUBE,7X10X300

92191-1556

$10.80

92192

TUBE,CAP-ASWV

92192-0433

$24.93

92192A

TUBE,ASWV-FITTING

92192-0434

$28.52

92192B

TUBE,FITTING-A/C

92192-0435

$29.16

92192C

TUBE,BREATHER

92192-0594

$9.96

92200

WASHER,6.5X20X1.6

92200-0411

$3.71

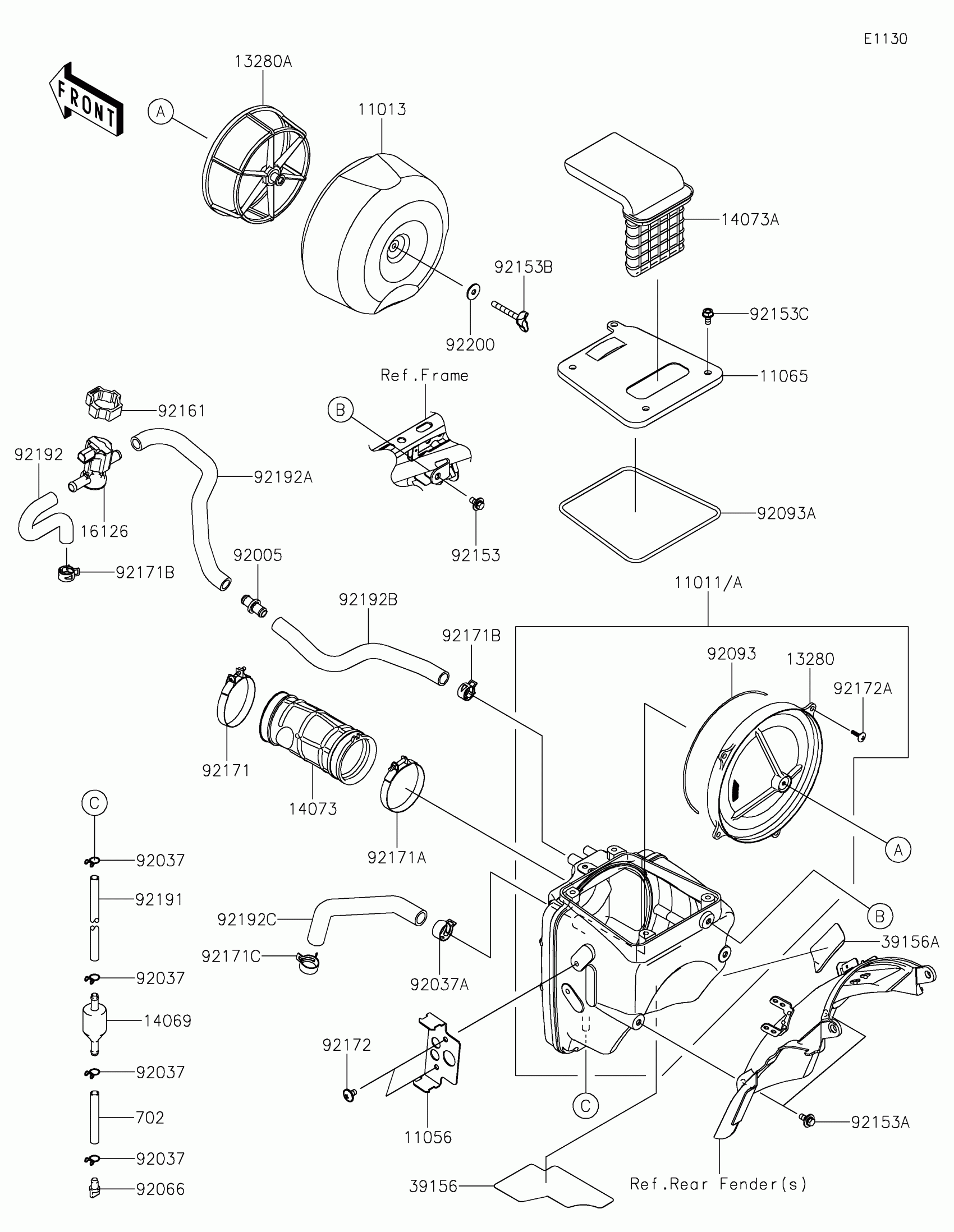

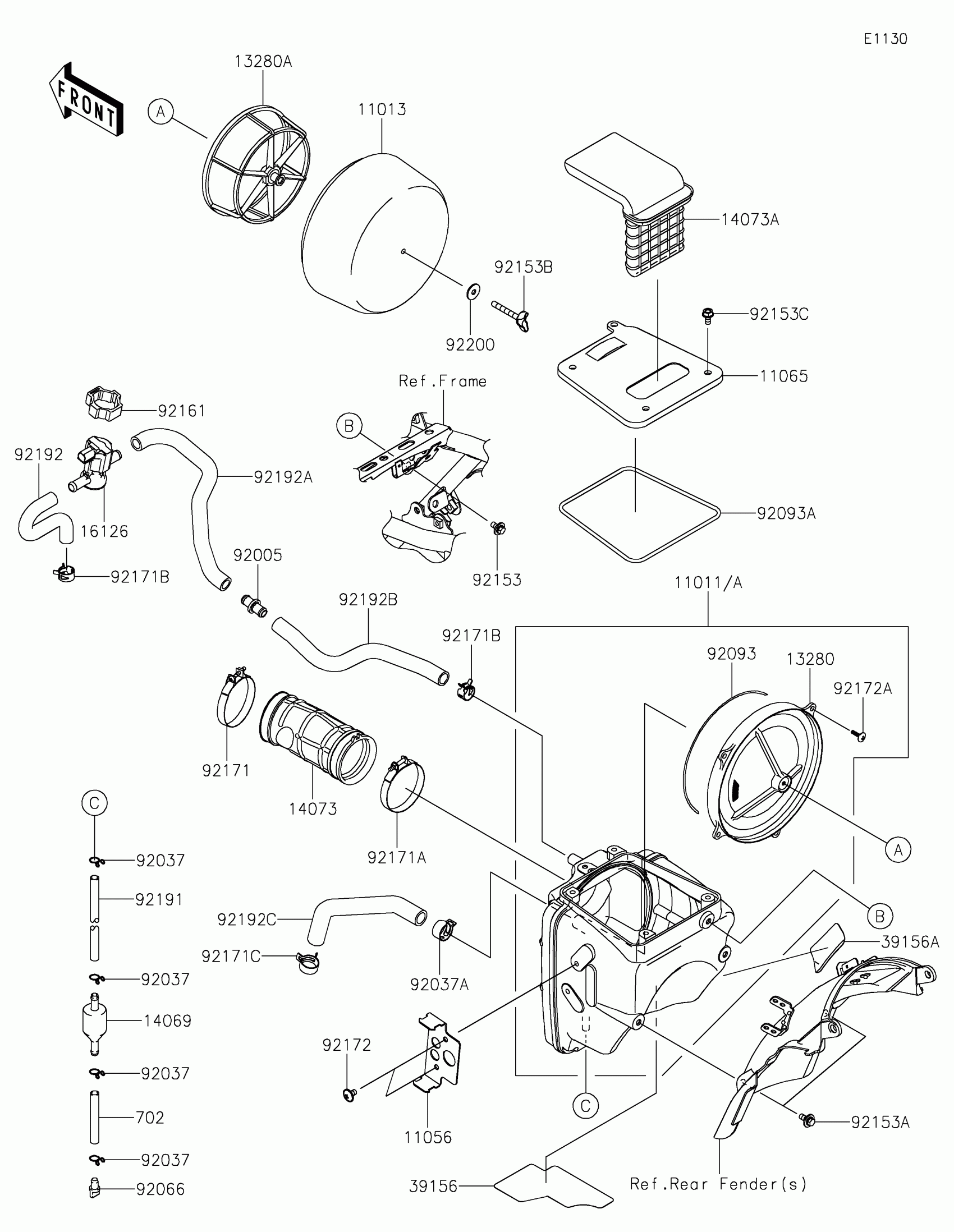

Kawasaki KLX®300SM Air Cleaner Diagram

ELEMENT-AIR FILTER

BRACKET,ECU

CAP,AIR FILTER

HOLDER

HOLDER

BREATHER

DUCT,A/C-THROBO

DUCT,INTAKE

VALVE,AIR SWITCHING

PAD,A/F CASE

PAD,A/F CASE

TUBE-RUBBER,7X10X70

FITTING

CLAMP,TUBE

CLAMP

PLUG,DRAIN

SEAL,3X520

SEAL,4X535

BOLT,6X12

BOLT,FLANGED,6X14

BOLT,WING,6X45

BOLT,FLANGED,6X12

DAMPER,ASWV

CLAMP

CLAMP,62MM

CLAMP

CLAMP

SCREW,6X10

SCREW,5X14

TUBE,7X10X300

TUBE,CAP-ASWV

TUBE,ASWV-FITTING

TUBE,FITTING-A/C

TUBE,BREATHER

WASHER,6.5X20X1.6
