Description

Price

11061

GASKET,RR DISK

11061-1343

$33.80

14079

HOLDER-ASSY,REAR CALIPER

14079-0030

$156.82

32085

STOPPER,PAD

32085-1386

$8.86

41080

DISC,RR,SILVER

41080-0116-CM

$290.09

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,RR,SILVER

43080-0237-GN

$349.12

43082

PAD-ASSY-BRAKE

43082-0090

$72.94

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92043

PIN,HANGER

92043-1507

$13.75

92043A

PIN

92043-1508

$13.75

92144

SPRING,PAD

92144-1819

$8.03

92150

BOLT,PLUG

92150-1692

$7.84

92150A

BOLT,DISC PLATE,8X15

92150-1811

$5.00

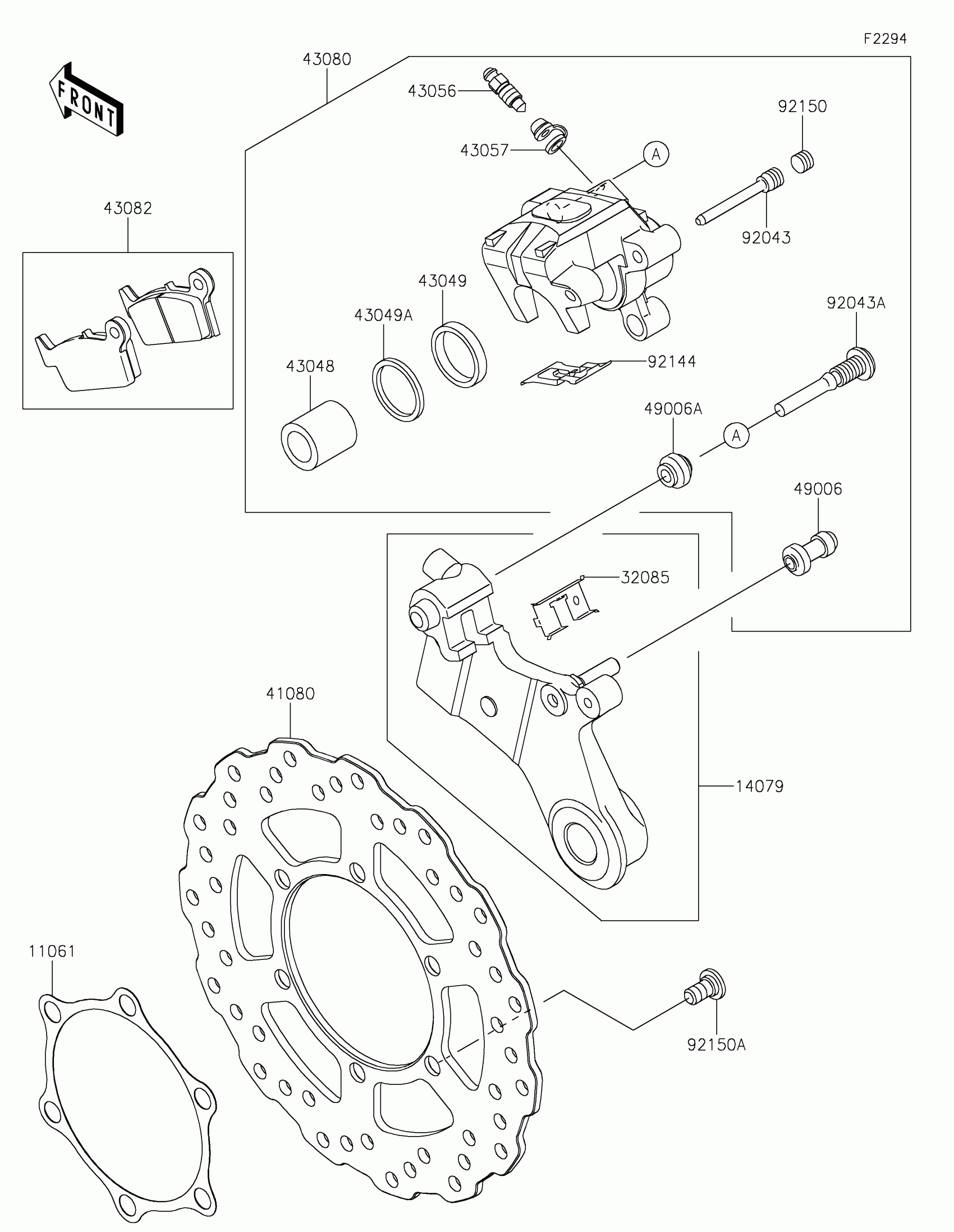

Kawasaki KLX®300R Rear Brake Diagram

GASKET,RR DISK

HOLDER-ASSY,REAR CALIPER

STOPPER,PAD

DISC,RR,SILVER

PISTON-CALIPER

PACKING,PISTON SEAL

PACKING,PISTON SEAL

BREATHER-BRAKE

CAP-BREATHER

CALIPER-SUB-ASSY,RR,SILVER

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

PIN,HANGER

PIN

SPRING,PAD

BOLT,PLUG

BOLT,DISC PLATE,8X15
