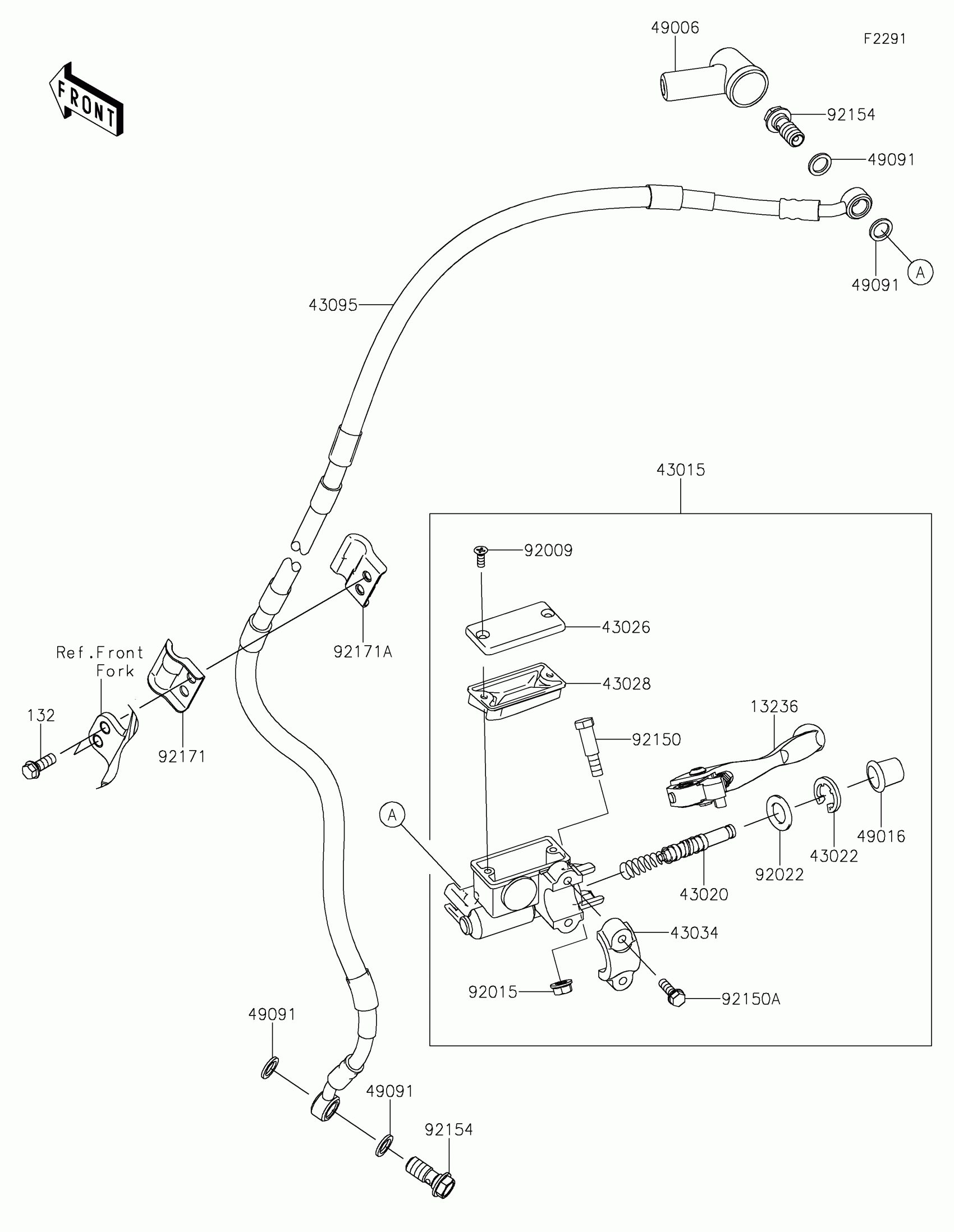

Kawasaki KLX®300R Front Master Cylinder Diagram

Description

Price

13236

LEVER-COMP,FRONT BRAKE

13236-0712

$44.94

43015

CYLINDER-ASSY-MASTER

43015-0170

$309.99

43020

PISTON-COMP-BRAKE

43020-0016

$55.32

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE,MASTER CYLINDER

43026-0020

$16.09

43028

DIAPHRAGM

43028-1067

$18.72

43034

HOLDER-BRAKE

43034-1110

$19.45

43095

HOSE-BRAKE,M/CYLINDER-CALIPER

43095-1642

$205.72

49006

BOOT,DUST

49006-1040

$11.49

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92009

SCREW

92009-1795

$4.18

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92022

WASHER

92022-1814

$4.69

92150

BOLT,LEVER SET

92150-1451

$14.23

92150A

BOLT

92150-1452

$5.52

92154

BOLT,FLANGED,10X23

92154-0732

$5.05

92171

CLAMP,BRAKE HOSE

92171-1626

$7.60

92171A

CLAMP,BRAKE HOSE

92171-1627

$7.60

132

BOLT-FLANGED-SMALL,6X16

132BB0616

$2.49
