2021 Kawasaki KLX®300 Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2021 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

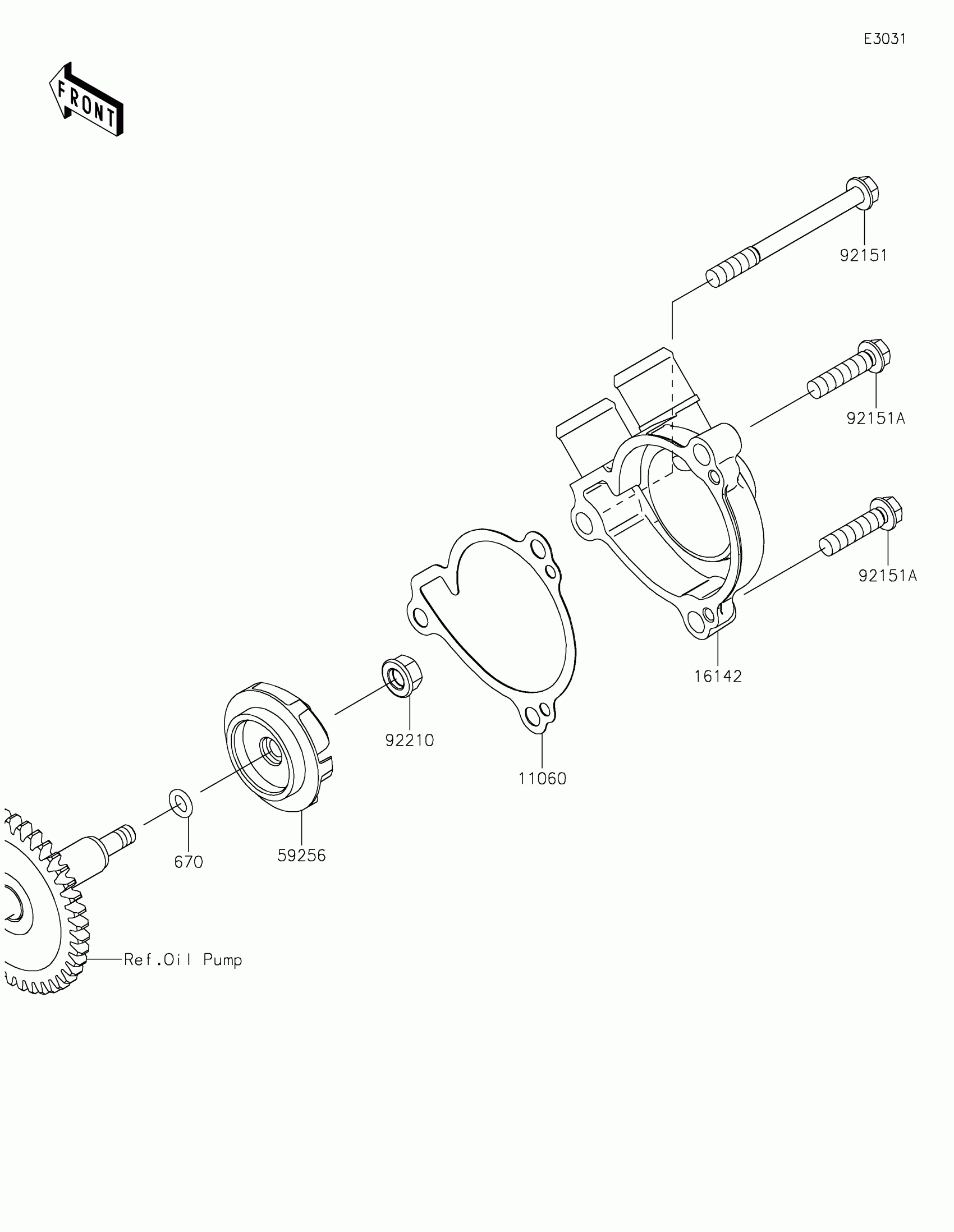

2021 Kawasaki KLX®300 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,PUMP COVER

11060-1328

1
Out of stock

16142

COVER-PUMP

16142-0059

1
Out of stock

59256

IMPELLER

59256-1063

1
Out of stock

92151

BOLT,6X65

92151-1199

1
Out of stock

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

1
Out of stock

92210

NUT,FLANGED,6MM

92210-0630

1
Out of stock

670

O RING,6MM

670B1506

1
Out of stock
