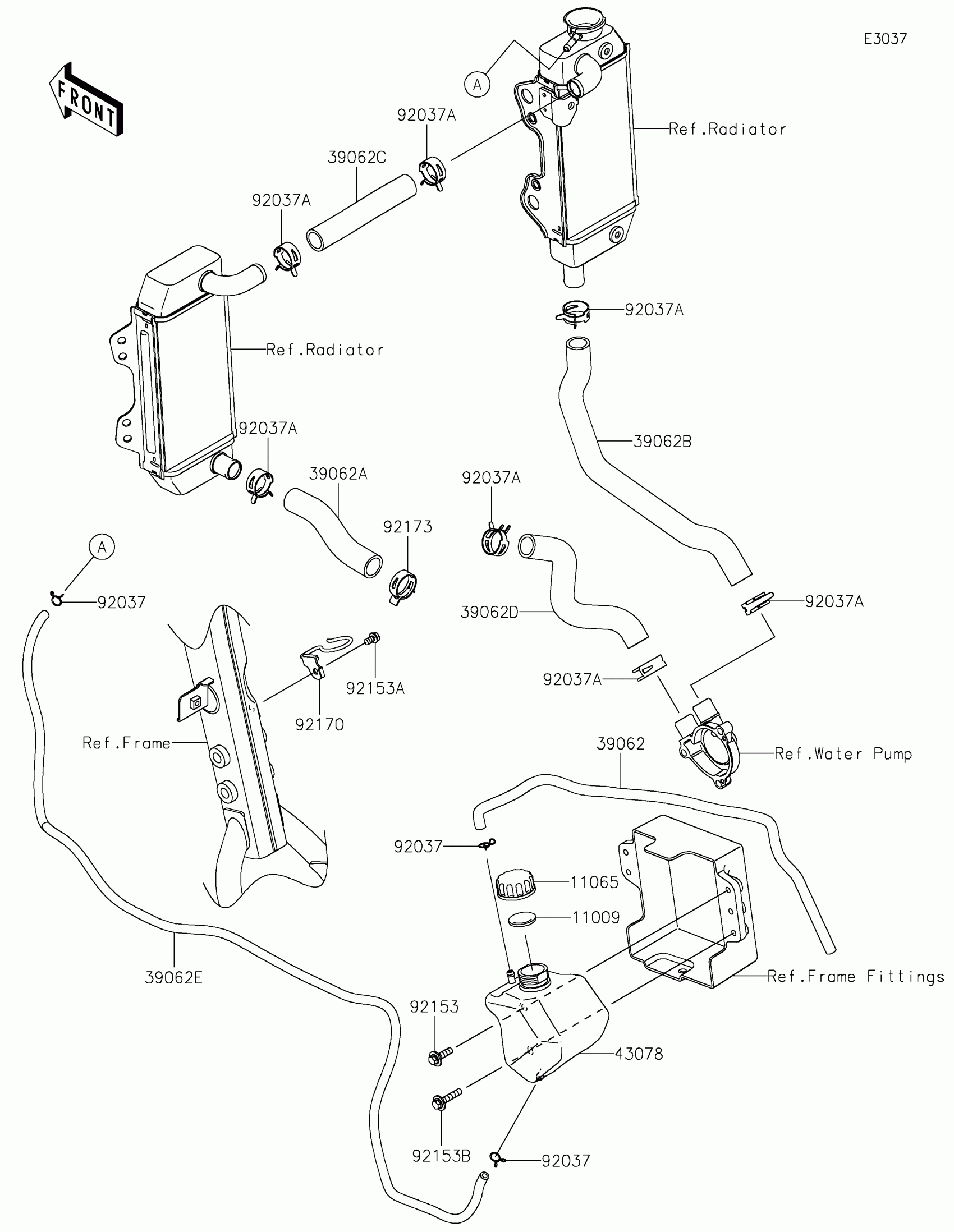

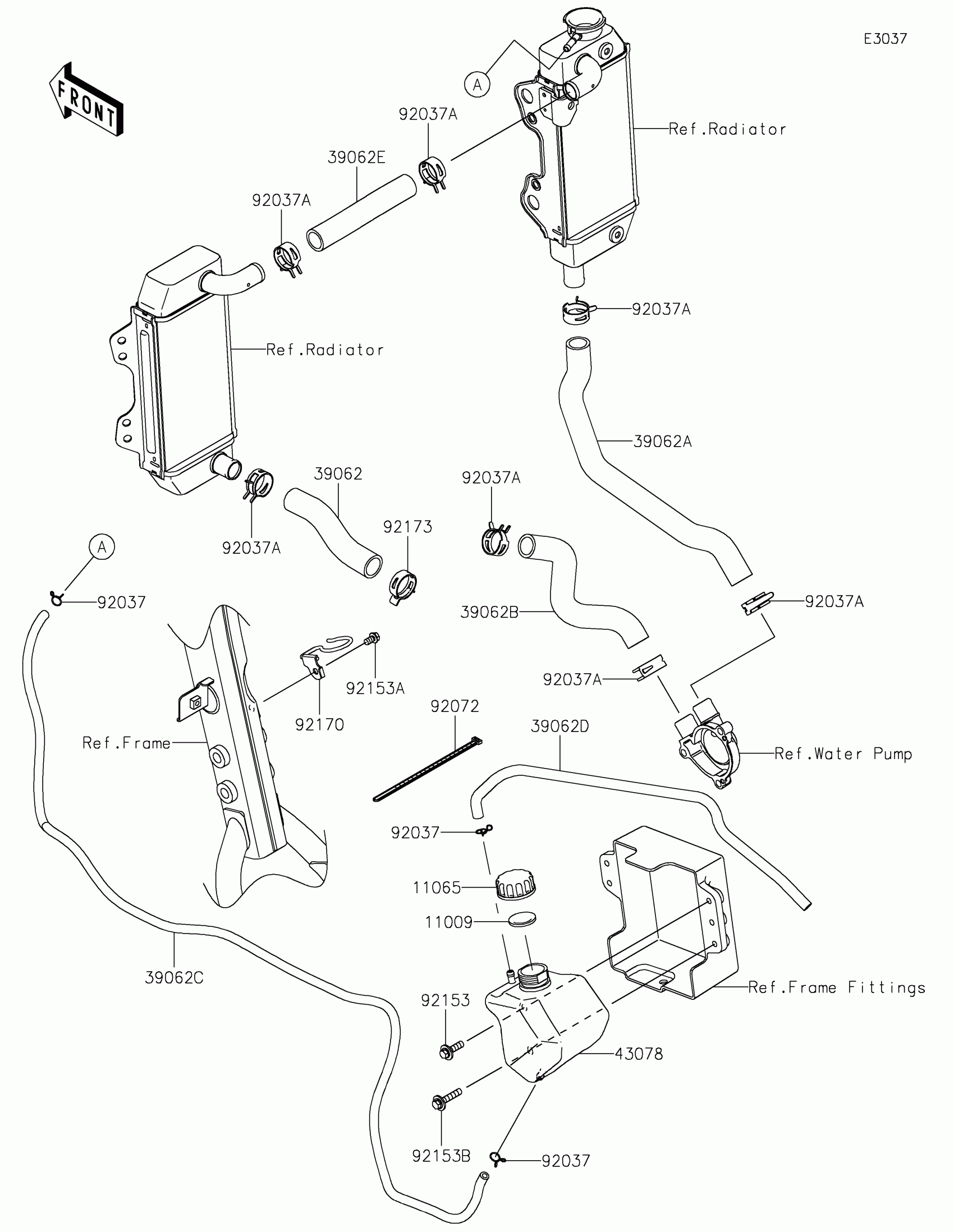

Kawasaki KLX®300 Water Pipe Diagram

Description

Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11065

CAP

11065-0969

$1.46

39062

HOSE-COOLING,OVERFLOW

39062-0204

$18.19

39062A

HOSE-COOLING,FITTING-RAD.LH

39062-0911

$8.60

39062B

HOSE-COOLING,RAD.RH-W/PUMP

39062-0912

$18.06

39062C

HOSE-COOLING,RAD.LH-RAD.RH

39062-0918

$9.02

39062D

HOSE-COOLING,W/PUMP-CYLINDER

39062-0919

$13.03

39062E

HOSE-COOLING,RESERVOIR

39062-1786

$13.90

43078

RESERVOIR

43078-0044

$42.33

92037

CLAMP

92037-1712

$3.81

92037A

CLAMP

92037-2109

$1.57

92153

BOLT,FLANGED,6X22

92153-0950

$2.98

92153A

BOLT,FLANGED,6X10

92153-1354

$2.15

92153B

BOLT,FLANGED,6X30

92153-1457

$2.71

92170

CLAMP

92170-1357

$14.29

92173

CLAMP

92173-2465

$5.49
