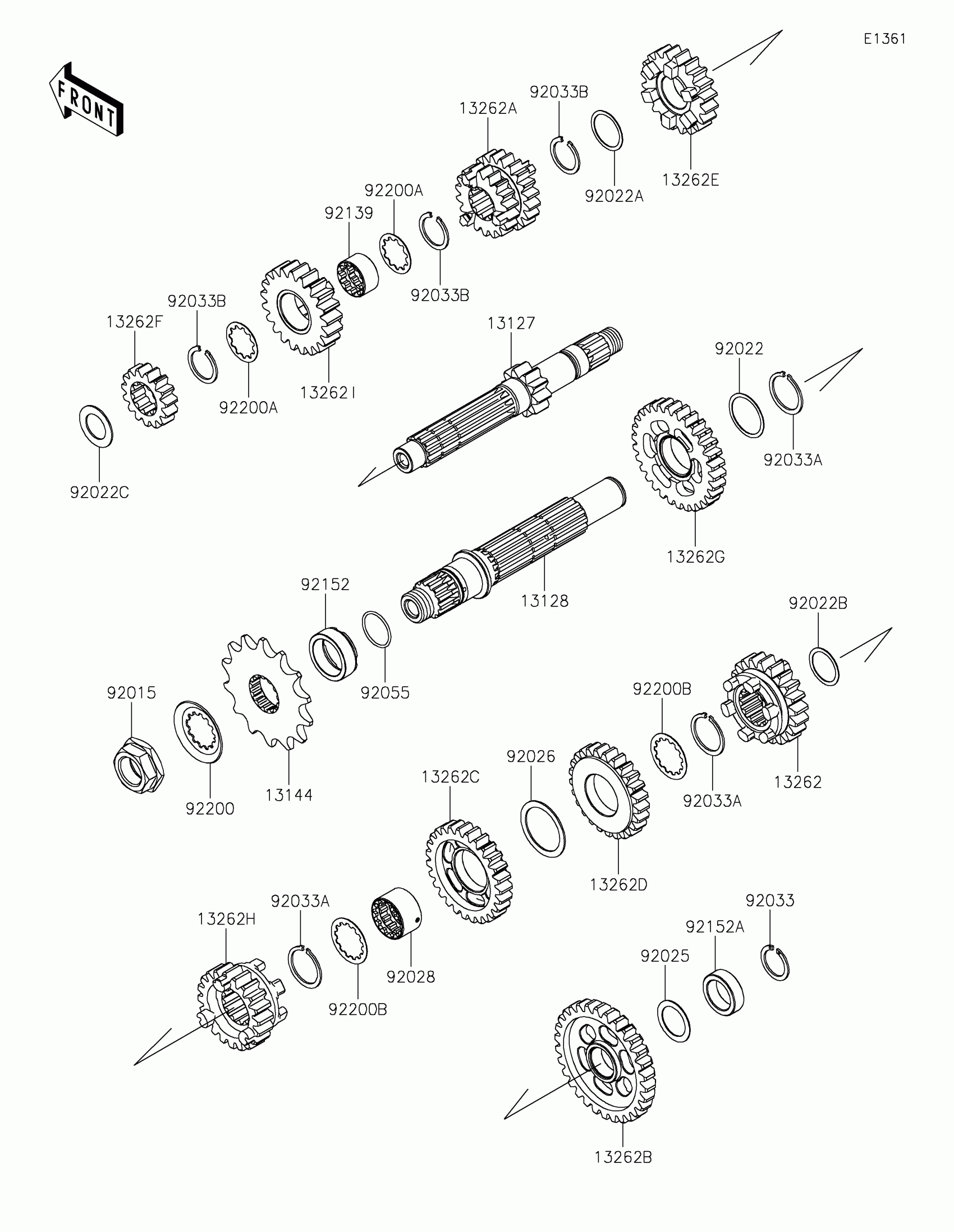

Kawasaki KLX®300 Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,10T

13127-0712

$211.42

13128

SHAFT-TRANSMISSION OUTPUT

13128-0720

$193.75

13144

SPROCKET-OUTPUT,14T

13144-0586

$52.96

13262

GEAR,OUTPUT 5TH,21T

13262-0483

$131.80

13262A

GEAR,INPUT 3RD&4TH,18T&20T

13262-0549

$162.28

13262B

GEAR,OUTPUT LOW,30T

13262-0597

$80.42

13262C

GEAR,OUTPUT 3RD,27T

13262-0598

$131.80

13262D

GEAR,OUTPUT 4TH,25T

13262-0599

$71.54

13262E

GEAR,INPUT 5TH,20T

13262-0600

$128.34

13262F

GEAR,INPUT 2ND,15T

13262-1499

$128.33

13262G

GEAR,INPUT TOP,21T

13262-1500

$131.80

13262H

GEAR,OUTPUT 2ND,30T

13262-1501

$125.00

13262I

GEAR,OUTPUT TOP,20T

13262-1502

$128.33

92015

NUT,20MM

92015-1963

$14.90

92022

WASHER,25.3X30X0.5

92022-159

$8.58

92022A

WASHER,22.3X27X0.5

92022-198

$5.52

92022B

WASHER,20.5X25.5X0.5

92022-252

$6.22

92022C

WASHER,17.3X28X1

92022-255

$8.58

92025

SHIM,T=0.7

92025-1451

$2.80

92026

SPACER,30X38X1.0

92026-079

$8.86

92028

BUSHING,OUTPUT 3RD&4TH GEAR

92028-1822

$30.74

92033

RING-SNAP,18MM

92033-029

$9.82

92033A

RING-SNAP,25MM

92033-1172

$5.08

92033B

RING-SNAP

92033-1293

$3.56

92055

RING-O,21.5X1.5

92055-0196

$4.45

92139

BUSHING,INPUT TOP GEAR

92139-0988

$24.53

92152

COLLAR

92152-1350

$26.84

92152A

COLLAR,20X28X8.5

92152-1357

$25.27

92200

WASHER

92200-0851

$5.98

92200A

WASHER,INPUT

92200-1370

$4.13

92200B

WASHER,OUTPUT

92200-1371

$4.67
