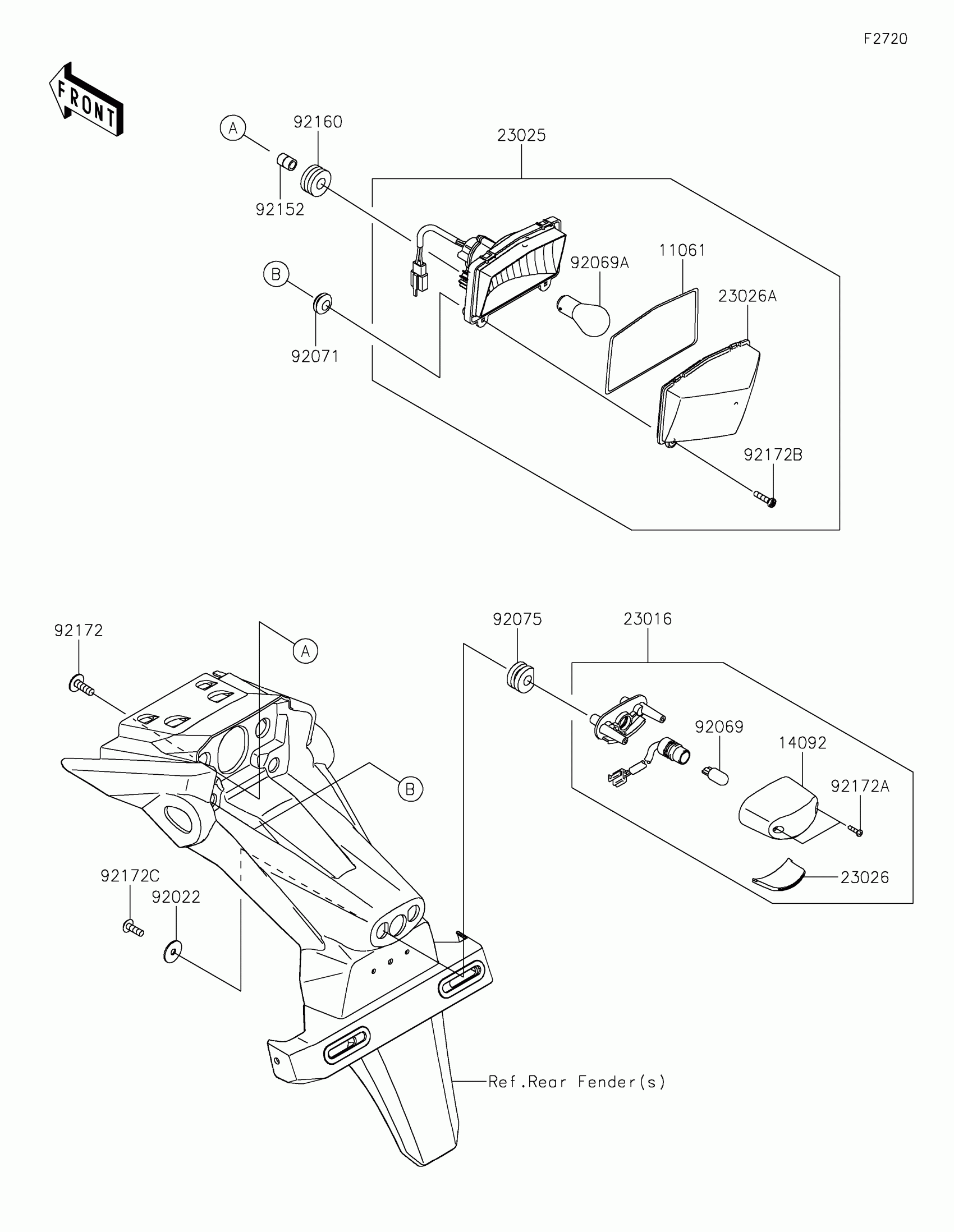

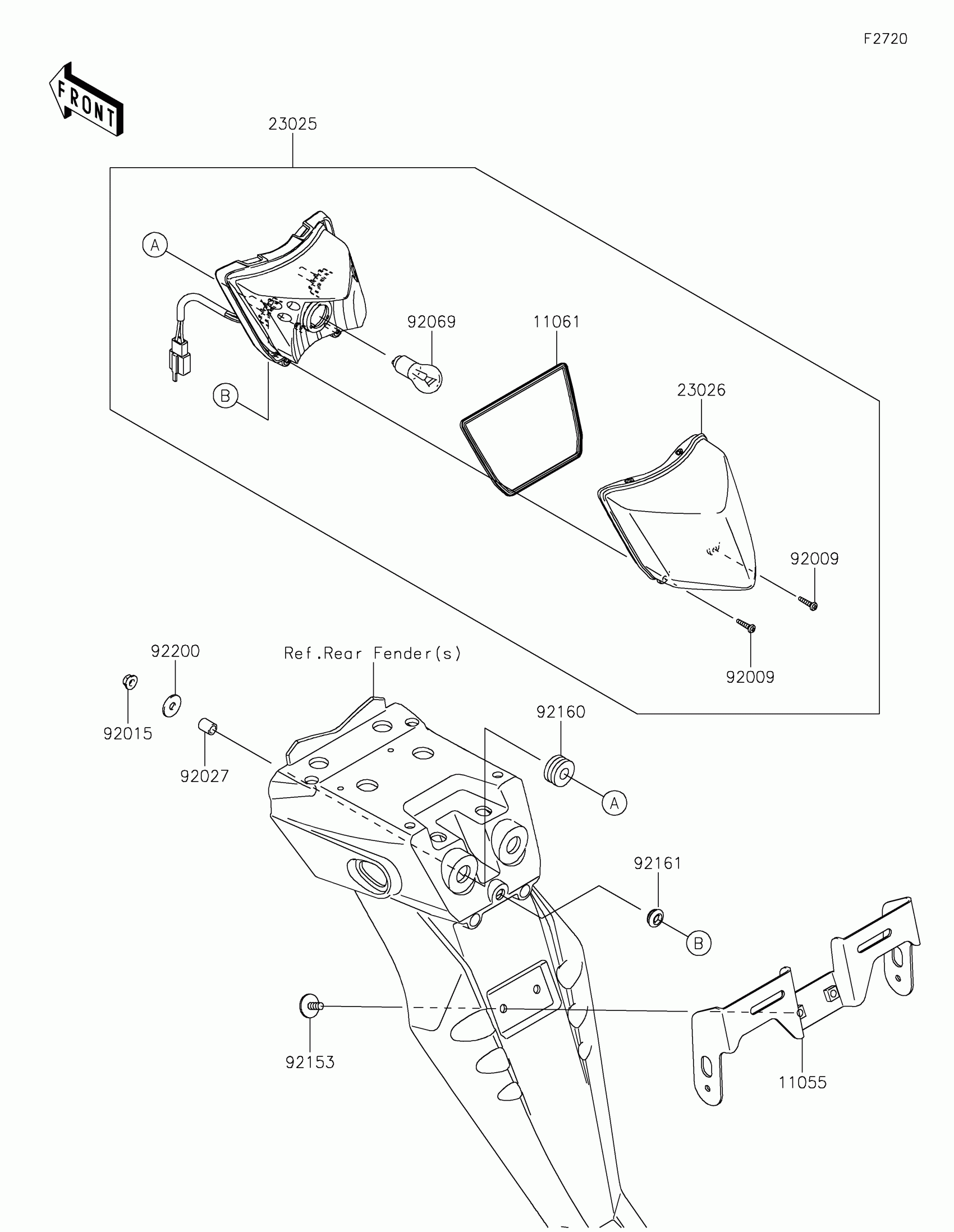

Kawasaki KLX®300 Taillight(s) Diagram

Description

Price

11061

GASKET,TAIL LAMP LENS

11061-0393

$9.64

14092

COVER,LICENSE LAMP

14092-0001

$21.52

23016

LAMP-ASSY,LICENCE

23016-0657

$71.76

23025

LAMP-TAIL

23025-0392

$64.38

23026

LENS,LICENCE LAMP

23026-0035

$28.78

23026A

LENS,TAIL LAMP

23026-0036

$21.96

92022

WASHER,5.5X20X1.2

92022-104

$4.31

92069

BULB,12V 5W

92069-1016

$6.52

92069A

BULB,12V 21/5W

92069-1084

$7.33

92071

GROMMET

92071-024

$4.65

92075

DAMPER

92075-1870

$5.00

92152

COLLAR,6.8X10X13.5

92152-3818

$2.55

92160

DAMPER

92160-1162

$5.00

92172

SCREW,6X18

92172-0192

$11.28

92172A

SCREW,TAPPING,2.9X13

92172-0343

$1.78

92172B

SCREW,4.2X19

92172-0411

$4.72

92172C

SCREW,TAPPING,5X16

92172-0427

$2.55
