2021 Kawasaki KLX®300 Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2021 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

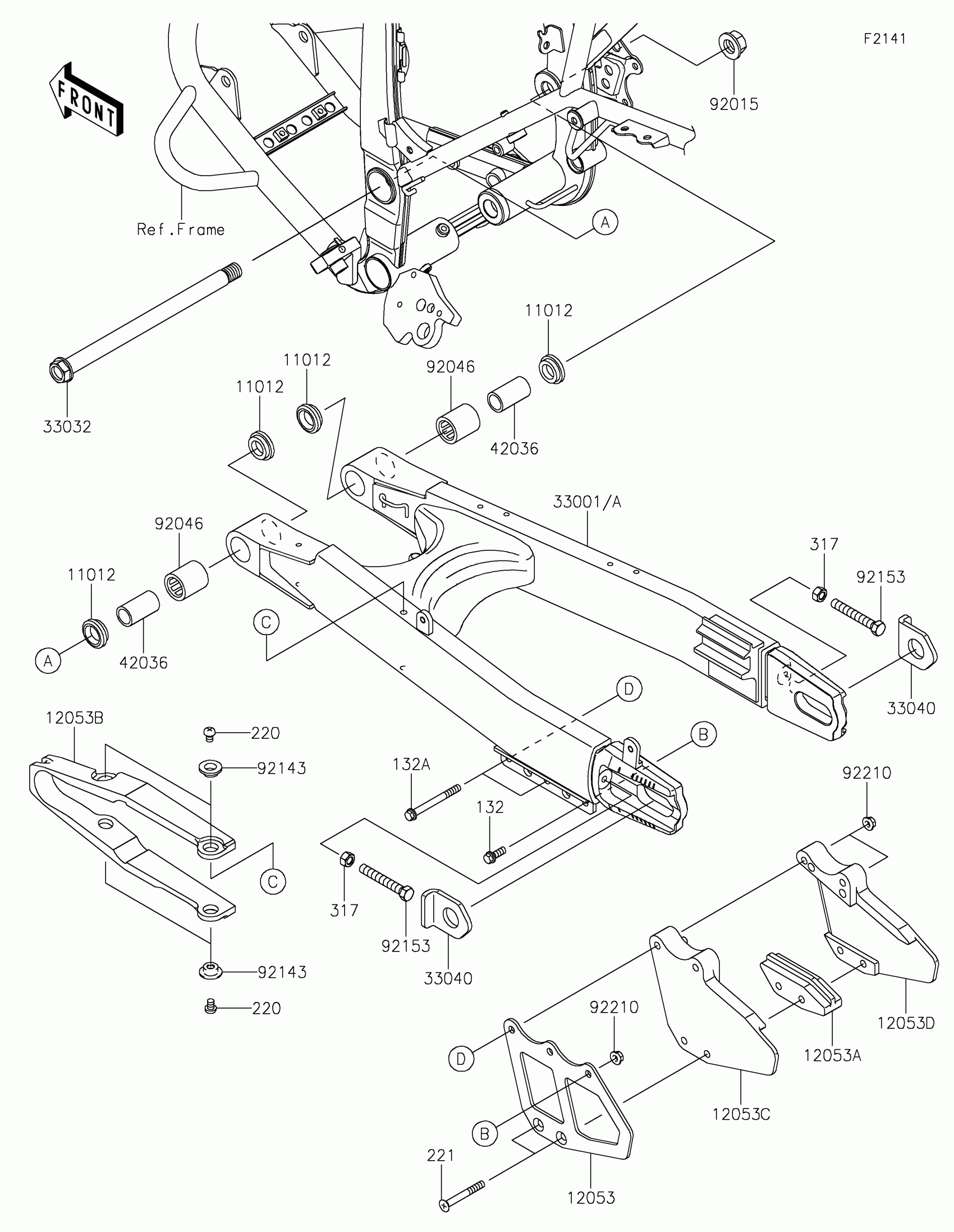

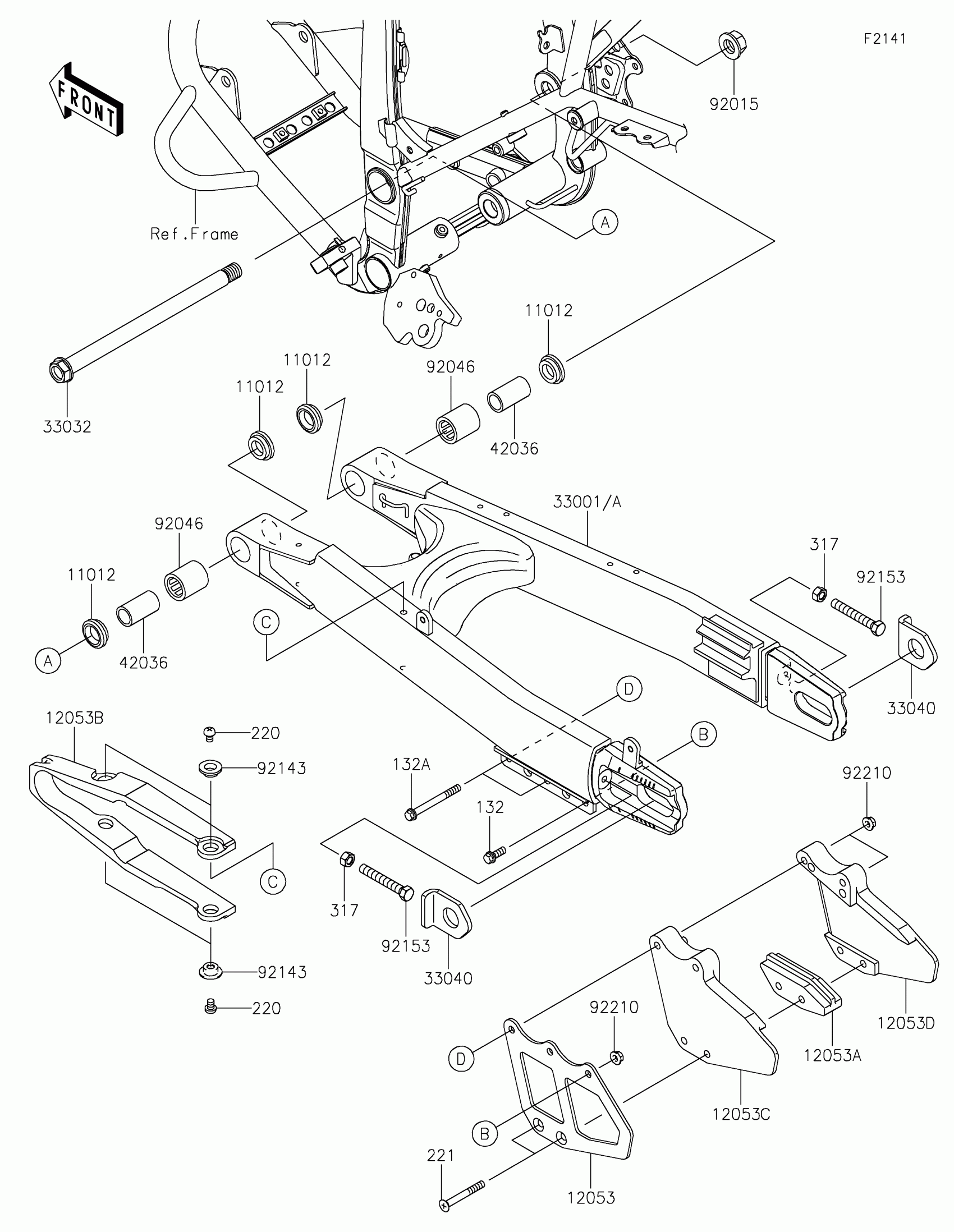

2021 Kawasaki KLX®300 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SWING ARM

11012-1259

1

$20.21

In stock

12053

1

$30.83

In stock

12053A

1

$40.84

In stock

12053B

1

$49.57

In stock

12053C

1

$56.33

In stock

12053D

1

$56.33

In stock

33001

ARM-COMP-SWING,F.S.BLACK

33001-0176-18R

1

$856.22

In stock

33001A

ARM-COMP-SWING,P.SILVER

33001-0176-458

1

$856.22

In stock

33032

SHAFT-SWING ARM

33032-0033

1

$57.05

In stock

33040

ADJUSTER-CHAIN

33040-0023

1

$8.10

In stock

42036

SLEEVE,SWING ARM

42036-1064

1

$19.97

In stock

92015

NUT,14MM

92015-1407

1

$7.86

In stock

92046

BEARING-NEEDLE

92046-0038

1

$23.58

In stock

92143

COLLAR

92143-1156

1

$4.93

In stock

92153

BOLT,8X55

92153-1407

1
Out of stock

92210

NUT,FLANGED,6MM

92210-0630

1
Out of stock

132

1

$1.21

In stock

132A

1

$3.69

In stock

220

SCREW-PAN-CROS,6X8

220AA0608

1

$0.63

In stock

221

1

$3.69

In stock

317

NUT-HEX-SMALL,8MM

317BA0800

1

$1.44

In stock
