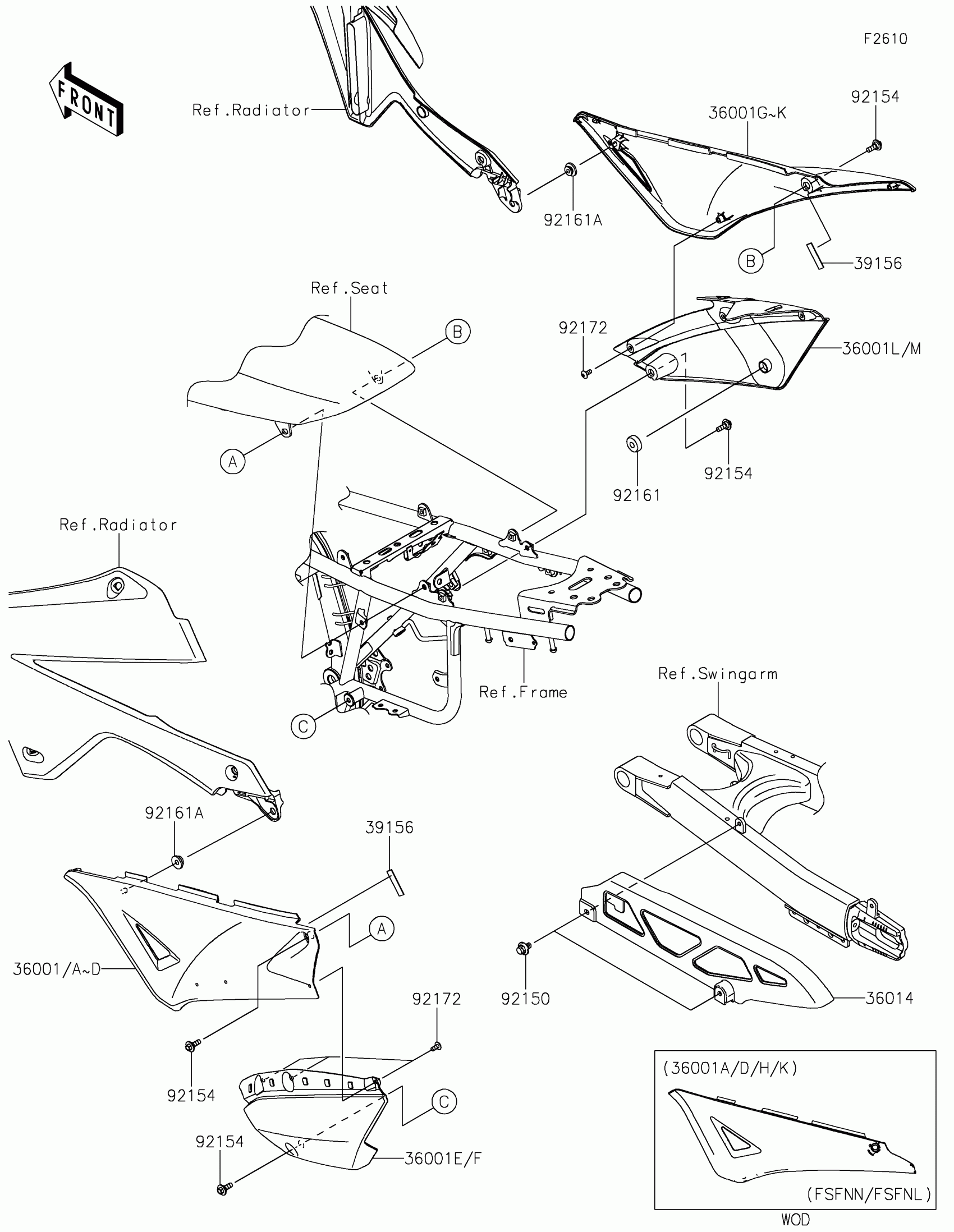

Kawasaki KLX®300 Side Covers/Chain Cover Diagram

Description

Price

36001

COVER-SIDE,LH,UPP,B.WHITE

36001-0743-266

$48.70

36001A

COVER-SIDE,LH,UPP,L.GREEN

36001-0743-290

$50.57

36001D

COVER-SIDE,LH,UPP,B.GRAY

36001-0743-67A

$50.57

36001E

COVER-SIDE,LH,LWR

36001-0744

$34.71

36001G

COVER-SIDE,RH,UPP,B.WHITE

36001-0745-266

$49.00

36001H

COVER-SIDE,RH,UPP,L.GREEN

36001-0745-290

$50.89

36001K

COVER-SIDE,RH,UPP,B.GRAY

36001-0745-67A

$50.89

36001L

COVER-SIDE,RH,LWR

36001-0746

$36.87

36014

CASE-CHAIN

36014-0050

$91.42

39156

PAD,12X40

39156-2323

$0.98

92150

BOLT,6X12

92150-1435

$4.31

92154

BOLT,6X14

92154-7137

$2.68

92161

DAMPER

92161-0605

$3.52

92161A

DAMPER

92161-1810

$1.19

92172

SCREW,5X12

92172-0821

$0.85
