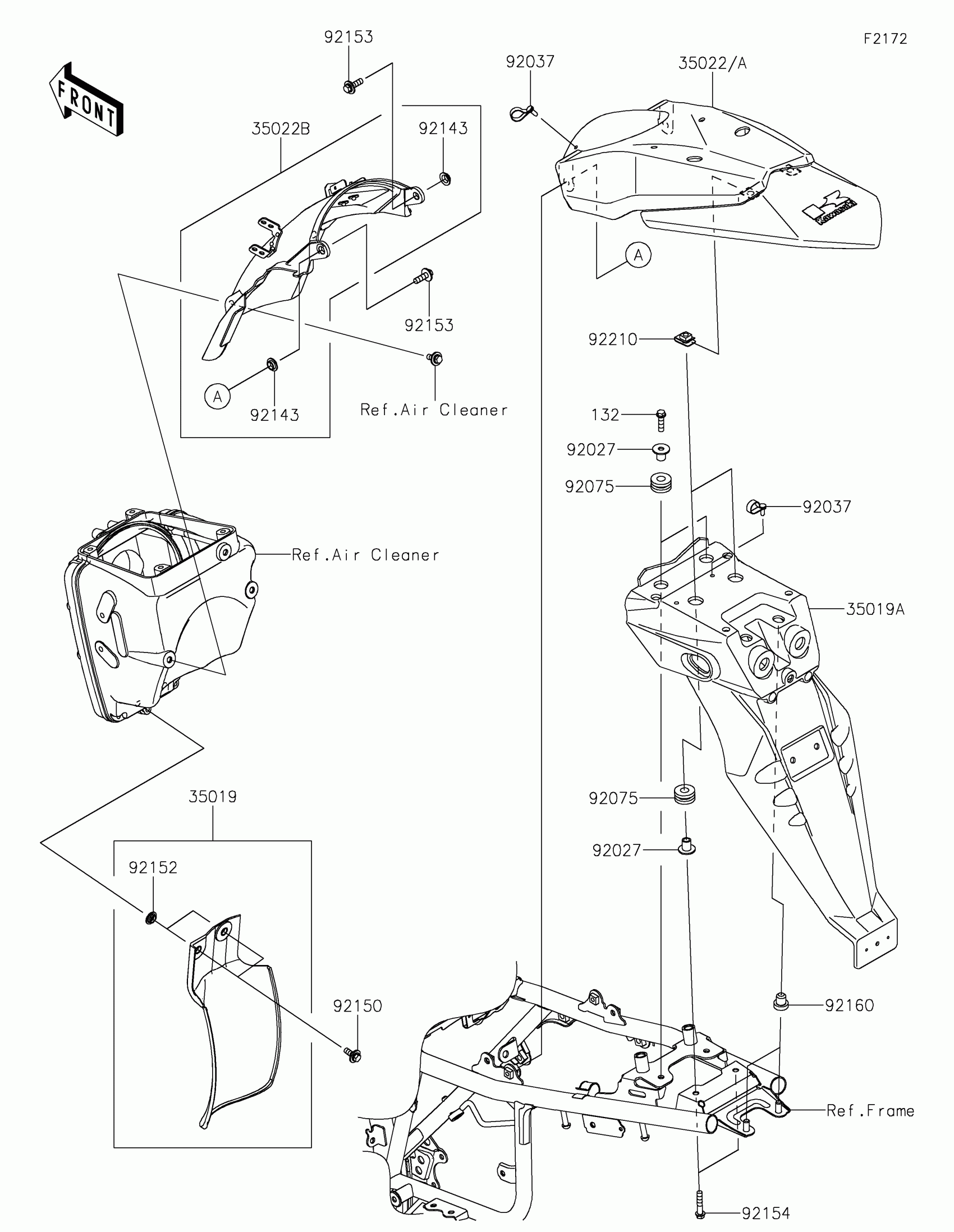

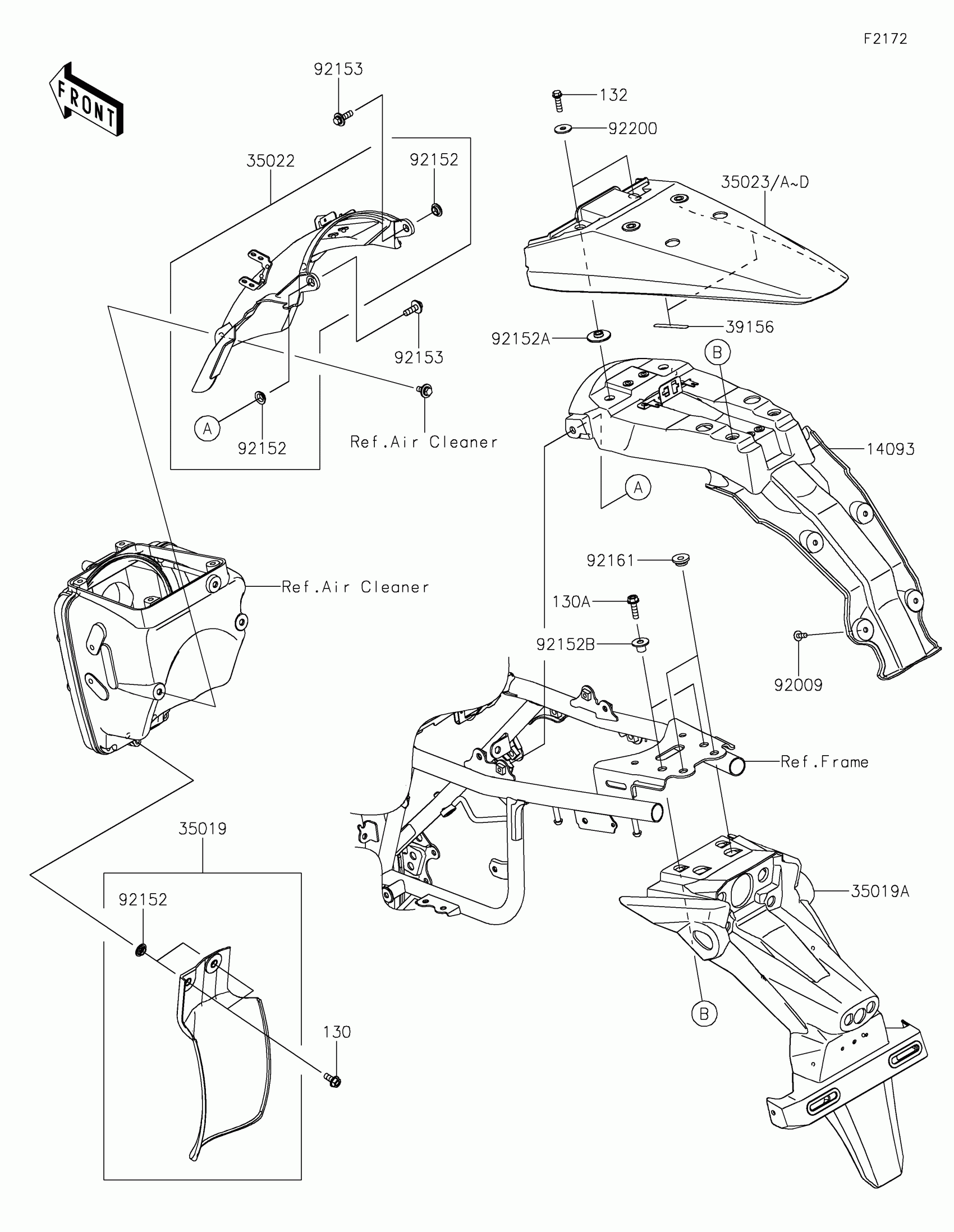

Kawasaki KLX®300 Rear Fender(s) Diagram

Description

Price

14093

COVER,RR FLAP,INNER

14093-1499

$63.62

35019

FLAP,RR FENDER,FR

35019-0004

$11.12

35019A

FLAP,RR FENDER,RR

35019-0699

$60.84

35022

FENDER-COMP-REAR,FR

35022-0114

$35.99

35023

FENDER-REAR,B.WHITE

35023-0512-266

$32.68

35023A

FENDER-REAR,L.GREEN

35023-0512-290

$33.29

35023B

FENDER-REAR,B.GRAY

35023-0512-67A

$33.29

39156

PAD,6X50

39156-2421

$1.27

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92152

COLLAR,8.8X11.2X4

92152-0909

$5.65

92152A

COLLAR

92152-3817

$8.37

92152B

COLLAR

92152-3820

$8.62

92153

BOLT,6X20

92153-0502

$2.80

92161

DAMPER

92161-1810

$1.19

92200

WASHER,6.5X20X1.6

92200-1962

$3.74

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X22

130BA0622

$1.29

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.49
