2021 Kawasaki KLX®300 Radiator Diagram

← All diagrams

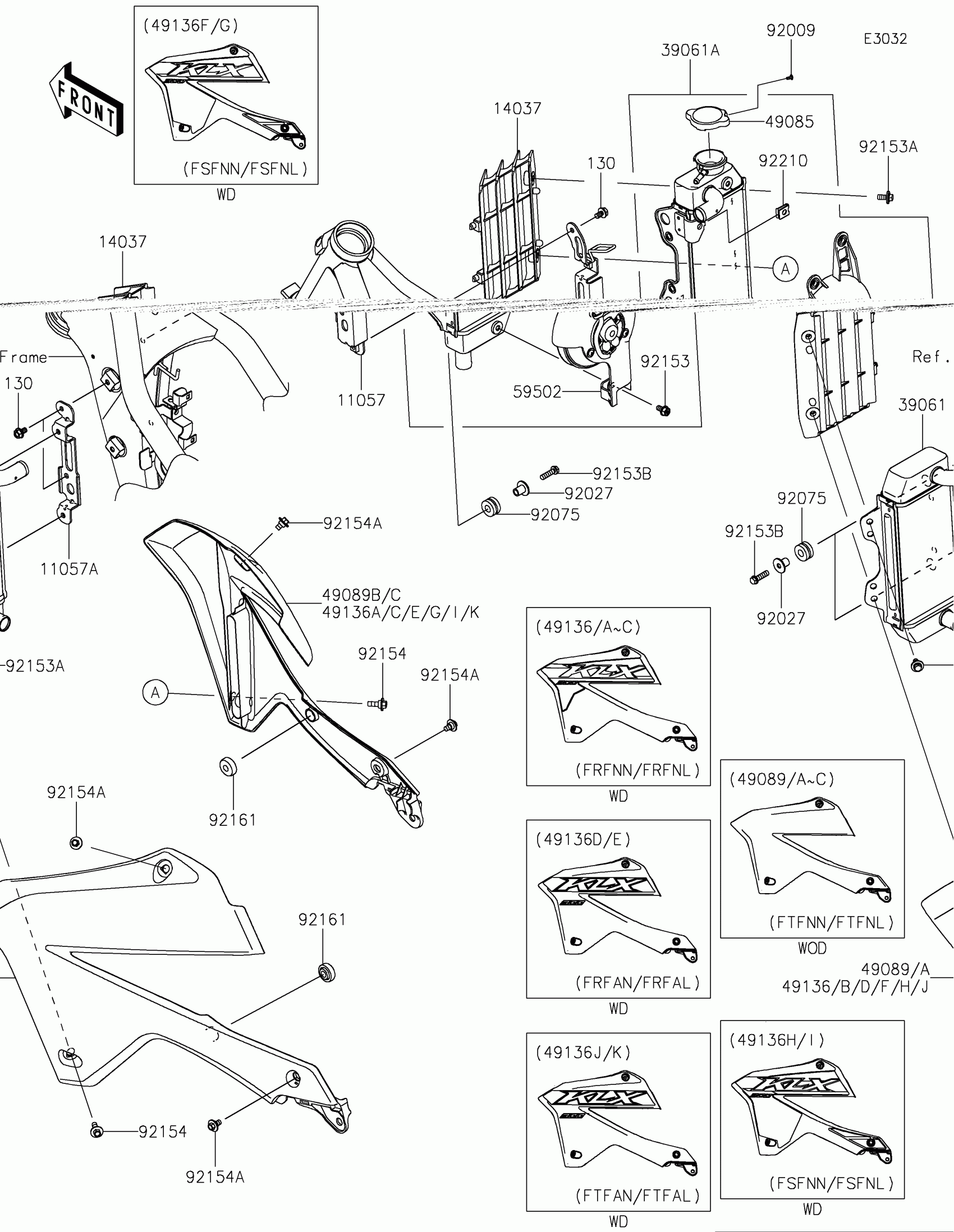

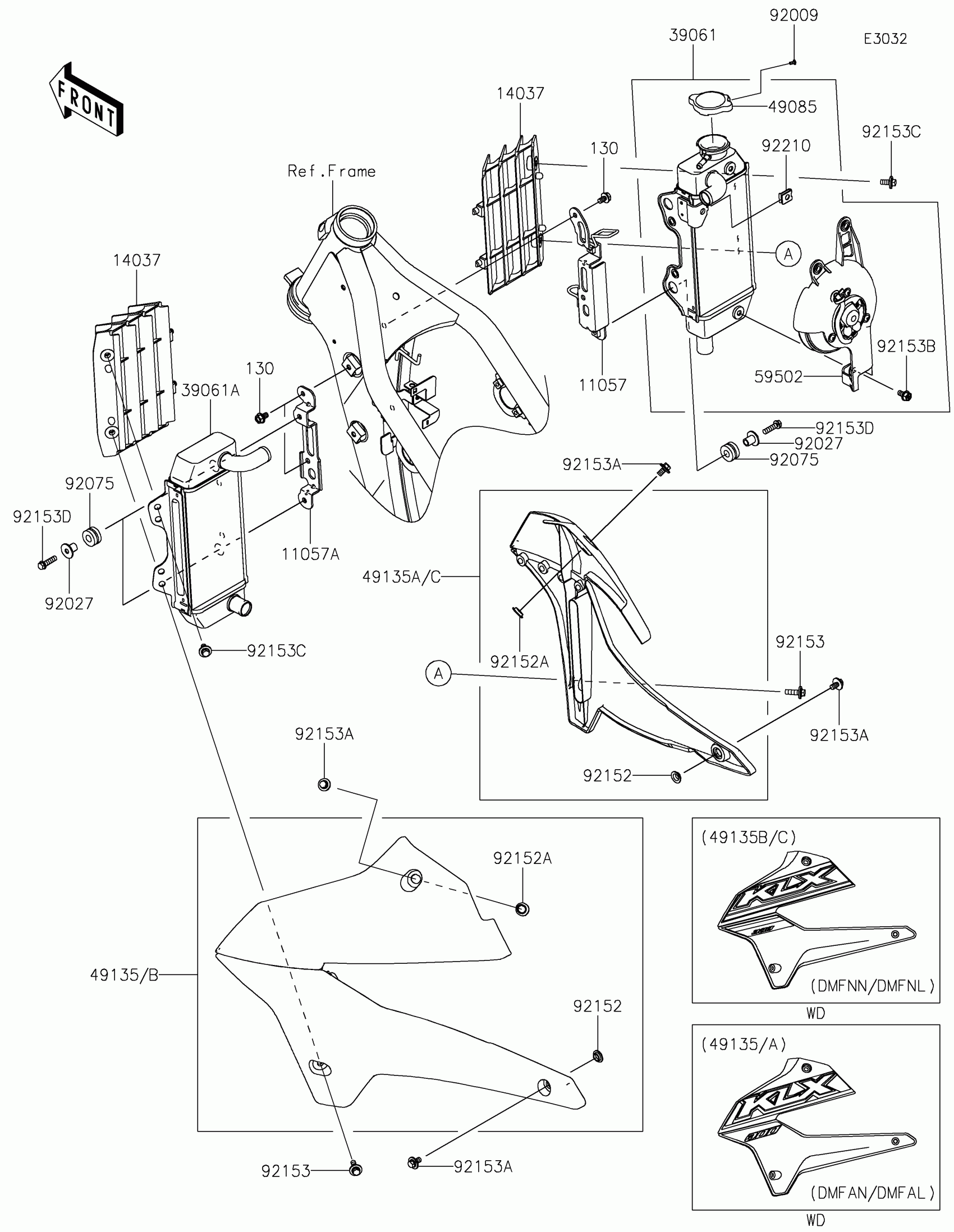

Find the part on the Radiator diagram for your 2021 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki KLX®300 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,RADIATOR,RH

11057-4251

1

$28.75

In stock

11057A

BRACKET,RADIATOR,LH

11057-4252

1

$16.24

In stock

14037

SCREEN,RADIATOR

14037-0814

1

$24.17

In stock

39061

RADIATOR-ASSY,RH

39061-0823

1

$475.68

In stock

39061A

RADIATOR-ASSY,LH

39061-0825

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-0018

1

$44.37

In stock

49135

SHROUD-ENGINE,LH,F.C.GRAY

49135-5250-36Y

1

$330.22

In stock

49135A

SHROUD-ENGINE,RH,F.C.GRAY

49135-5251-36Y

1

$330.22

In stock

49135B

1

$185.62

In stock

49135C

1

$185.62

In stock

59502

FAN-ASSY

59502-0636

1

$582.91

In stock

92009

SCREW,TAPPING,3X6

92009-1844

1
Out of stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92075

1

$3.72

In stock

92152

COLLAR,8.8X11.2X4

92152-0909

1

$4.47

In stock

92152A

COLLAR

92152-1235

1

$3.29

In stock

92153

BOLT,6X20

92153-0502

1
Out of stock

92153A

BOLT,6X12

92153-0503

1
Out of stock

92153B

BOLT

92153-0531

1
Out of stock

92153C

BOLT,FLANGED,6X14

92153-0936

1
Out of stock

92153D

1

$1.81

In stock

92210

NUT

92210-1323

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock
