2021 Kawasaki KLX®300 Oil Pump Diagram

← All diagrams

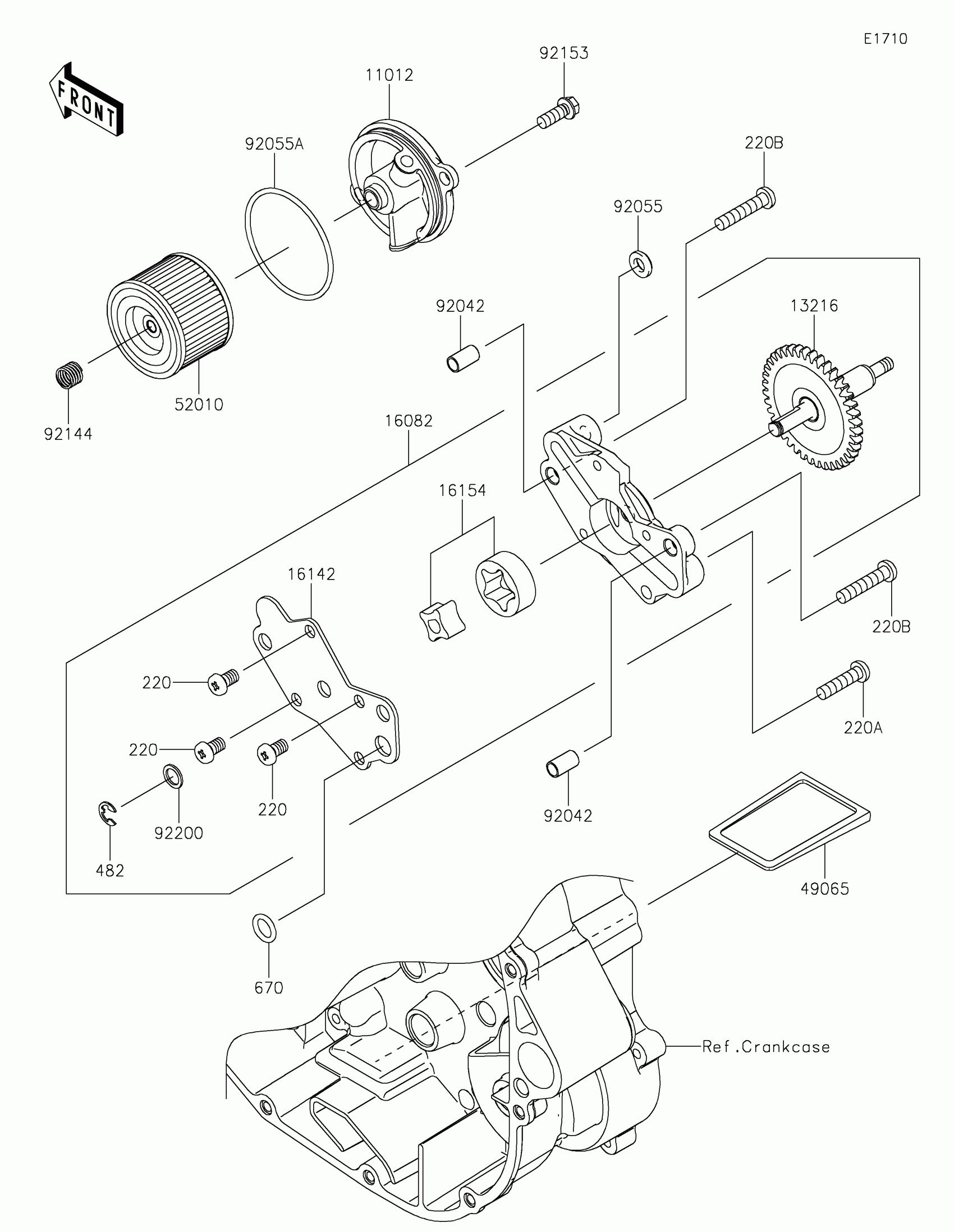

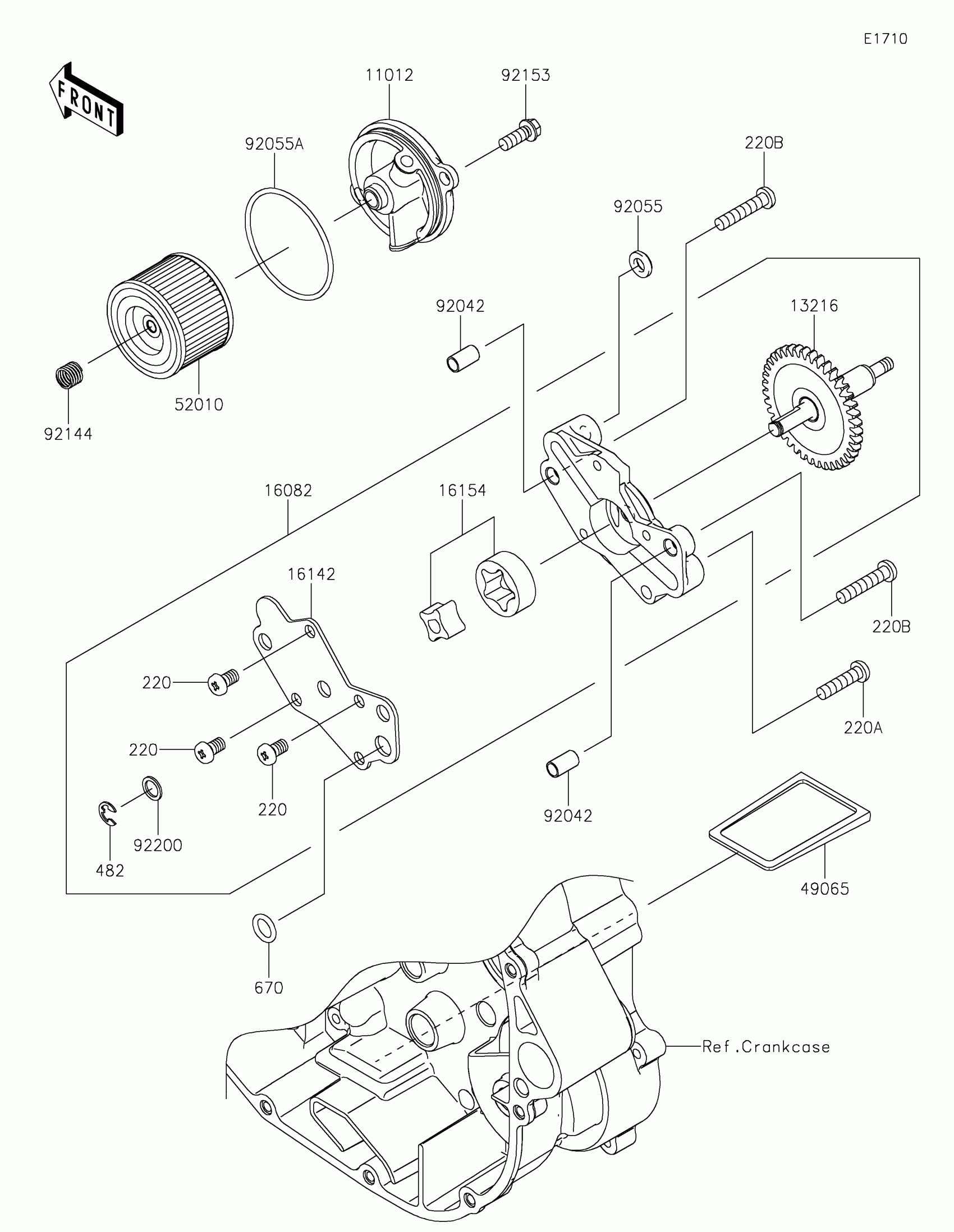

Find the part on the Oil Pump diagram for your 2021 Kawasaki KLX®300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki KLX®300 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,OIL FILTER

11012-1915

1

$59.58

In stock

13216

GEAR-COMP,OIL PUMP

13216-0906

1

$120.53

In stock

16082

PUMP-ASSY-OIL

16082-0834

1

$171.67

In stock

16142

COVER-PUMP

16142-0713

1

$44.51

In stock

16154

ROTOR-PUMP

16154-0714

1

$36.37

In stock

49065

FILTER-OIL

49065-1058

1

$10.11

In stock

52010

ELEMENT-OIL FILTER

52010-1053

1

$7.23

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92055

RING-O,OD=13

92055-074

1

$6.82

In stock

92055A

RING-O,52.6X2.4

92055-1577

1

$3.72

In stock

92144

SPRING

92144-1761

1

$3.69

In stock

92153

BOLT,6X16

92153-0695

1
Out of stock

92200

WASHER,8.5X12X1

92200-0890

1
Out of stock

220

1

$2.58

In stock

220A

1

$2.27

In stock

220B

1

$2.92

In stock

482

CIRCLIP-TYPE-E,6MM

482EA6000

1

$0.44

In stock

670

O RING,10MM

670D2010

1

$1.63

In stock
