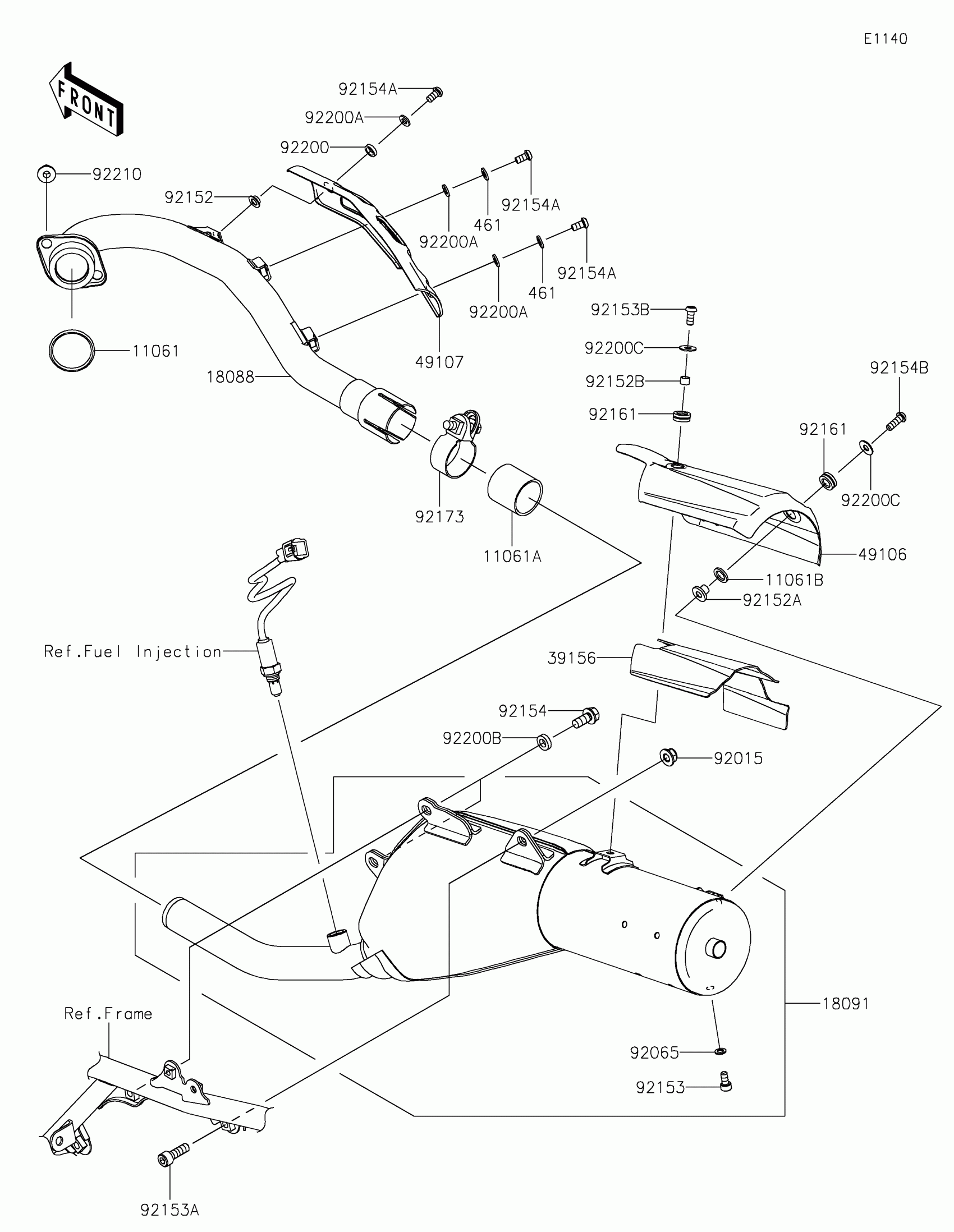

Kawasaki KLX®300 Muffler(s) Diagram
#
Description
Price
11061
GASKET,EX PIPE
11061-0027
$7.60
11061A
GASKET,EXHAUST PIPE CONNECTING
11061-1055
$16.50
11061B
GASKET
11061-1398
$2.00
18088
PIPE-EXHAUST
18088-1475
$157.70
18091
BODY-COMP-MUFFLER
18091-1294
$835.44
39156
PAD,MUFFLER COVER
39156-2880
$24.19
49106
COVER-MUFFLER
49106-0856
$216.13
49107
COVER-EXHAUST PIPE
49107-0826
$54.07
92015
NUT,8MM
92015-1432
$6.57
92065
GASKET
92065-096
$4.65
92152
COLLAR,6.2X8.5X13
92152-2662
$5.07
92152A
COLLAR
92152-2814
$3.04
92152B
COLLAR,6.5X8.5X6
92152-2817
$4.36
92153
BOLT,SOCKET,6X12
92153-1347
$2.97
92153A
BOLT,SOCKET,8X25
92153-1350
$3.39
92153B
BOLT,SOCKET,6X14
92153-1886
$2.97
92154
BOLT-FLANGED,8X14
92154-3782
$1.94
92154A
BOLT,SOCKET,6X11.5
92154-4087
$1.11
92154B
BOLT,SOCKET,6X18
92154-4279
$1.59
92161
DAMPER
92161-1475
$5.33
92173
CLAMP,38MM
92173-0997
$24.01
92200
WASHER,8.8X12.5X3
92200-2306
$6.26
92200A
WASHER,6.2X12X1.6
92200-2320
$0.64
92200B
WASHER,8.1X15X4.0
92200-2482
$3.86
92200C
WASHER,6.5X16X1.0
92200-3712
$3.73
92210
NUT,8MM
92210-0076
$5.48
461
WASHER-SPRING,6MM
461S0600
$1.07
