Description

Price

11056

BRACKET,ADJUSTER,LH

11056-1452

$6.00

11056A

BRACKET,ADJUSTER,RH

11056-1457

$6.00

51049

CAP-TANK,FUEL

51049-0766

$108.49

53044

TRIM,L=157

53044-1276

$8.86

92022

WASHER,6.5X24X2

92022-1690

$3.92

92022A

WASHER,5.1X10X1.0

92022-1977

$3.65

92075

DAMPER,9X24X14

92075-281

$6.22

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR,6.5X10X18

92152-1560

$5.05

92152A

COLLAR,6.8X10X27

92152-2779

$1.84

92160

DAMPER,FUEL TANK

92160-1328

$7.34

92161

DAMPER,10X16X15

92161-1397

$4.10

92161A

DAMPER,FUEL TANK

92161-2373

$9.47

92170

CLAMP

92170-1492

$5.00

92192A

TUBE,BYPASS

92192-0859

$10.67

92200

WASHER,6.5X18X1.6

92200-0766

$1.63

130

BOLT-FLANGED,6X10

130BB0610

$2.49

130A

BOLT-FLANGED,6X25

130BB0625

$2.80

132

BOLT-FLANGED-SMALL,6X40

132BA0640

$4.45

220

SCREW-PAN-CROS,5X10

220AA0510

$0.71

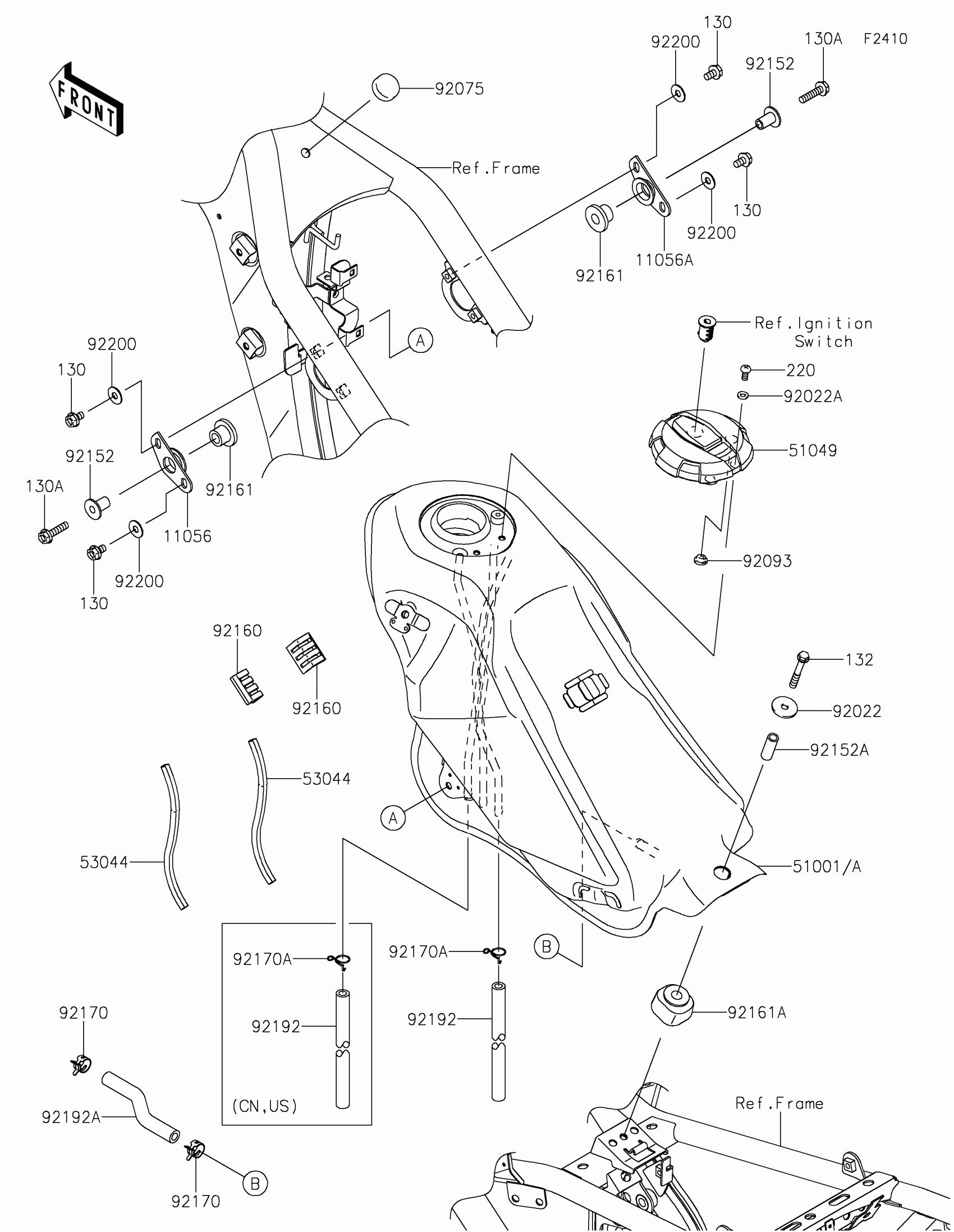

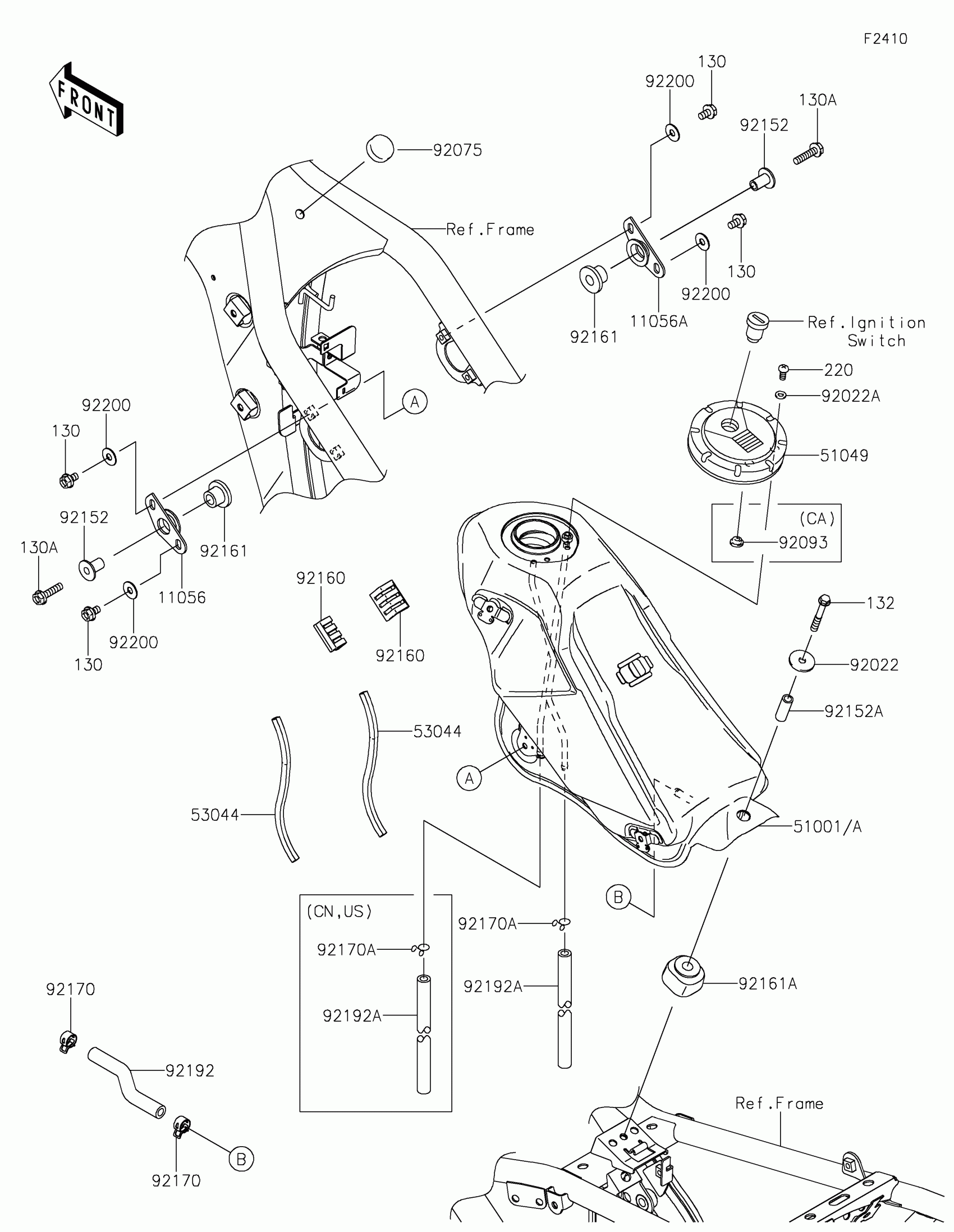

Kawasaki KLX®300 Fuel Tank Diagram

BRACKET,ADJUSTER,LH

BRACKET,ADJUSTER,RH

CAP-TANK,FUEL

TRIM,L=157

WASHER,6.5X24X2

WASHER,5.1X10X1.0

DAMPER,9X24X14

SEAL,FUEL TANK CAP

COLLAR,6.5X10X18

COLLAR,6.8X10X27

DAMPER,FUEL TANK

DAMPER,10X16X15

DAMPER,FUEL TANK

CLAMP

TUBE,BYPASS

WASHER,6.5X18X1.6

BOLT-FLANGED,6X10

BOLT-FLANGED,6X25

BOLT-FLANGED-SMALL,6X40

SCREW-PAN-CROS,5X10
