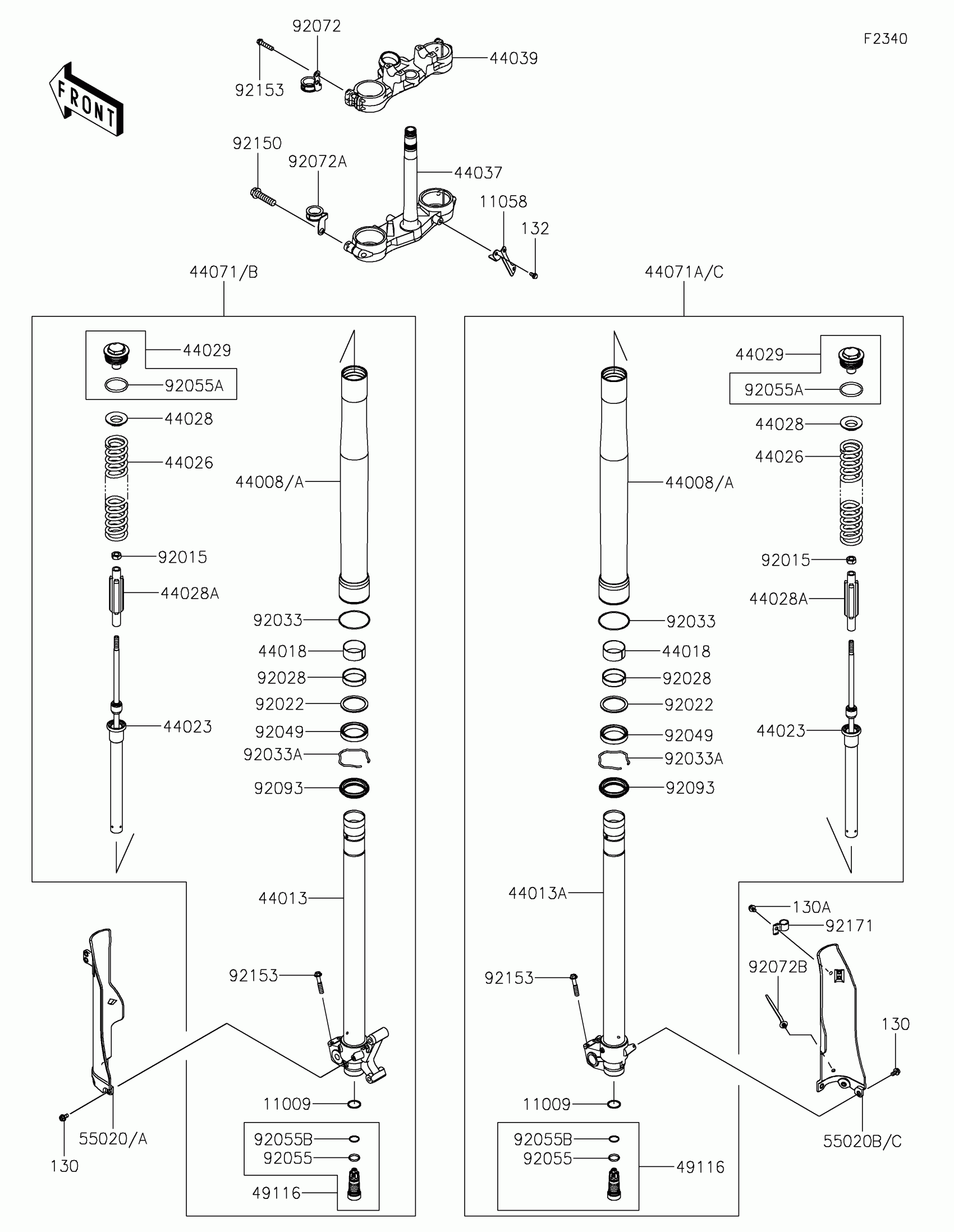

Kawasaki KLX®300 Front Fork Diagram
#
11009
GASKET,FORK CYLINDER BOLT
11009-1592
$6.16
11058
BRACKET,SPEED METER
11058-0880
$99.35
44008A
PIPE-FORK OUTER
44008-0117
$461.26
44013
PIPE-FORK INNER,LH
44013-0375
$342.60
44013A
PIPE-FORK INNER,RH
44013-0376
$342.60
44018
PISTON-FORK,INNER PIPE
44018-1056
$28.45
44023
CYLINDER-SET-FORK
44023-0062
$381.04
44026
SPRING-FRONT FORK
44026-0103
$99.25
44028
GUIDE-FORK SPRING
44028-1081
$12.12
44028A
GUIDE-FORK SPRING
44028-1084
$12.85
44029
SEAT-FORK SPRING
44029-0027
$117.08
44037
HOLDER-FORK UNDER,F.S.BLACK
44037-0078-18R
$597.50
44039
HOLDER-FORK UPPER,F.S.BLACK
44039-0059-18R
$246.87
44071B
DAMPER-ASSY,FORK,LH
44071-1618
$1,034.88
44071C
DAMPER-ASSY,FORK,RH
44071-1619
$1,034.88
49116
VALVE-ASSY,FORK
49116-1168
$126.02
55020
GUARD,FORK,LH,L.GREEN
55020-0484-290
$50.28
55020A
GUARD,FORK,LH,BLACK
55020-0484-6Z
$50.28
55020B
GUARD,FORK,RH,L.GREEN
55020-2454-290
$50.28
55020C
GUARD,FORK,RH,BLACK
55020-2454-6Z
$50.28
92015
NUT
92015-1839
$19.64
92022
WASHER
92022-1299
$8.58
92028
BUSHING
92028-1581
$21.80
92033
RING-SNAP
92033-0080
$5.95
92033A
RING-SNAP
92033-1077
$4.96
92049
SEAL-OIL
92049-0007
$25.76
92055
RING-O
92055-1156
$1.42
92055A
RING-O,FORK,AIR TUBE
92055-1333
$6.00
92055B
RING-O,FORK VALVE
92055-1502
$7.45
92072
BAND
92072-0930
$26.45
92072A
BAND
92072-1267
$20.92
92072B
BAND,OS170-FT7(BLACK)
92072-1414
$3.74
92093
SEAL,FORK OUTER TUBE
92093-1342
$18.72
92150
BOLT,FLANGED,8X40
92150-1446
$12.68
92153
BOLT,8X40
92153-0020
$5.59
92171
CLAMP
92171-1833
$8.44
130
BOLT-FLANGED,6X12
130BA0612
$1.72
130A
BOLT-FLANGED,6X8
130BB0608
$6.07
132
BOLT-FLANGED-SMALL,6X10
132BA0610
$1.71
