Description

Price

11061

GASKET,10.5X16X2

11061-0222

$5.60

14001

SET-CRANKCASE

14001-0728

$782.68

14067

FITTING,BREATHER

14067-006

$21.09

92001

BOLT,W/WASHER,6X14

92001-1829

$3.92

92022

WASHER,10.2X18X1.0,SK5

92022-1415

$4.69

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92045

BEARING-BALL,20X47X14

92045-0752

$30.42

92045A

BEARING-BALL,15X42X13

92045-0753

$17.52

92045B

BEARING-BALL,25X52X15

92045-0756

$32.01

92045C

BEARING-BALL,35X72X17

92045-0757

$35.21

92045D

BEARING-BALL,25X42X9

92045-0761

$27.56

92045E

BEARING-BALL,17X40X12

92045-0938

$25.37

92045F

BEARING-BALL,30X72X19

92045-0941

$30.46

92045G

BEARING-BALL,DG204012

92045-1414

$28.55

92049

SEAL-OIL,32X45X7.5

92049-0825

$22.10

92066

PLUG,DRAIN

92066-0143

$3.67

92143

COLLAR

92143-1263

$4.87

92150

BOLT,SOCKET,6X35

92150-1875

$5.29

92151

BOLT,6X50

92151-1234

$2.46

92154

BOLT,RETURN SPRING

92154-1306

$8.72

92173

CLAMP

92173-1715

$7.60

92173A

CLAMP

92173-2289

$3.26

92190

TUBE

92190-1493

$11.66

120

BOLT-SOCKET,6X50

120CC0650

$2.55

132

BOLT-FLANGED-SMALL

132BC0610

$1.97

132A

BOLT-FLANGED-SMALL,6X70

132BC0670

$3.90

172

BOLT-STUD,6X80

172BA0680

$2.82

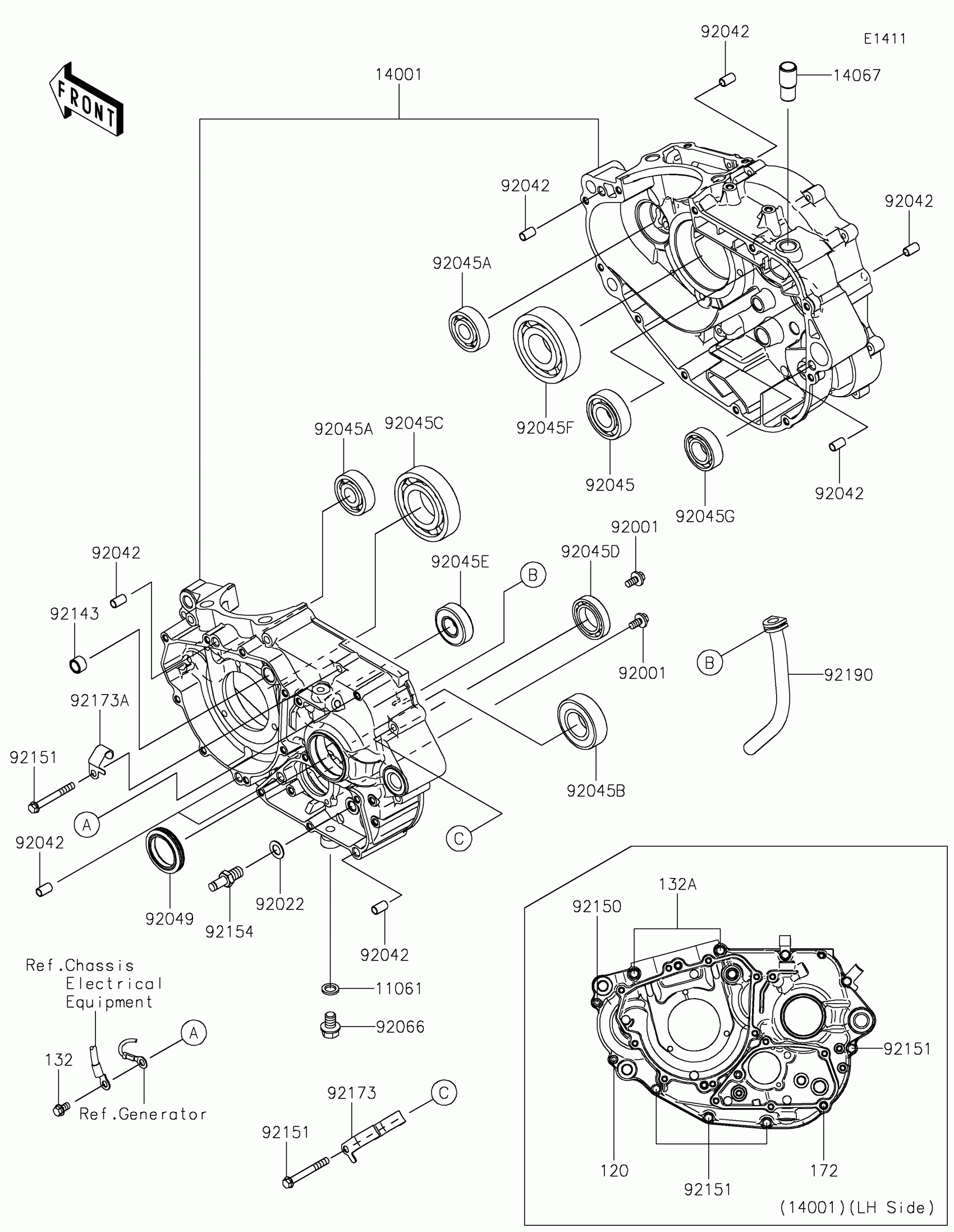

Kawasaki KLX®300 Crankcase Diagram

GASKET,10.5X16X2

SET-CRANKCASE

FITTING,BREATHER

BOLT,W/WASHER,6X14

WASHER,10.2X18X1.0,SK5

PIN,DOWEL,6.3X8X14

BEARING-BALL,20X47X14

BEARING-BALL,15X42X13

BEARING-BALL,25X52X15

BEARING-BALL,35X72X17

BEARING-BALL,25X42X9

BEARING-BALL,17X40X12

BEARING-BALL,30X72X19

BEARING-BALL,DG204012

SEAL-OIL,32X45X7.5

PLUG,DRAIN

COLLAR

BOLT,SOCKET,6X35

BOLT,6X50

BOLT,RETURN SPRING

CLAMP

CLAMP

TUBE

BOLT-SOCKET,6X50

BOLT-FLANGED-SMALL

BOLT-FLANGED-SMALL,6X70

BOLT-STUD,6X80
