2010 Kawasaki KLX®250SF Rear HUB Diagram

← All diagrams

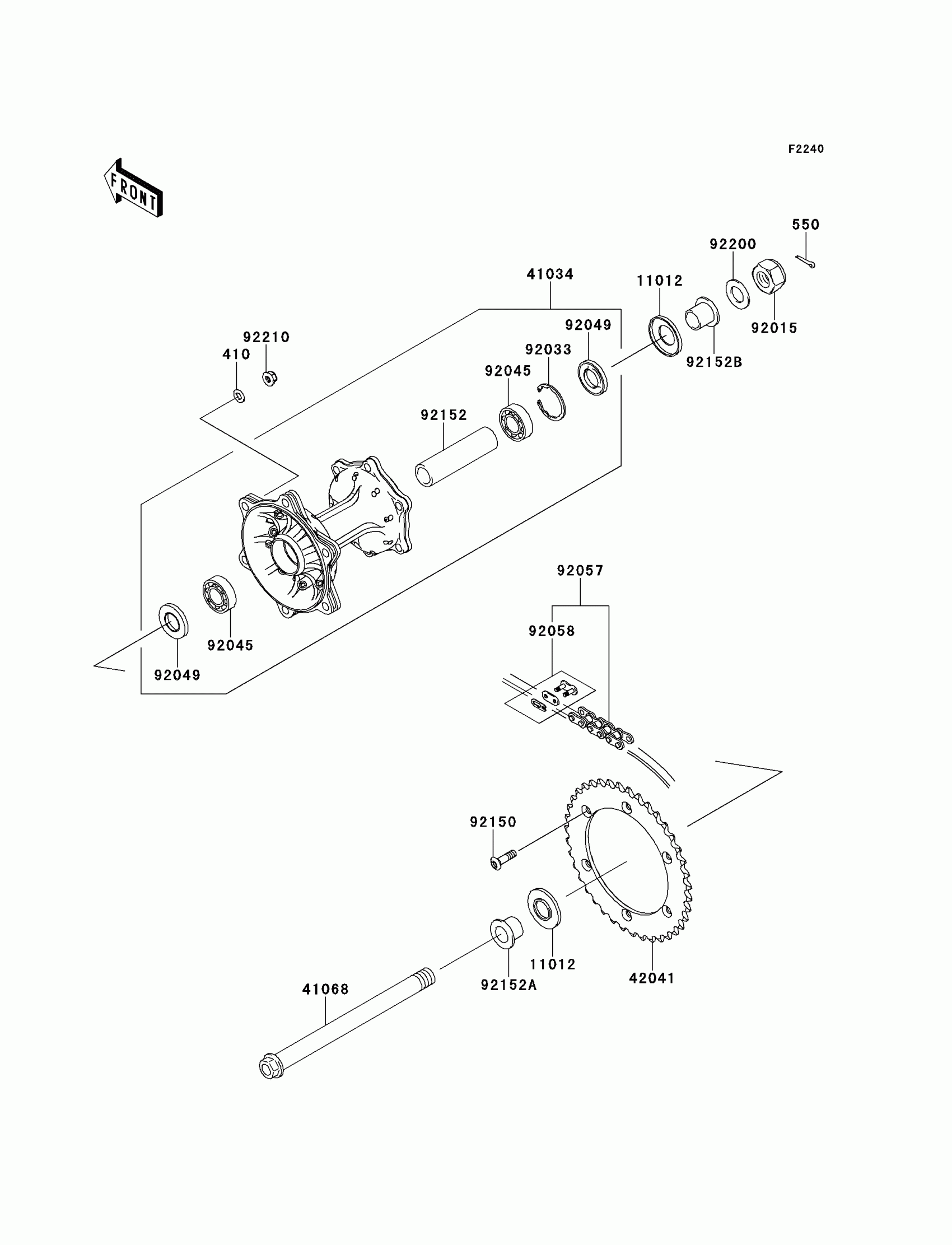

Find the part on the Rear HUB diagram for your 2010 Kawasaki KLX®250SF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki KLX®250SF Rear HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

WASHER-PLAIN-SMALL,8MM

410AA0800

1
Out of stock

550

PIN-COTTER,3.0X25

550AA3025

1
Out of stock

11012

CAP,AXLE

11012-1581

1
Out of stock

41034

1

$483.13

In stock

41068

AXLE,RR

41068-0066

1
Out of stock

42041

SPROCKET-HUB,39T

42041-1507

1
Out of stock

92015

NUT,LOCK,20MM

92015-1770

1
Out of stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92045

BEARING-BALL,6004X8JRLLX2/3A

92045-1239

1
Out of stock

92049

SEAL-OIL,BJNC2 25425

92049-1203

1
Out of stock

92057

CHAIN,DRIVE,EK520LV-OX104L

92057-1472

1
Out of stock

92058

JOINT-CHAIN,DRIVE,EK

92058-1070

1
Out of stock

92150

BOLT,SOCKET,8X28

92150-1978

1
Out of stock

92152

COLLAR,REAR BRAKE DRUM,L=105

92152-0529

1
Out of stock

92152A

COLLAR,RR AXLE,LH,L=22

92152-0734

1
Out of stock

92152B

COLLAR,RR AXLE,RH,L=20

92152-0735

1
Out of stock

92200

WASHER,20.2X36X2

92200-1146

1
Out of stock

92210

NUT,FLANGED,LOCK,8MM

92210-0493

1
Out of stock
