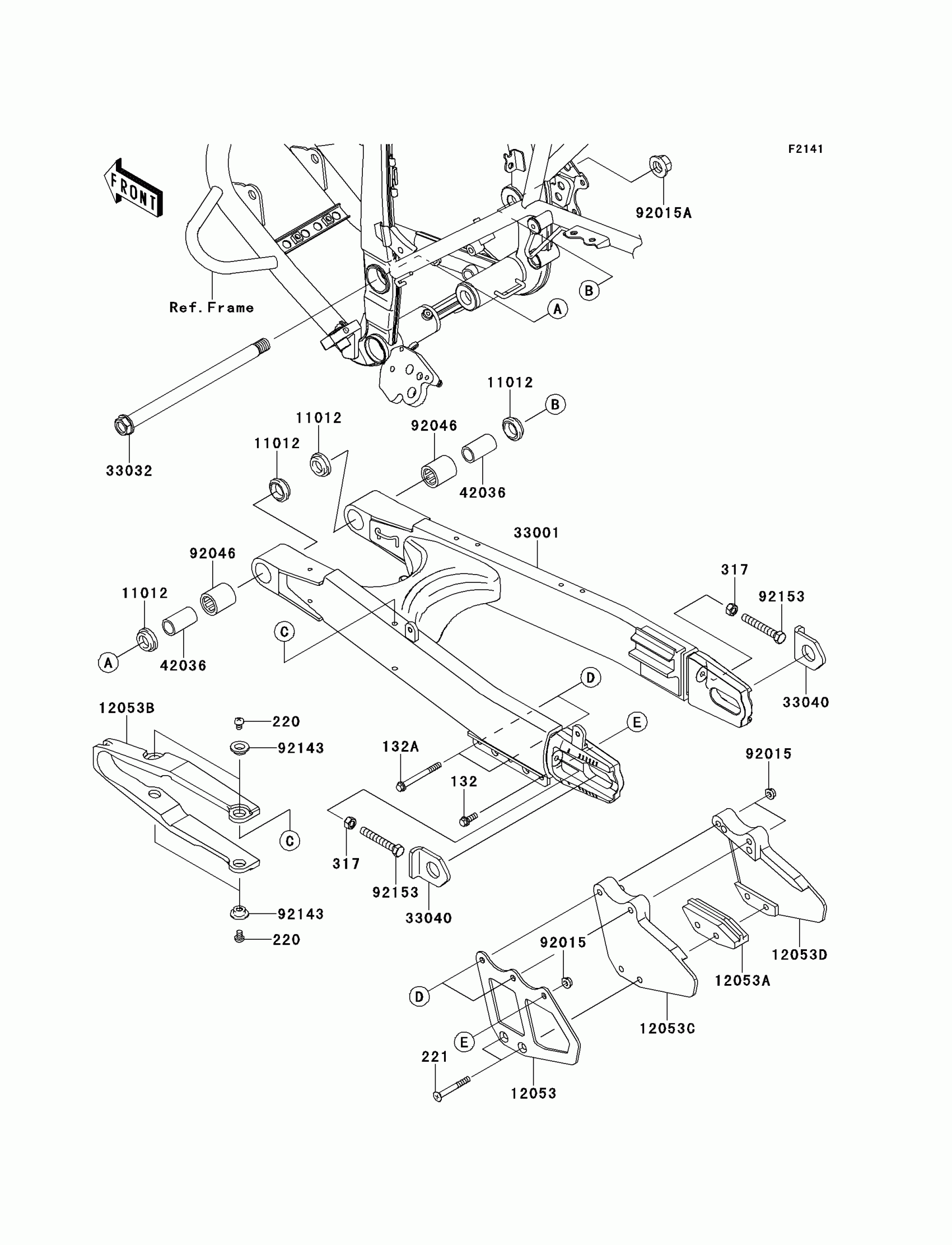

Kawasaki KLX®250SF Swingarm Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

132A

BOLT-FLANGED-SMALL,6X60

132BA0660

$3.69

220

SCREW-PAN-CROS,6X8

220AA0608

$0.54

221

SCREW-CSK-CROS,6X50

221AA0650

$3.69

317

NUT-HEX-SMALL,8MM

317BA0800

$1.24

11012

CAP,SWING ARM

11012-1259

$17.61

12053

GUIDE-CHAIN,RR,OUTSIDE

12053-1268

$30.83

12053A

GUIDE-CHAIN,DRIVE,RR,INSIDE

12053-1270

$39.88

12053B

GUIDE-CHAIN,DRIVE,FR

12053-1328

$49.57

12053C

GUIDE-CHAIN,DRIVE,RR,OUTSIDE

12053-1453

$56.33

12053D

GUIDE-CHAIN,DRIVE,RR,INSIDE

12053-1454

$56.33

33001

ARM-COMP-SWING,P.SILVER

33001-0176-458

$856.22

33032

SHAFT-SWING ARM

33032-0033

$57.05

33040

ADJUSTER-CHAIN

33040-0023

$8.10

42036

SLEEVE,SWING ARM

42036-1064

$19.97

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,14MM

92015-1407

$7.54

92046

BEARING-NEEDLE

92046-1128

$21.08

92143

COLLAR

92143-1156

$4.67

92153

BOLT,8X55

92153-1407

$1.57
