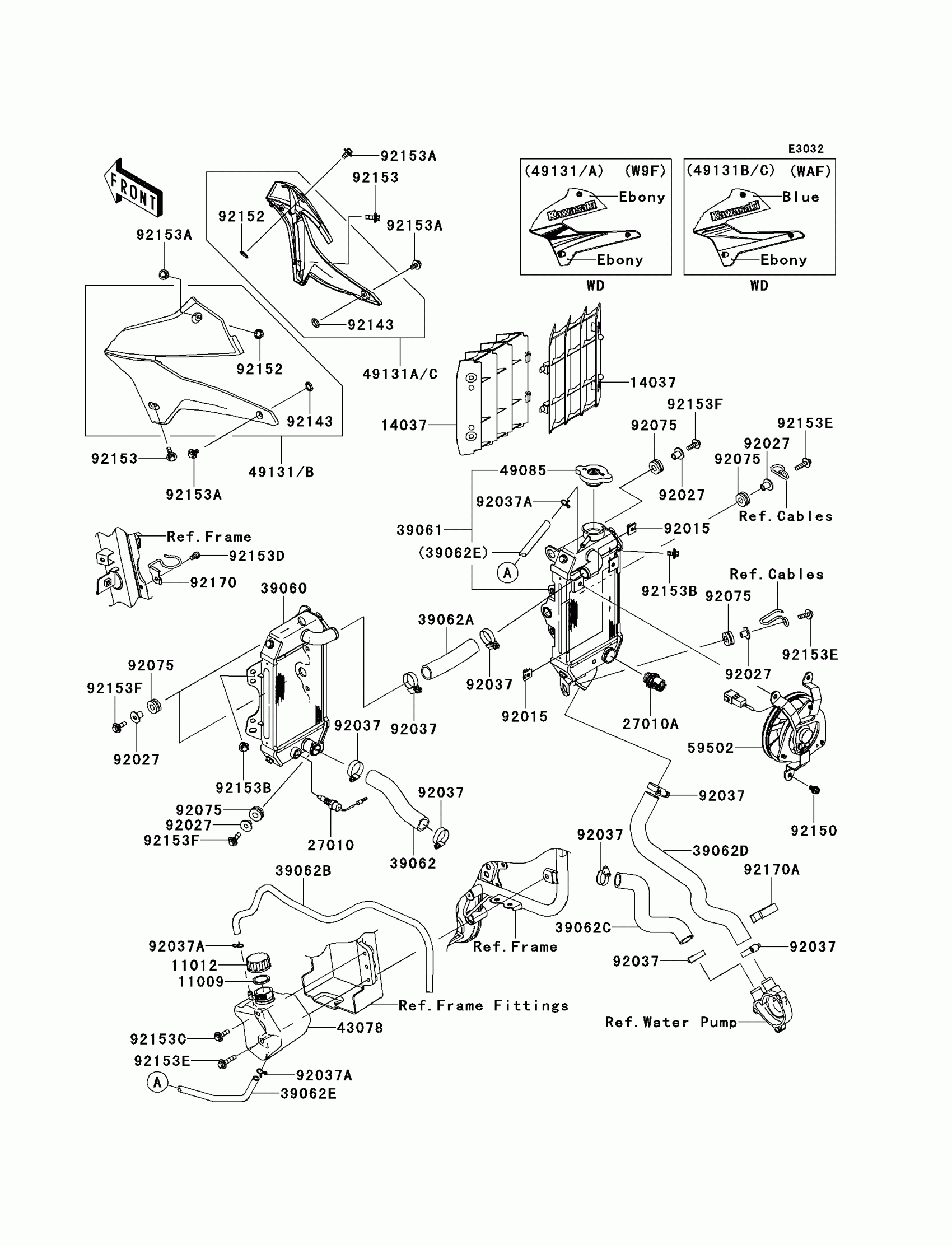

Kawasaki KLX®250SF Radiator Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
14037
SCREEN,EBONY
14037-0067-6C
$25.74
27010
SWITCH,WARNING
27010-1199
$138.23
27010A
SWITCH
27010-1443
$135.39
39060
RADIATOR
39060-0045
$341.73
39061
RADIATOR-ASSY
39061-0134
Unavailable
39062
HOSE-COOLING,HEAD-RAD.LH
39062-0199
$22.80
39062A
HOSE-COOLING,RAD.LH-RAD.RH
39062-0200
$22.80
39062B
HOSE-COOLING,OVERFLOW
39062-0204
$19.48
39062C
HOSE-COOLING,PUMP-CYLINDER
39062-1563
$28.82
39062D
HOSE-COOLING,RADIATOR-PUMP
39062-1564
$42.62
39062E
HOSE-COOLING,RESERVOIR
39062-1786
$14.66
43078
RESERVOIR
43078-0044
$47.52
49085
CAP-ASSY-PRESSURE,P1.1
49085-1070
$50.52
49131B
SHROUD-ENGINE,LH,BLUE/EBONY
49131-5291-25J
$119.26
49131C
SHROUD-ENGINE,RH,BLUE/EBONY
49131-5292-25J
$119.26
59502
FAN-ASSY
59502-0028
$569.98
92015
NUT
92015-1487
$4.80
92027
COLLAR,6.5X10X14.1
92027-1183
$5.52
92037
CLAMP,COOLING HOSE
92037-1589
$18.57
92037A
CLAMP
92037-1712
$5.00
92075
DAMPER RUBBER,RR FENR
92075-209
$4.69
92143
COLLAR
92143-1196
$4.69
92150
BOLT,6X12
92150-1186
$3.37
92152
COLLAR
92152-1235
$4.13
92153
BOLT,6X20
92153-0502
$2.80
92153A
BOLT,6X12
92153-0503
$2.80
92153B
BOLT,FLANGED,6X14
92153-0936
$2.97
92153C
BOLT,FLANGED,6X22
92153-0950
$3.90
92153D
BOLT,FLANGED,6X10
92153-1354
$2.61
92153E
BOLT,FLANGED,6X30
92153-1457
$3.39
92153F
BOLT,FLANGED-SMALL,6X22
92153-1560
$2.15
92170
CLAMP
92170-1357
$15.08
92170A
CLAMP
92170-1419
$5.52
