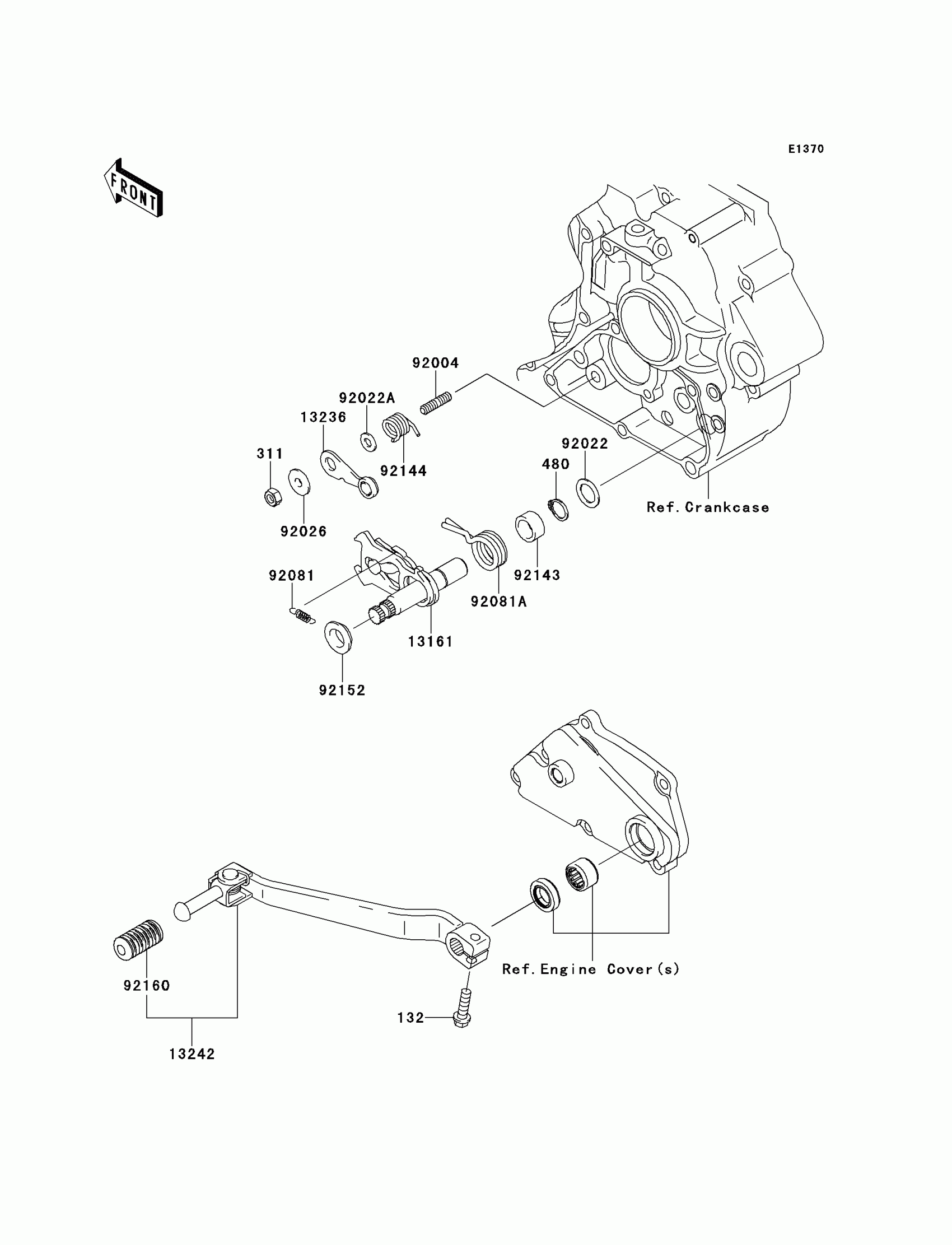

Kawasaki KLX®250SF Gear Change Mechanism Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$1.34

311

NUT-HEX,6MM

311BA0600

$2.23

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

13161

LEVER-COMP-CHANGE SHAFT

13161-1214

$64.83

13236

LEVER-COMP,NEUTRAL POSITION

13236-1209

$19.66

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1380

$56.62

92004

STUD,6X12

92004-0032

$1.79

92022

WASHER,13.3X20X1

92022-1496

$3.92

92022A

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-1217

$5.52

92081

SPRING,CHANGE LEVER

92081-076

$5.46

92081A

SPRING,TENSION

92081-1129

$9.43

92143

COLLAR

92143-1148

$4.69

92144

SPRING

92144-1695

$7.60

92152

COLLAR

92152-1075

$4.18

92160

DAMPER,CHANGE PEDAL

92160-1108

$8.10
