2010 Kawasaki KLX®250SF Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2010 Kawasaki KLX®250SF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

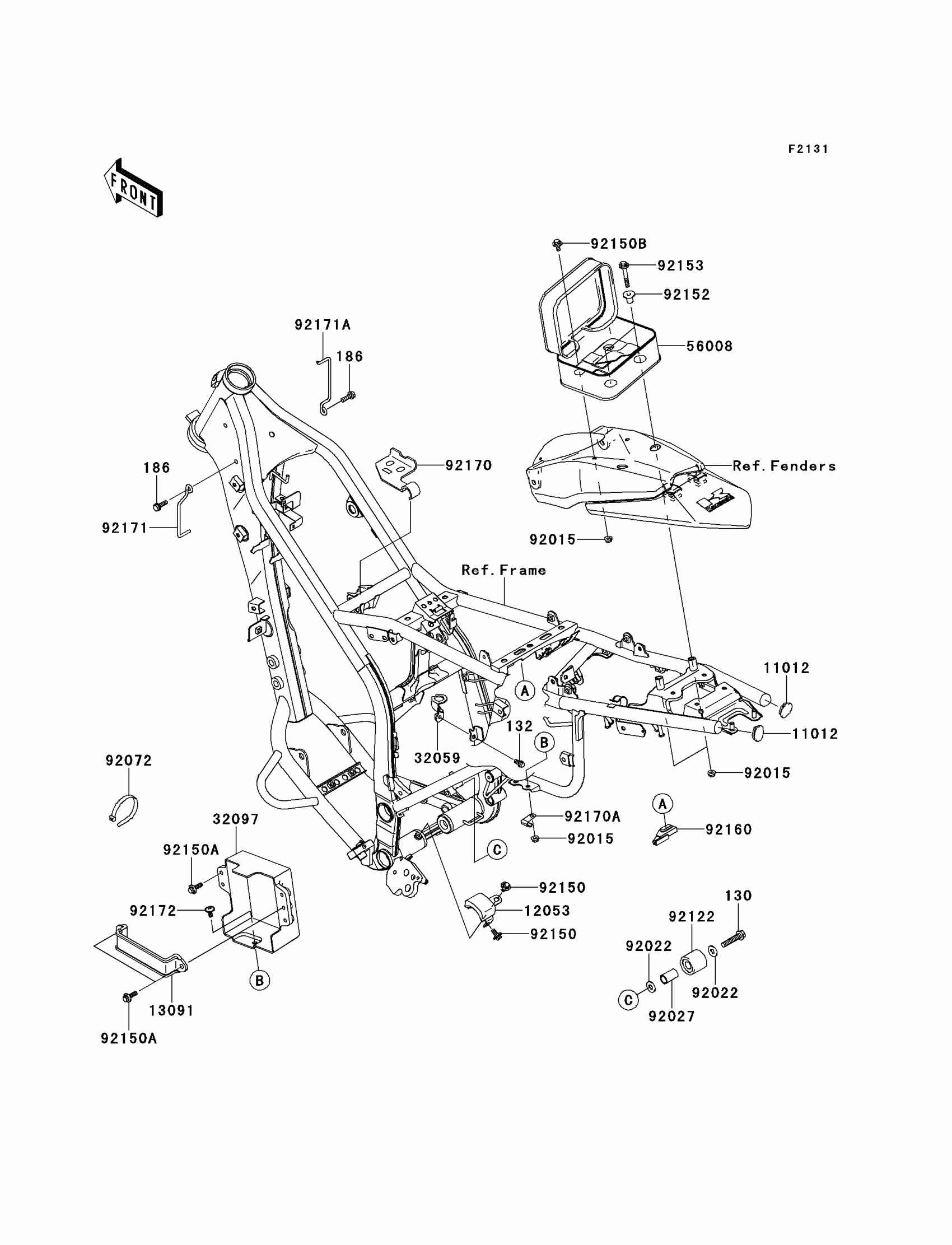

2010 Kawasaki KLX®250SF Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X40

130BA0840

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BB0612

1
Out of stock

186

BOLT-UPSET-WP,6X20

186BA0620

1
Out of stock

11012

CAP

11012-1369

1
Out of stock

12053

GUIDE-CHAIN

12053-0001

1
Out of stock

13091

HOLDER

13091-1875

1
Out of stock

32059

BRACKET-SWITCH,BRAKE

32059-1117

1
Out of stock

32097

CASE-BATTERY

32097-0001

1
Out of stock

56008

BAG,TOOL,BLACK

56008-0002-MA

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

92027

COLLAR,CHAIN ROLLER

92027-1670

1
Out of stock

92072

BAND,L=140

92072-1293

1
Out of stock

92122

ROLLER,CHAIN GUIDE

92122-1153

1
Out of stock

92150

BOLT,6X14

92150-1340

1
Out of stock

92150A

BOLT,FLANGED,6X22

92150-1481

1
Out of stock

92150B

BOLT,FLANGED,6X16

92150-1506

1
Out of stock

92152

COLLAR

92152-0604

1
Out of stock

92153

BOLT,6X45

92153-0003

1
Out of stock

92160

DAMPER

92160-1565

1
Out of stock

92170

CLAMP,HARNESS

92170-1423

1
Out of stock

92170A

CLAMP,HARNESS

92170-1900

1
Out of stock

92171

CLAMP,HARNESS,LH

92171-1775

1
Out of stock

92171A

CLAMP,HARNESS,RH

92171-1907

1
Out of stock

92172

SCREW,6X14

92172-0004

1
Out of stock
