2010 Kawasaki KLX®250SF Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2010 Kawasaki KLX®250SF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

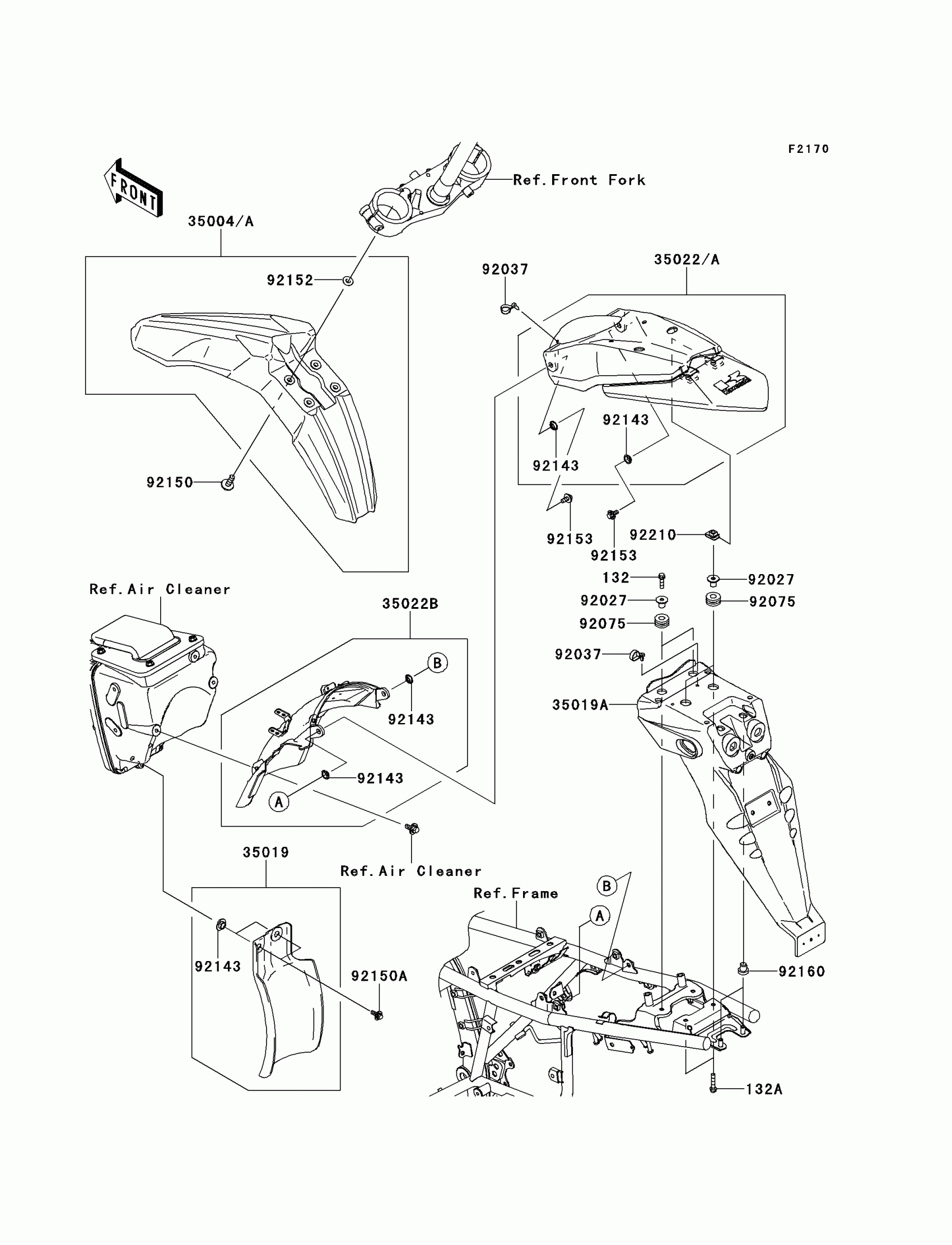

2010 Kawasaki KLX®250SF Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X22

132BB0622

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132BB0630

1
Out of stock

35004

FENDER-FRONT,O.BLUE

35004-0087-274

1
Out of stock

35019

FLAP,RR FENDER,FR

35019-0004

1
Out of stock

35019A

FLAP,RR

35019-0056

1
Out of stock

35022

FENDER-COMP-REAR,RR,O.BLUE

35022-0039-274

1
Out of stock

35022B

FENDER-COMP-REAR,FR

35022-0058

1
Out of stock

92027

COLLAR,6.5X10X14.1

92027-1183

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92143

COLLAR

92143-1196

1
Out of stock

92150

BOLT,6X20

92150-1339

1
Out of stock

92150A

BOLT,FLANGED,6X16

92150-1506

1
Out of stock

92152

COLLAR

92152-0427

1
Out of stock

92153

BOLT,6X20

92153-1523

1
Out of stock

92160

DAMPER

92160-1303

1
Out of stock

92210

NUT,6MM

92210-0474

1
Out of stock
