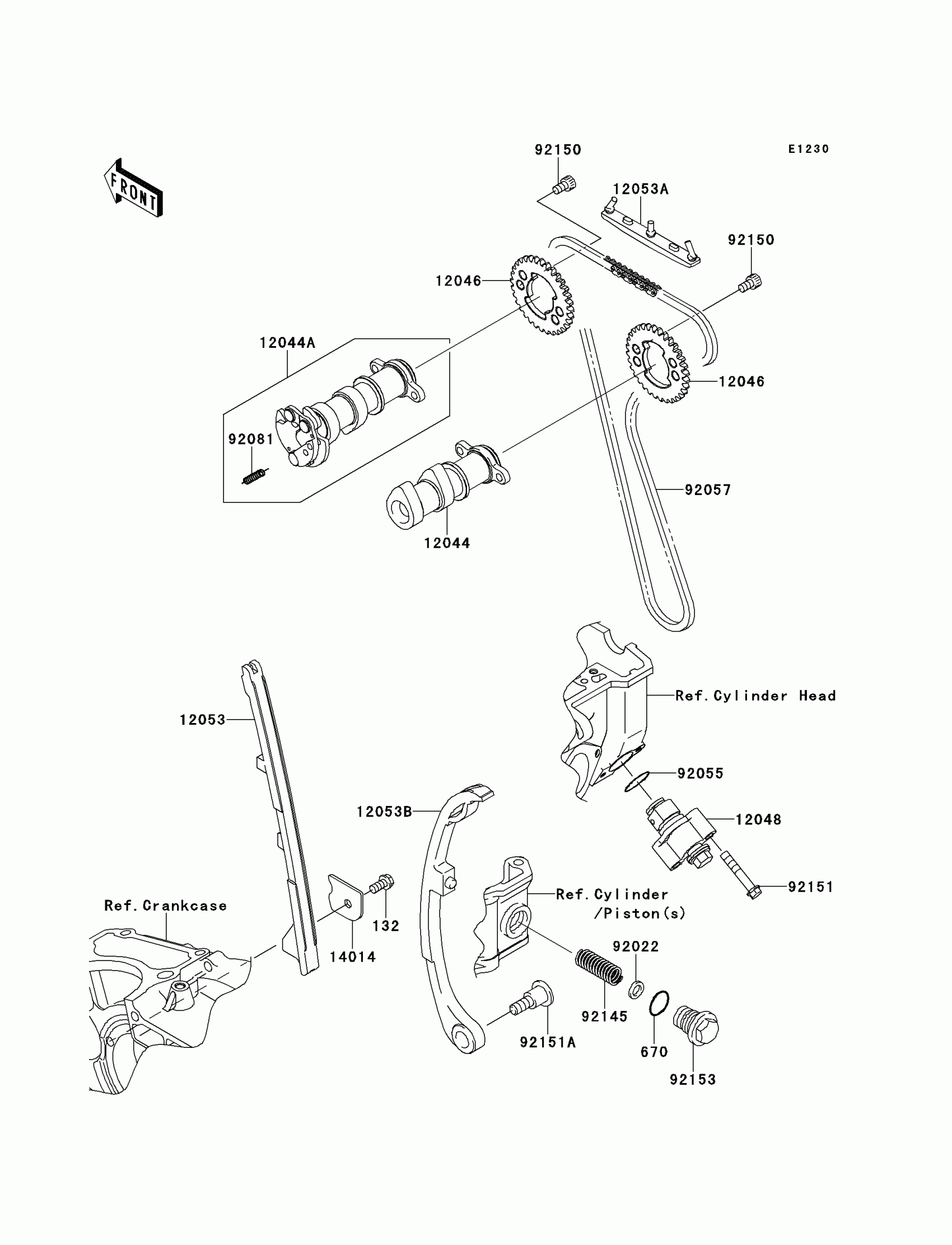

Kawasaki KLX®250SF Camshaft(s)/Tensioner Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

670

O RING,18MM

670B2018

$1.08

12044

CAMSHAFT-VALVE,INTAKE

12044-1327

$273.07

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1365

Unavailable

12046

SPROCKET,CAMSHAFT,32T

12046-0001

$36.84

12048

TENSIONER-ASSY

12048-0054

$121.52

12053

GUIDE-CHAIN,FR

12053-1315

$52.84

12053A

GUIDE-CHAIN,UPP

12053-1317

$10.19

12053B

GUIDE-CHAIN,RR

12053-1391

$79.35

14014

PLATE-POSITION

14014-1130

$4.15

92022

WASHER,8.5X13.5X2

92022-1108

$3.85

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,CAM,92RH2010

92057-1416

Unavailable

92081

SPRING,DECOMPRESSOR

92081-1626

Unavailable

92145

SPRING,TENSIONER

92145-0367

$7.47

92150

BOLT,SOCKET,6X10

92150-1650

$3.85

92151

BOLT,6X35

92151-1135

$3.19

92151A

BOLT,L=30

92151-1154

$23.69

92153

BOLT,TENSIONER

92153-0650

$2.15
