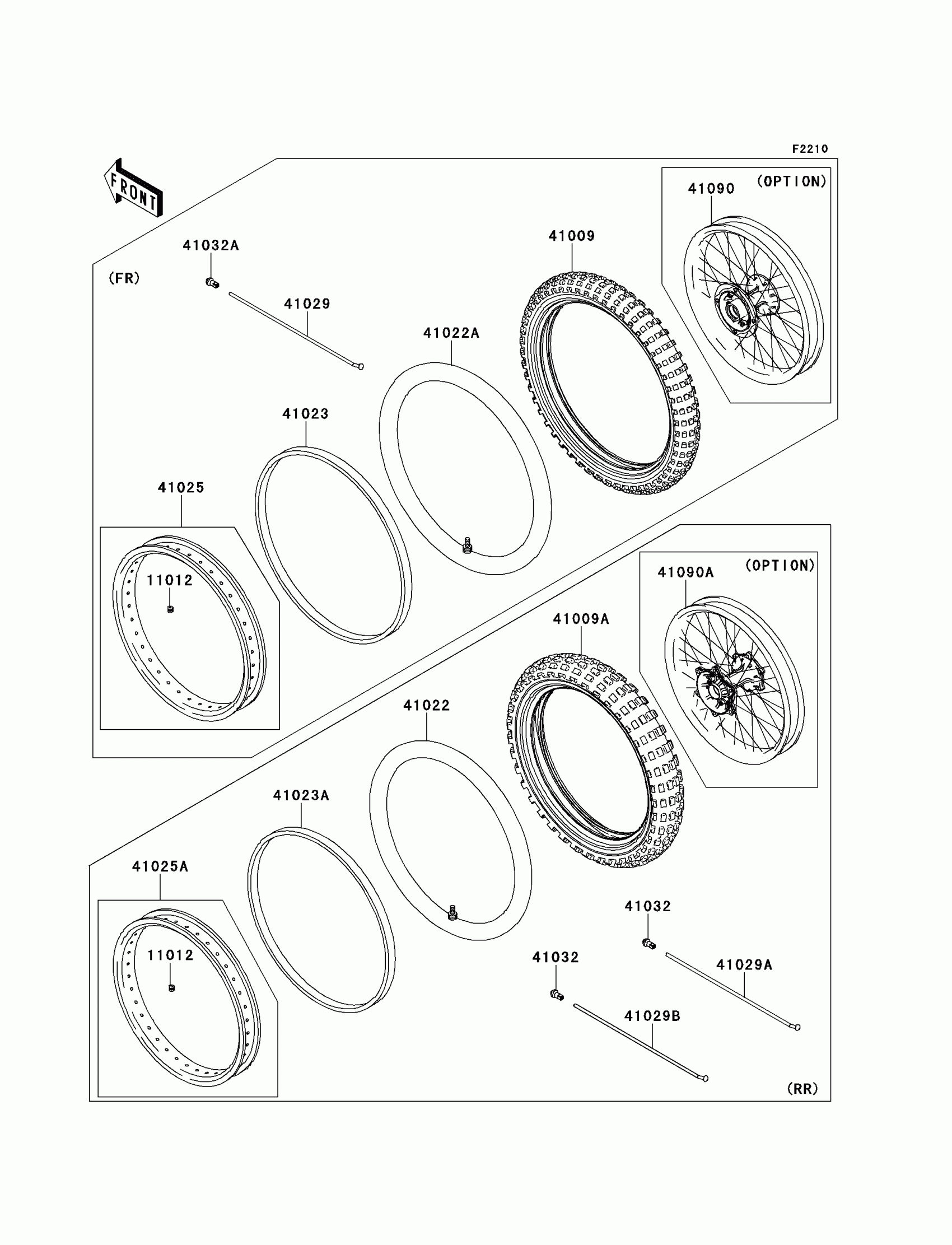

Kawasaki KLX®250S Wheels/Tires Diagram

CAP,BEAD STOPPER

11012-1670

$2.60

TIRE,FR,3.00-21 51P,D605 FG(D)

41009-0025

$144.88

TIRE,RR,4.60-18 63P,D605G(D)

41009-0026

$150.12

TUBE-TIRE,120/80-18(D)

41022-0004

$39.96

TUBE-TIRE,FR,80/100-21(D)

41022-1244

$51.36

BAND-RIM,21XWM1.60-1.85(D)

41023-1144

$14.47

BAND-RIM,18XWM/MT 1.85-2.15(D)

41023-1145

$14.47

RIM,FR,1.60X21,SILVER

41025-1364-WA

Unavailable

RIM,RR,2.15X18,SILVER

41025-1366-WA

Unavailable

SPOKE-INNER,FR,228MMX165D

41029-0004

$4.33

SPOKE-INNER,RR,LH,193.1MMX165D

41029-0047

$5.46

SPOKE-INNER,RR,RH,189.1MMX160D

41029-0048

$5.46

NIPPLE-SPOKE

41032-0007

$3.26

NIPPLE-SPOKE

41032-1075

Unavailable

WHEEL-SUB ASSY,FR,SILVER

41090-0041-WA

$719.76

WHEEL-SUB ASSY,RR,SILVER

41090-0042-WA

$838.43
