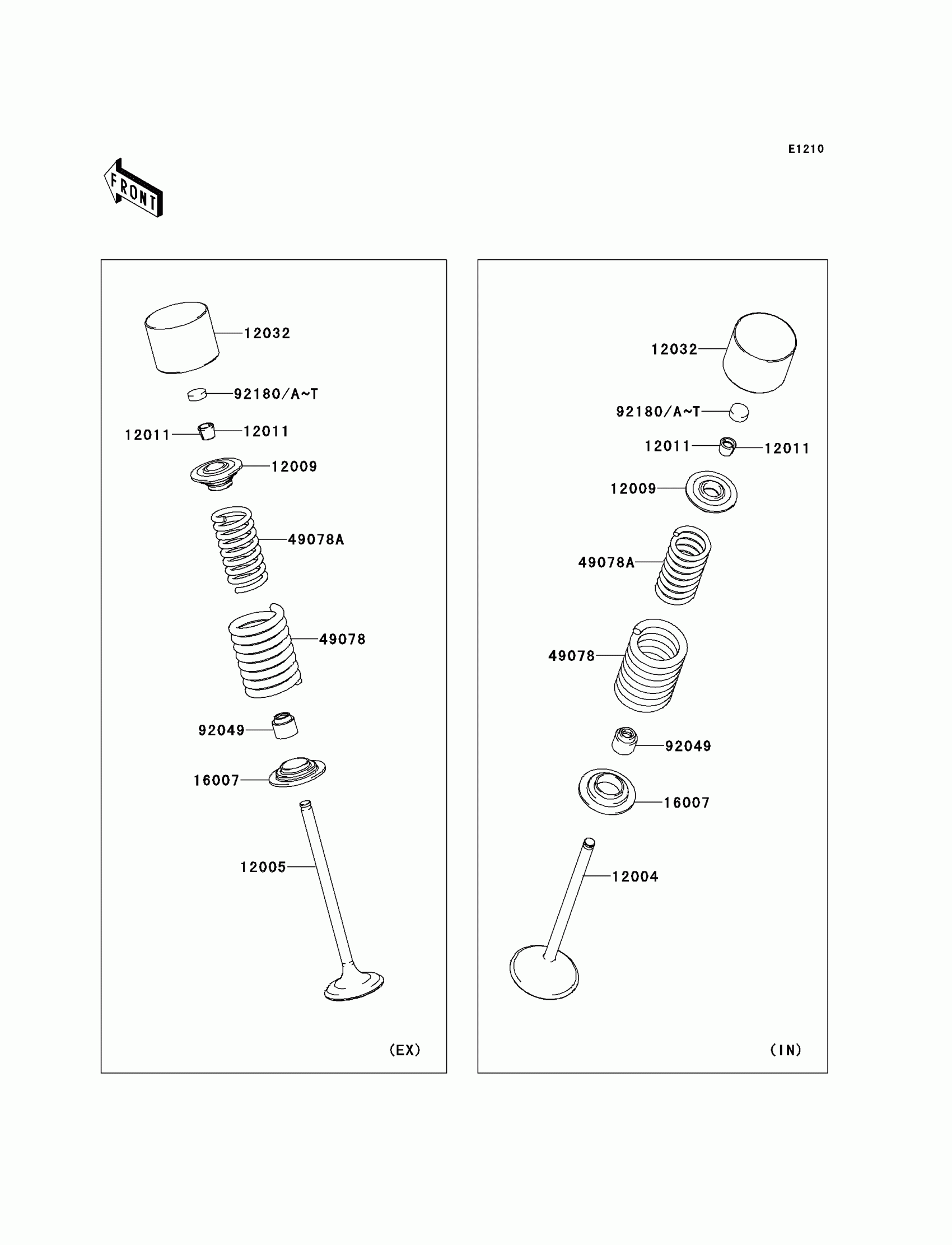

Kawasaki KLX®250S Valve(s) Diagram
#
12004
VALVE-INTAKE
12004-1111
Unavailable
12005
VALVE-EXHAUST
12005-0029
Unavailable
12009
RETAINER-VALVE SPRING
12009-1069
$10.65
12011
COLLET
12011-1053
$5.46
12032
TAPPET
12032-1058
$48.62
16007
SEAT-SPRING
16007-1163
$25.03
49078
SPRING-ENGINE VALVE,OUTER
49078-1094
$14.76
49078A
SPRING-ENGINE VALVE,INNER
49078-1114
$14.76
92049
SEAL-OIL,VSB 4.3 7.5 5.3 8.3
92049-1349
$11.53
92180
SHIM,T=2.50
92180-1014
$18.15
92180A
SHIM,T=2.55
92180-1016
Unavailable
92180B
SHIM,T=2.60
92180-1018
Unavailable
92180C
SHIM,T=2.65
92180-1020
Unavailable
92180D
SHIM,T=2.70
92180-1022
Unavailable
92180E
SHIM,T=2.75
92180-1024
Unavailable
92180F
SHIM,T=2.80
92180-1026
Unavailable
92180G
SHIM,T=2.85
92180-1028
Unavailable
92180H
SHIM,T=2.90
92180-1030
Unavailable
92180I
SHIM,T=2.95
92180-1032
Unavailable
92180J
SHIM,T=3.00
92180-1034
Unavailable
92180K
SHIM,T=3.05
92180-1036
Unavailable
92180L
SHIM,T=3.10
92180-1038
Unavailable
92180M
SHIM,T=3.15
92180-1040
Unavailable
92180N
SHIM,T=3.20
92180-1042
Unavailable
92180O
SHIM,T=3.25
92180-1044
Unavailable
92180P
SHIM,T=3.30
92180-1046
Unavailable
92180Q
SHIM,T=3.35
92180-1048
Unavailable
92180R
SHIM,T=3.40
92180-1050
Unavailable
92180S
SHIM,T=3.45
92180-1052
Unavailable
92180T
SHIM,T=3.50
92180-1054
Unavailable
