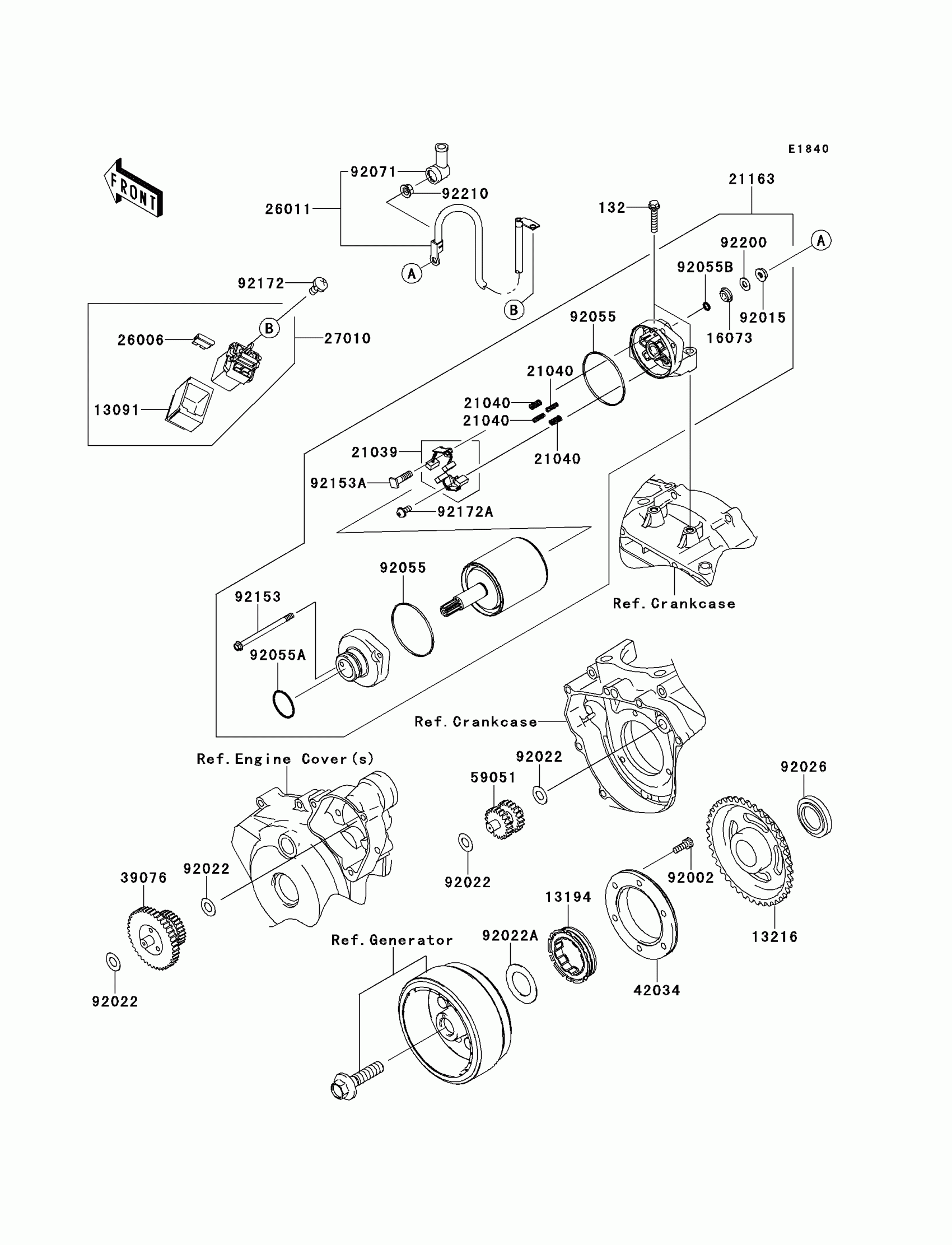

Kawasaki KLX®250S Starter Motor Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X30

132BC0630

$2.15

13091

HOLDER,SWITCH

13091-1883

$7.60

13194

CLUTCH-ONEWAY

13194-1091

Unavailable

13216

GEAR-COMP,ONEWAY CLUTCH

13216-1148

$195.45

16073

INSULATOR

16073-0053

$11.93

21039

BRUSH,CARBON

21039-0004

$117.72

21040

SPRING-BRUSH

21040-0003

$9.79

21163

STARTER-ELECTRIC

21163-0046

$494.71

26006

FUSE,BLADE,20A,YELLOW

26006-1051

$4.96

26011

WIRE-LEAD,STARTER

26011-0782

$22.38

27010

SWITCH

27010-1336

Unavailable

39076

LIMITER,STARTER IDLE GEAR

39076-0020

$183.19

42034

COUPLING

42034-0048

$117.33

59051

GEAR-SPUR,IDLE

59051-1304

$89.00

92002

BOLT,SOCKET,6X16

92002-1778

$5.00

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,10.2X20X0.5

92022-1649

$4.31

92022A

WASHER,27.2X44X1.0

92022-1781

$6.34

92026

SPACER

92026-1450

$19.96

92055

RING-O

92055-0136

$7.75

92055A

RING-O

92055-1276

$9.91

92055B

RING-O,4.5X2.0

92055-1370

$4.69

92071

GROMMET

92071-0705

$6.89

92153

BOLT

92153-1850

$11.93

92153A

BOLT

92153-1866

$4.65

92172

SCREW-PAN-WS-CROS,5X10

92172-0234

$2.15

92172A

SCREW

92172-0334

$4.65

92200

WASHER

92200-0386

$4.65

92210

NUT,6MM

92210-0188

$2.15
