2014 Kawasaki KLX®250S Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2014 Kawasaki KLX®250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

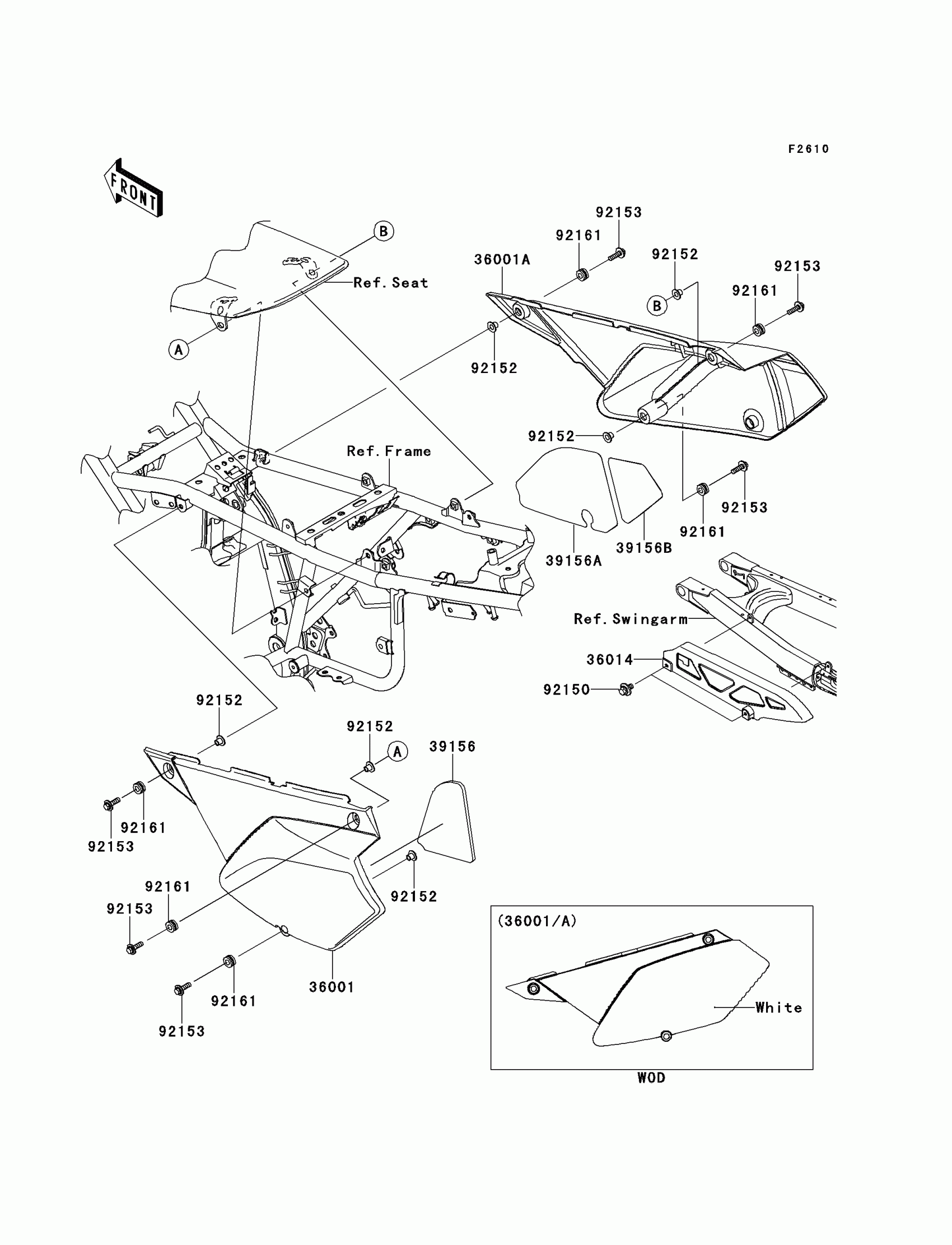

2014 Kawasaki KLX®250S Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,B.WHITE

36001-0173-266

1
Out of stock

36001A

COVER-SIDE,RH,B.WHITE

36001-0175-266

1

$49.76

In stock

36014

CASE-CHAIN

36014-0050

1

$93.19

In stock

39156

PAD,SIDE COVER,LH

39156-0197

1

$7.42

In stock

39156A

PAD,SIDE COVER,RH

39156-0198

1

$27.07

In stock

39156B

PAD,SIDE COVER,RH

39156-0199

1

$15.34

In stock

92150

BOLT,6X12

92150-1435

1
Out of stock

92152

COLLAR,6.3X8.3X9.2

92152-0237

1
Out of stock

92153

BOLT,FLANGED,6X22

92153-0950

1
Out of stock

92161

DAMPER,8X16X8.6

92161-0685

1
Out of stock
